SP750 Infusion Pump | Volumetric IV Pump with High Accuracy & Safety Alarms #

SP750 Infusion Pump | Volumetric IV Pump with High Accuracy & Safety Alarms #

$399.00
$399.00
Sale Sold out
Shipping calculated at checkout.

Volumetric infusion pump with high-accuracy flow control (0.02ml sensor), adjustable occlusion alarms, KVO function, and dual power supply. Ideal for hospitals and clinics requiring precise IV drug delivery.

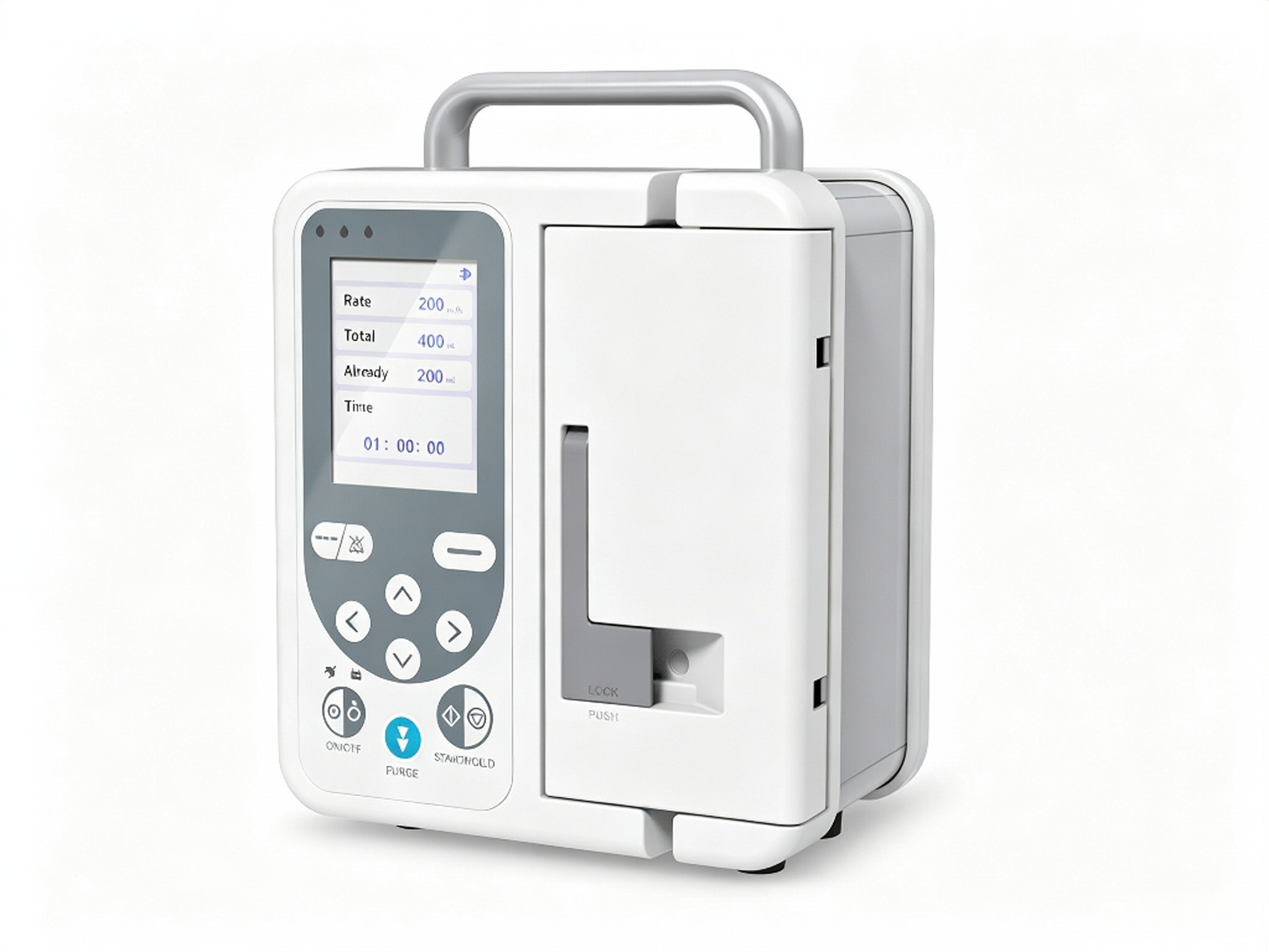

The CONTEC SP750 Infusion Pump is a reliable volumetric infusion pump designed for precise and safe intravenous drug delivery in clinical settings. Engineered with high-accuracy flow control, a comprehensive alarm system, and an intuitive 2.8" TFT LCD interface, the SP750 ensures optimal therapeutic outcomes while minimizing clinical risks.

Whether you're managing routine IV therapy or complex medication protocols, the SP750 delivers the accuracy, safety, and ease of use that healthcare professionals demand. Its robust construction and long-life design make it a cost-effective choice for hospitals, clinics, and medical institutions worldwide.

This device is intended for use by medical staff in clinical settings. It is not intended for transport or ambulatory use.

Key Features

🎯 High-Accuracy Infusion Control

The SP750 features a high-accuracy (0.02 ml) ultrasonic sensor that ensures precise fluid delivery. The pump is compatible with most standard IV sets and supports calibration for new IV sets to maintain accuracy. Flow control with high accuracy ensures optimum therapeutic effect and patient safety.

🚨 Comprehensive Safety Alarms

Patient safety is paramount with the SP750's audible and visual alarm system:

  • Occlusion alarm – Detects line blockages with adjustable pressure threshold (3 grades)

  • Air bubble alarm – Prevents air embolism

  • Door open alarm – Ensures secure operation

  • Motor failure alarm – Immediate notification of mechanical issues

🔄 Free Flow Protection

The SP750 features automatic avoidance of free flow condition, preventing unintended liquid flow when the pump door is opened. This critical safety feature protects patients from uncontrolled medication delivery.

⏱️ KVO (Keep Vein Open) Function

After infusion is completed, the pump automatically operates at KVO rate to maintain venous access and prevent blood backflow.

🖥️ Intuitive 2.8" TFT LCD Display

The 2.8" TFT LCD screen displays real-time parameters including accumulated volume and remaining infusion time. The user-friendly interface makes setup and monitoring straightforward for clinical staff.

🔋 Intelligent Dual-Power Supply

The SP750 features intelligent dual-way power supply with both AC and a built-in high-capacity lithium battery. This ensures uninterrupted operation during power outages and patient transport within clinical settings.

💾 Parameter Memory & Reminder Functions

  • Infusion parameters are saved after shutdown – No need to reprogram for recurring protocols

  • Infusion reminder function – Alerts staff when infusion is about to start or complete

  • Purging function – For filling the infusion line and exhausting air

🔧 Flexible Infusion Modes

The SP750 supports multiple infusion modes to accommodate various clinical requirements:

  • Rate Mode – Standard flow rate control

  • Drip Mode – Drip rate-based delivery

  • Time Mode – Time-based infusion

  • Body Weight Mode – Weight-based dosing (optional)

  • Drug Library Mode – Pre-set drug protocols (optional)

Specifications



Feature Specification
Product Type Volumetric Infusion Pump
Model SP750
Display 2.8" TFT LCD
Infusion Rate 1–699 ml/h (increment: 1 ml/h)
Total Volume Up to 9999 ml
Accuracy ±5% (with calibrated IV set)
Flow Sensor Ultrasonic, 0.02 ml high accuracy
Alarm Types Occlusion (adjustable 3 grades), air bubble, door open, motor failure
Power Supply AC 100V–240V, 50/60Hz + Built-in lithium battery
Dimensions 197mm(L) × 145mm(W) × 135mm(H)
Battery Capacity 3500 mAh
Safety Features Free flow prevention, KVO function, occlusion threshold adjustment
Intended Use Adult patients (18+ years) requiring controlled IV drug infusion
Not Intended For Blood transfusion, insulin, analgesics, chemotherapeutic drugs, or epidural anesthesia
Certifications CE, FDA

Why Choose the SP750?



Basic IV Pumps CONTEC SP750
Basic flow control High-accuracy 0.02ml ultrasonic sensor
Fixed occlusion alarm Adjustable 3-grade occlusion threshold
No free flow protection Automatic free flow prevention
No KVO function Automatic KVO after infusion completion
Basic display 2.8" TFT LCD with real-time parameters
AC only AC + built-in rechargeable battery
No parameter memory Parameters saved after shutdown

What's Included

  • SP750 Infusion Pump Main Unit

  • Power Cord (AC Adapter)

  • IV Set Holder / Pole Clamp

  • Built-in Rechargeable Lithium Battery

  • User Manual

  • Quick Start Guide

Applications

The SP750 Infusion Pump is suitable for:

  • Hospitals – General wards, ICUs, surgical departments

  • Clinics – Outpatient infusion therapy

  • Medical Institutions – Controlled intravenous drug delivery

  • Adult Patients (18+ years) – Requiring precise IV medication administration

FAQ

Q: What is the SP750 Infusion Pump?
A: The SP750 is a volumetric infusion pump designed for precise and safe intravenous drug delivery in clinical settings.

Q: What is the infusion rate range?
A: The SP750 supports an infusion rate of 1–699 ml/h with 1 ml/h increments.

Q: How accurate is the SP750?
A: The pump features a high-accuracy (0.02 ml) ultrasonic sensor and achieves ±5% accuracy when using calibrated IV sets.

Q: What alarms does the SP750 have?
A: The pump includes alarms for occlusion (adjustable 3 grades), air bubble, door open, and motor failure.

Q: Does the SP750 have a battery?
A: Yes. The SP750 features intelligent dual-power supply with both AC and a built-in high-capacity lithium battery for uninterrupted operation.

Q: What is the KVO function?
A: After infusion is completed, the pump automatically operates at KVO (Keep Vein Open) rate to maintain venous access and prevent blood backflow.

Q: What patient populations is the SP750 suitable for?
A: The SP750 is intended for adult patients (18 years and older) requiring controlled intravenous drug infusion.

Q: What should the SP750 NOT be used for?
A: The SP750 should not be used for blood transfusion, insulin infusion, analgesics, chemotherapeutic drugs, or epidural anesthesia.
