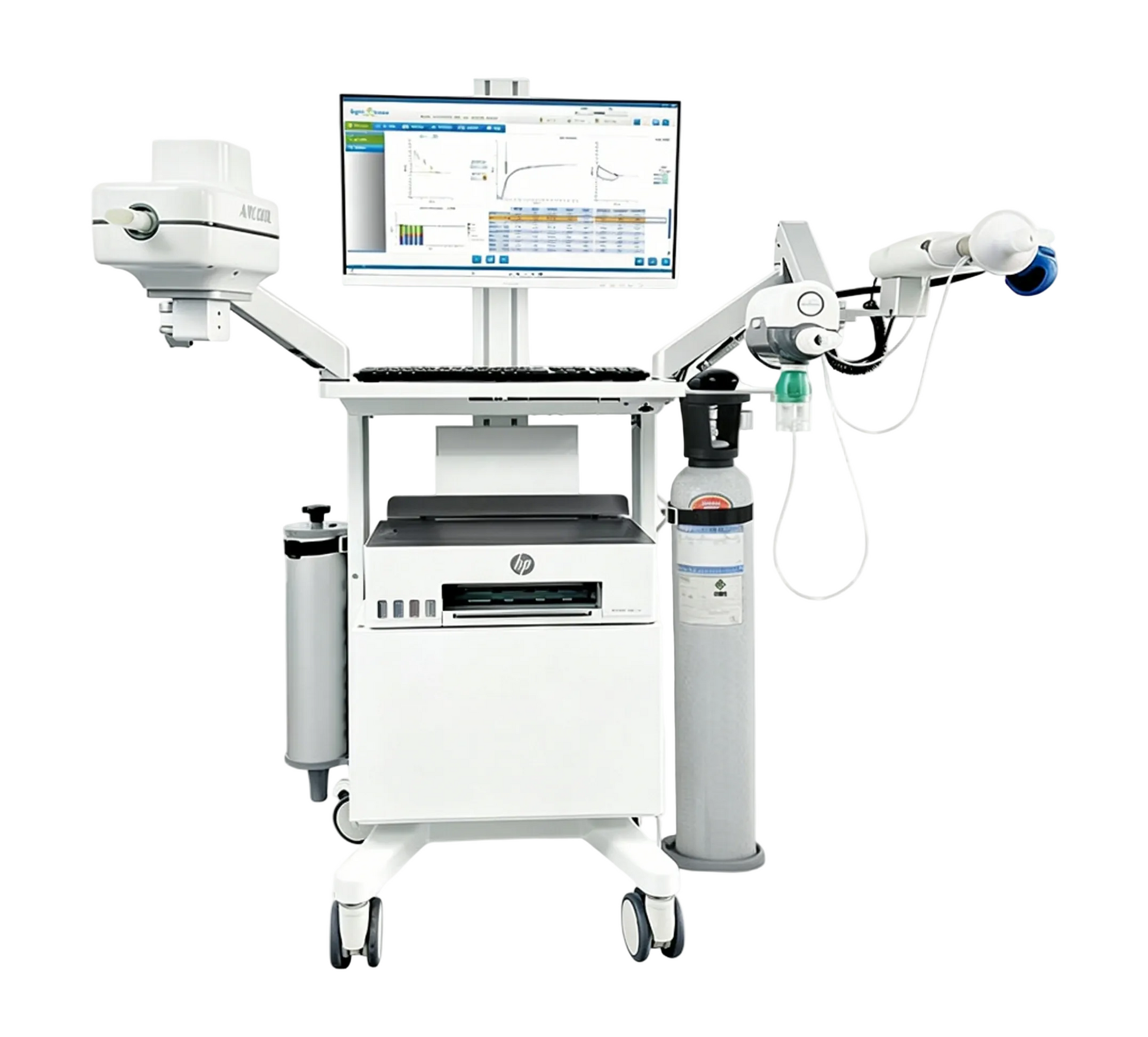

SpiroPower DLco Pro PFT System | All-in-One Pulmonary Function Testing with DLco

All-in-one comprehensive PFT system with DLco, spirometry, bronchial provocation, and dilation testing. Ultrasonic sensor, zero calibration, infection‑free RECO design, and imported NDIR gas analyzer. Ideal for hospitals and respiratory specialty centers.

The Global Healthcare Medical SpiroPower DLco Pro All-in-One Comprehensive Pulmonary Function Testing System is the most advanced and complete pulmonary function diagnostic platform in the SpiroPower series. This single, integrated system achieves complete pulmonary function testing—including spirometry (Flow‑Volume Loop, FVC, SVC, MVV), bronchial dilation testing, bronchial provocation testing, and single‑breath CO diffusion capacity (DLco) —covering virtually all functions of pulmonary testing.

The SpiroPower DLco Pro is a modular, scalable system that combines ultrasonic flow sensor technology, infrared spectroscopy absorption technology, and continuous pulse oscillation technology on a single platform. It delivers comprehensive coverage from routine ventilation function testing to complex respiratory mechanics analysis. Whether you're diagnosing COPD, asthma, interstitial lung disease, or evaluating pre‑surgical risk, the SpiroPower DLco Pro provides the complete pulmonary function diagnostic solution you need—all in one system.

This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

🫁 Complete Pulmonary Function Testing – One Machine, All Functions

The SpiroPower DLco Pro is a truly all‑in‑one comprehensive pulmonary function diagnostic system. It integrates every major pulmonary function test into a single, seamless platform:

This comprehensive coverage means clinicians can perform a full range of pulmonary function assessments without needing multiple devices—streamlining workflow, reducing costs, and improving diagnostic efficiency.

🔬 Patented Ultrasonic Flow Sensor Technology

The SpiroPower DLco Pro is equipped with a durable, high‑sensitivity ultrasonic transducer that offers zero flow resistance, excellent repeatability, and is unaffected by water vapor. The dual‑channel ultrasonic time‑of‑flight method achieves accuracy of ±2% and is suitable for patients of all ages—from children to the elderly. Unlike traditional pneumotachographs, the ultrasonic sensor requires no calibration during its lifetime.

✅ Calibration‑Free Operation

The SpiroPower DLco Pro is a fully digital pulmonary function testing device that requires no mechanical reset and automatically completes zero calibration. This eliminates daily calibration procedures, reduces operator error, and saves valuable clinical time—especially critical in busy hospital and specialty clinic settings.

🛡️ RECO Design for Complete Infection Control

The device features a unique RECO (Respiratory Exchange Circuit Optimization) design for disposables. With no common breathing circuit between patients and the mouthpiece RECO design providing double protection, the risk of cross‑infection is completely eliminated. This makes the SpiroPower DLco Pro safe for use in infectious disease wards and during respiratory outbreaks.

🫁 Advanced DLco Testing with Imported NDIR Gas Analyzer

The SpiroPower DLco Pro features an imported professional infrared (NDIR) gas analyzer that enables fast and accurate measurement. Diffusion capacity (DLco) measures how well oxygen and carbon dioxide are transferred between the lungs and the blood, making it essential for diagnosing and monitoring interstitial lung disease, emphysema, pulmonary vascular disease, and COPD. DLco is also a critical predictor of how well a patient will tolerate lung surgery.

🧪 Imported On‑Demand Valve – No Cumbersome Gas Collection Bags

The SpiroPower DLco Pro incorporates an imported professional on‑demand valve that abandons the cumbersome gas collection bag and complicated breathing line. This innovative design enables easy and quick gas administration, streamlining the testing process and improving patient comfort.

📏 Low Dead Space for Accurate Low‑Flow Testing

The SpiroPower DLco Pro features lower dead space volume, making it particularly suitable for low‑flow and low‑volume measurements—essential for accurate testing in pediatric, elderly, and weak‑breathing patients.

✅ ATS/ERS Compliant & ISO Verified

The device meets ATS/ERS international standards and has been verified by the ATS24/26 curve and the A, B, and C curves of the international standard ISO, ensuring uncompromised accuracy and reliability.

📋 Free Customization of Report Templates

Support customized report parameters, tables, curves, shape drawing, and other combination functions. You can customize the printing paper size and report layout to meet your clinical needs.

🔗 Data Communication & Automatic Patient Information

• Synchronise the information of external data platform through network protocol

• Support automatic reading of patient information – Patient information is read automatically, without manual input

🖥️ Modular Design & Expandability

The SpiroPower DLco Pro is a scalable, modular system. It can be configured with additional modules including:

• Bronchial Provocation Testing – APS method and tidal provocation

• Continuous Pulse Oscillation (IOS) – For airway resistance testing without requiring patient effort

• Plethysmography (Body Box) – For thoracic air volume measurement

Specifications

What's Included

• SpiroPower DLco Pro Main Unit

• Ultrasonic Flow Sensor

• PFT Software

• Data Connection Cable

• F‑size Mouthpieces

• Mobile Trolley

• Printer

• Power Cable

• Computer

• DLco Module

• Provo Module (Provocation Testing)

• Gas Cylinder

• User Manual

Applications

The SpiroPower DLco Pro All‑in‑One PFT System is suitable for:

• Hospitals at All Levels – Comprehensive pulmonary function testing and diagnosis

• Respiratory Specialty Centers – Advanced DLco, provocation, and spirometry testing

• Pulmonology & Respiratory Medicine – COPD, asthma, and interstitial lung disease diagnosis

• Pre‑Surgical Evaluation – DLco as a predictor of lung surgery tolerance

• Occupational Health – Screening for work‑related respiratory conditions

• Research Institutions – Respiratory research and clinical trials

• Physical Examination Centers – Health checkup screenings

• Pediatric Pulmonology – Accurate testing with low dead space design

Why Choose the SpiroPower DLco Pro?



FAQ

Q: What is the SpiroPower DLco Pro?

A: The SpiroPower DLco Pro is a comprehensive all‑in‑one pulmonary function diagnostic system that integrates spirometry (FVC, SVC, MVV, Tidal Breathing), bronchial dilation testing, bronchial provocation testing, and single‑breath CO diffusion capacity (DLco) into a single platform—covering virtually all functions of pulmonary testing.

Q: What tests does the SpiroPower DLco Pro support?

A: The device supports Flow‑Volume Loop (FVC), Slow Vital Capacity (SVC), Maximum Voluntary Ventilation (MVV), Tidal Breathing, Bronchial Dilation Test (pre/post dilator), Bronchial Provocation Test (APS method and tidal provocation), and Single‑Breath CO Diffusion Capacity (DLco) .

Q: What is DLco testing used for?

A: DLco (diffusion capacity) measures how well oxygen and carbon dioxide are transferred between the lungs and the blood. It is essential for diagnosing and monitoring interstitial lung disease, emphysema, pulmonary vascular disease, and COPD, and is a critical predictor for lung surgery tolerance.

Q: Does the device require daily calibration?

A: No. The SpiroPower DLco Pro is a fully digital device that requires no mechanical reset and automatically completes zero calibration.

Q: How does the device prevent cross‑infection?

A: The SpiroPower DLco Pro uses a unique RECO disposable design with no common breathing circuit between patients, completely eliminating cross‑infection risk.

Q: What is the sensor technology?

A: The device uses a dual‑channel ultrasonic time‑of‑flight sensor with accuracy of ±2%, suitable for patients of all ages. The sensor is durable, highly sensitive, has good repeatability, and is unaffected by water vapor.

Q: What is the on‑demand valve feature?

A: The SpiroPower DLco Pro incorporates an imported professional on‑demand valve that abandons cumbersome gas collection bags and complicated breathing lines, enabling easy and quick gas administration.

Q: Can the device be expanded with additional modules?

A: Yes. The SpiroPower DLco Pro features a modular, scalable design. It can be expanded with Continuous Pulse Oscillation (IOS) for airway resistance testing and Plethysmography (Body Box) for thoracic air volume measurement.

Q: What patient populations is the device suitable for?

A: The SpiroPower DLco Pro is intended for adults and children with cooperation ability for pulmonary function testing.

Q: Does the device include a computer and printer?

A: Yes. The SpiroPower DLco Pro comes as a complete system including the main unit, computer, printer, mobile trolley, DLco module, provocation module, gas cylinder, and PFT software.
