SpiroPower Q Portable PFT Device | Ultrasonic Spirometer for COPD & Asthma Screening

Portable ultrasonic spirometer with zero calibration, infection‑free RECO design, and 48+ test parameters. Ideal for COPD screening, asthma diagnosis, and routine PFT in clinics and hospitals.

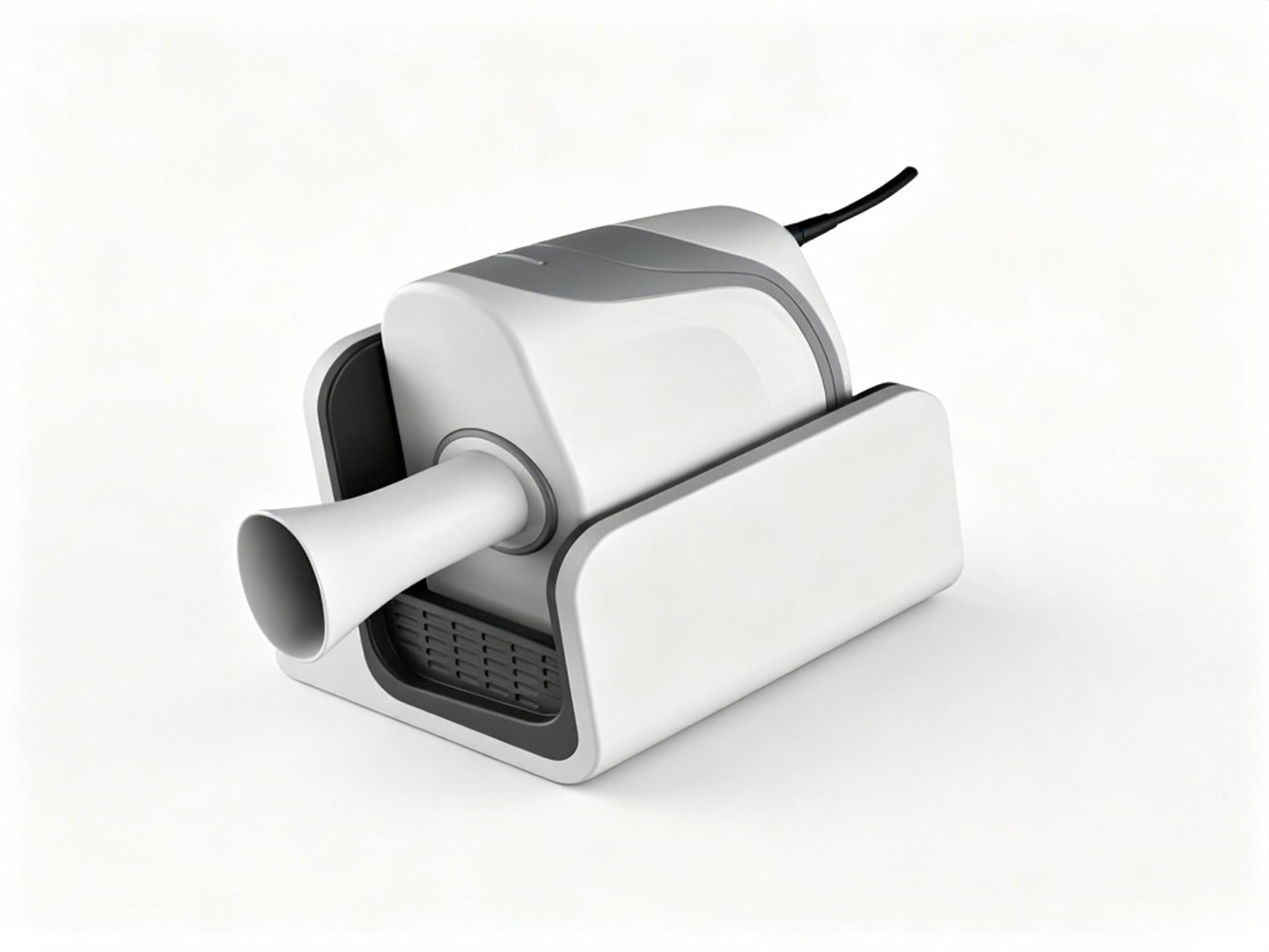

The Global Healthcare Medical SpiroPower Q Portable Pulmonary Function Testing Device is a compact, lightweight ultrasonic spirometer designed for accurate and reliable pulmonary function testing in hospitals, clinics, community health centers, and emergency settings. Featuring patented ultrasonic flow sensor technology, this device delivers high‑sensitivity, low‑resistance measurements with no daily calibration required—saving valuable clinical time and ensuring consistent accuracy.

The SpiroPower Q connects to a PC terminal via USB and supports a comprehensive range of tests including Slow VC, Flow‑Volume Loop, MVV, Bronchial Dilation Test (BDT), and Bronchial Provocation Test (software‑only). It generates over 48 test parameters and provides real‑time curve display, automatic quality control, and intelligent result selection per ATS/ERS standards. With its RECO disposable design eliminating cross‑infection risk, this device is the ideal choice for basic pulmonary function screening in hospitals at all levels.

This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

🔬 Patented Ultrasonic Flow Sensor Technology

The SpiroPower Q is equipped with a durable, high‑sensitivity ultrasonic transducer that offers zero flow resistance and excellent repeatability. Unlike traditional pneumotachographs, the ultrasonic sensor is not affected by water vapor, ensuring reliable performance in diverse clinical environments. The sensor is calibration‑free—no daily mechanical reset or manual calibration required—significantly reducing maintenance workload and operator error.

🛡️ RECO Design for Infection Control

The device features a unique RECO (Respiratory Exchange Circuit Optimization) design for disposables, which completely eliminates cross‑infection risk. There is no common breathing circuit between patients, and the disposable mouthpieces and filters ensure 100% infection control—making it safe for use in infectious disease wards and during respiratory outbreaks.

📊 Comprehensive Testing & 48+ Parameters

The SpiroPower Q supports a full range of pulmonary function tests:

✅ ATS/ERS Compliant & Intelligent Quality Control

The SpiroPower Q meets ATS/ERS international standards. The software provides:

• Automatic filtering to remove interfering signals and unstable waveforms

• Automatic selection of the best test results per ATS/ERS standards

• Real‑time dynamic breath curve display to assist operators in breath guidance

• Manual adjustment support for Tidal breath flow‑volume loops (TBFV)

📱 Smart Software & Connectivity

• Zero calibration – Fully digital PFT with automatic zero calibration

• BTPS correction – Real‑time body temperature, pressure, and saturated correction

• Multiple predicted values – Supports different ethnic groups

• SQL database – Excellent confidentiality, mass storage, and efficient data reading

• External data synchronization – Network protocols enable seamless connection with public health systems

• Automatic patient information reading – No manual input required

• Customizable report templates – Support for customized parameters, tables, curves, and print layouts

💨 Low Dead Space for Accurate Low‑Flow Testing

The SpiroPower Q features lower dead space volume, making it particularly suitable for low‑flow and low‑volume measurements—essential for accurate testing in pediatric, elderly, and weak‑breathing patients.

📦 Portable, Lightweight Design

The device is cup‑sized, light, and compact, making it easy to carry between wards, clinics, and community health stations. It connects to any PC via USB, requiring no bulky dedicated workstation.

💰 Cost‑Efficient Consumables

Ultrasonic transducer technology enables dual‑use consumables options, significantly reducing long‑term operating costs compared to traditional spirometers.

Specifications

What's Included

• SpiroPower Q Ultrasonic Flow Sensor (1)

• Support Base (1)

• PFT Software (1)

• Data Connection Cable (1)

• F‑size Mouthpieces (20)

• User Manual

Applications

The SpiroPower Q Portable PFT Device is suitable for:

• Hospitals at All Levels – Routine pulmonary function screening

• Community Health Centers – Basic respiratory function assessment

• Primary Care Clinics – Point‑of‑care spirometry

• Emergency Departments – Rapid respiratory assessment

• Physical Examination Centers – Health checkup screenings

• COPD & Asthma Screening Programs – Early detection and monitoring

Why Choose the SpiroPower Q?

FAQ

Q: What is the SpiroPower Q Portable PFT Device?

A: The SpiroPower Q is a compact, USB‑connected ultrasonic spirometer designed for accurate pulmonary function testing in hospitals, clinics, and community health settings. It uses patented ultrasonic flow sensor technology for zero‑resistance, calibration‑free measurements.

Q: What tests does the SpiroPower Q support?

A: The device supports Slow VC (SVC), Flow‑Volume Loop (FVC), MVV, Bronchial Dilation Test (BDT), and Bronchial Provocation Test (software‑only) , generating over 48 test parameters.

Q: Does the device require daily calibration?

A: No. The SpiroPower Q features fully digital pulmonary function testing with automatic zero calibration—no daily mechanical reset or manual calibration required.

Q: How does the device prevent cross‑infection?

A: The SpiroPower Q uses a unique RECO disposable design with no common breathing circuit between patients, completely eliminating cross‑infection risk.

Q: What patient populations is the device suitable for?

A: The SpiroPower Q is suitable for patients over 5 years old, including adults, children, and elderly patients.

Q: What is the sensor technology?

A: The device uses a durable, high‑sensitivity ultrasonic transducer that offers zero flow resistance, excellent repeatability, and is not affected by water vapor.

Q: Does the device come with software?

A: Yes. The SpiroPower Q includes Windows‑based PFT software with real‑time curve display, automatic quality control, SQL database management, and customizable report templates.

Q: Is the device portable?

A: Yes. The SpiroPower Q is cup‑sized, light, and compact, making it easy to carry between different clinical settings.

Q: What consumables are required?

A: The device uses disposable mouthpieces (F‑size) and optional disposable filters. The ultrasonic transducer technology enables cost‑efficient dual‑use consumables options.
