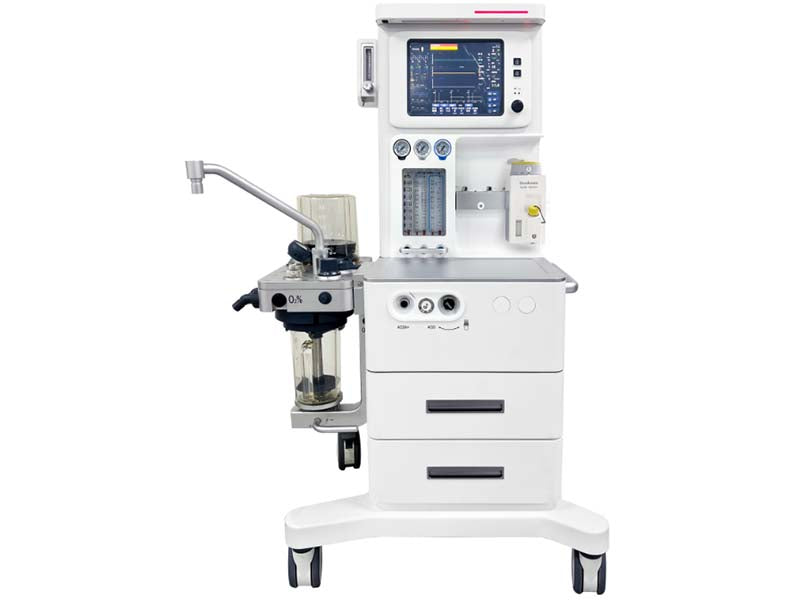

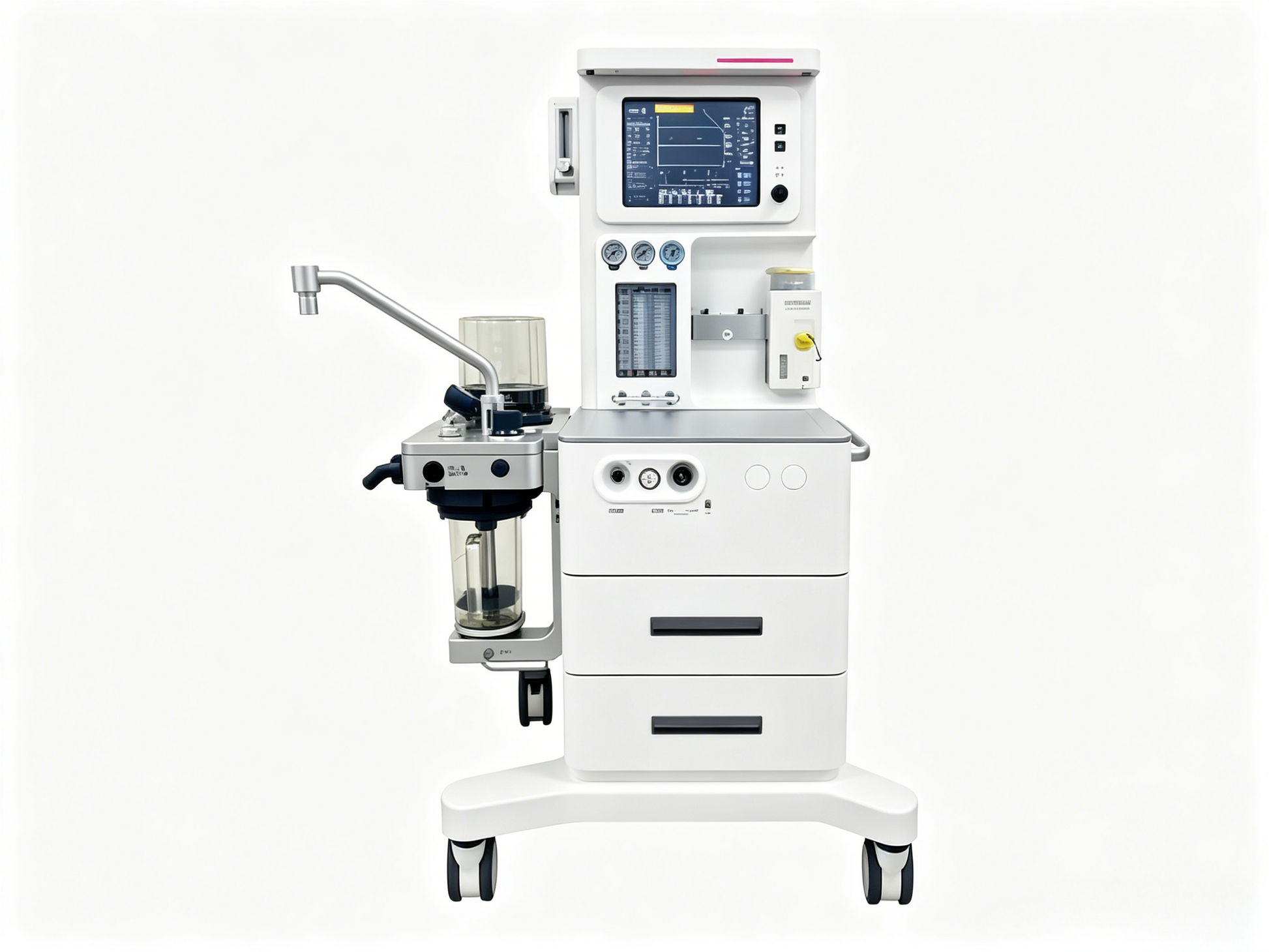

GHM S12 Anesthesia Machine #

Affordable, No-Nonsense Anesthesia Workstation with Essential Capabilities

The GHM S12 is our most budget-friendly touchscreen anesthesia machine. It combines a 12-inch LCD display, proportional valve, and a reliable mechanical flow meter to deliver solid performance for routine adult cases. Perfect for clinics and hospitals looking for dependable quality at the lowest entry price.

Key Features

• 12" Colorful LCD Touchscreen
  Intuitive, responsive display for easy parameter setting and real-time monitoring.

• Proportional Valve
  Precise gas mixing and flow control – improves efficiency and reduces anesthetic agent waste.

• Mechanical Flow Meter (5 Tube)
  Rugged, classic design with five tubes for visual confirmation of fresh gas flow – no electronics, easy to maintain.

• Essential Ventilation Modes
  Includes IPPV (VCV), A/C (SIPPV), PCV, SIMV, SIGH, and MANUAL – covers all routine adult anesthesia needs.

• ETCO₂ Monitoring (Optional on Screen)
  Add capnography when needed – flexible configuration to fit your budget.

• Optional Anesthetic Gas Module
  Available on the monitor for advanced agent monitoring.

• Built-in Battery (≥2 hours)
  Reliable backup for intra-hospital transport or unexpected power outages.

• 1.5-Liter CO₂ Absorber
  Adequate capacity for most surgical procedures – balances size and runtime.

• Two Vaporizer Positions
  Standard configuration includes two vaporizers (save $500 if only one is required).

• Oxygen Sensor & ACGO
  Standard O₂ monitoring and an Auxiliary Common Gas Outlet for emergency use.

• Four Castors with Brake
  Easy maneuverability with secure locking for stability.

• Global Power Compatibility
  Operates on 100V–240V, 50/60Hz – ready for worldwide use.

• Essential Graphical Display
  View pressure-time, flow-time, and pressure-volume loop for basic respiratory mechanics monitoring.

• Wide Adjustable Parameters
  Frequency (1‑100 bpm), tidal volume (0‑1500 ml), PEEP (0‑30 cmH₂O), pressure control (5‑60 cmH₂O), inspiratory ratio (4:1‑1:8), trigger sensitivity, sigh, apnea ventilation, and more.

Why Choose the GHM S12?

• Lowest entry price – EXW just $9,499 (with two vaporizers).

• Touchscreen at a mechanical flow meter price – Rare combination of modern UI and traditional flow measurement.

• Proportional valve included – Not found on most economy machines.

• Simple, reliable, and service-friendly – Mechanical flow meter means fewer electronic components to fail.

• No top light – Keeps cost down without affecting clinical performance.

• One-year free warranty + lifetime maintenance – Long-term peace of mind.

• MOQ 1 unit – Perfect for single-unit trials or budget-conscious expansion.
