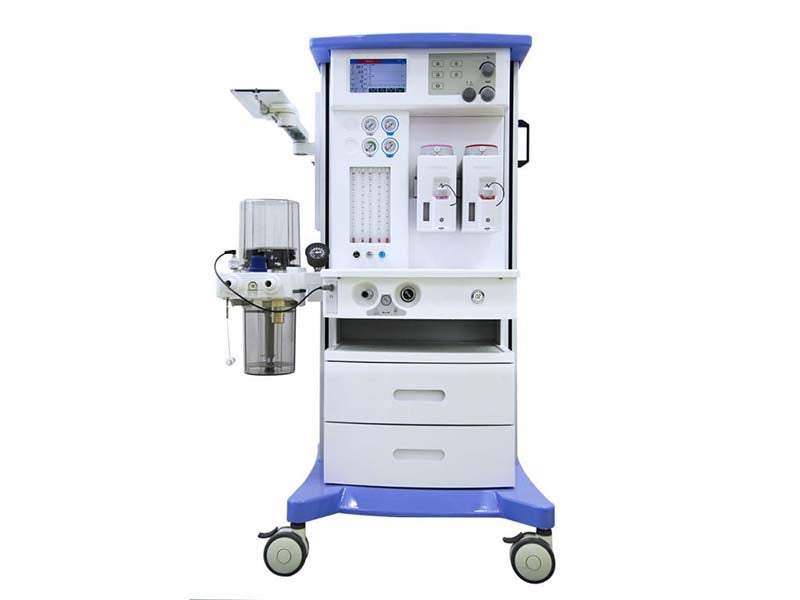

GHM-S6500 Anesthesia Machine

Product Description

The GHM S6500 is a simple, mechanically‑controlled anesthesia workstation built for routine procedures where reliability and low cost of ownership matter most. Featuring a 7‑inch color LCD screen, a 5‑tube mechanical flow meter, and the three core ventilation modes (VCV, SIMV, and manual), the S6500 delivers safe, predictable anesthesia for adult patients. It supports O₂, N₂O, and Air, giving you full flexibility for balanced anesthesia techniques. With an EXW price of just $6,799 (including two vaporizers), this machine is the perfect entry point for small hospitals, ambulatory surgery centers, and training labs.

Key Features

🖥 7″ Colorful TFT LCD Display

Monitor essential ventilation parameters on a clear, easy‑to‑read 7‑inch color screen. The display shows pressure‑time (P‑T) and flow‑time (F‑T) waveforms, along with numeric values for tidal volume, respiratory rate, PEEP, and airway pressures. Simple, non‑touch interface – no complex menus, no steep learning curve.

⚙️ All‑Mechanical Gas Delivery & Flow Meter

The S6500 uses robust mechanical valve technology and a 5‑tube mechanical flow meter for O₂, N₂O, and Air. This design eliminates electronic failure points, requires minimal biomedical training to service, and provides consistent, predictable gas delivery. No software, no glitches – just reliable performance case after case.

🌬 Core Ventilation Modes

The S6500 includes the three most essential modes for general anesthesia:

• IPPV (VCV) – Volume‑controlled ventilation for the majority of routine surgeries

• A/C (SIPPV) – Assist/Control for patients with spontaneous breathing efforts

• SIMV – Synchronized intermittent mandatory ventilation for weaning

• MANUAL – Manual bag ventilation for transport or emergency use

Note: PCV, PSV, and SIGH are not available – keeping the machine simple, affordable, and easy to operate.

📊 Basic Waveform Monitoring

While simplified, the S6500 still gives you critical visual feedback:

• Pressure‑time (P‑T) curve – detect circuit leaks, compliance changes, and airway obstructions

• Flow‑time (F‑T) curve – monitor inspiratory and expiratory flow patterns

These two waveforms are all you need for routine case management.

🧪 Optional ETCO₂ via External Patient Monitor

The S6500 does not have on‑screen capnography. Instead, you can add an ETCO₂ module to your existing patient monitor for +$1,040. This keeps the anesthesia machine cost down while still allowing full monitoring capability when needed.

🔋 Reliable Backup & Safety Features

• Internal battery – ≥2 hours backup for intra‑hospital transport or power outage

• Oxygen sensor – continuous inspired O₂ monitoring

• Y‑OKE (optional) – three O₂/N₂O index safety connectors prevent cylinder misconnection ($162/pc)

🧰 Practical, Service‑Friendly Design

• 2 drawers – basic storage for syringes and small supplies

• 2‑position vaporizer mounting – comes standard with two vaporizers (subtract $500 if only one is needed)

• ACGO – Auxiliary Common Gas Outlet for external gas supply

• Absorber capacity – 1.5L canister – adequate for routine case lengths

• Four swivel castors – easy mobility with manual brakes

• No top light – reduces cost and complexity

🔌 Wide Power Compatibility

Operates on 100‑240V, 50/60Hz with only 40VA input power – energy‑efficient and compatible with any hospital electrical system.

Ventilation Specifications (S6500)

Note: PCV, PSV, and pressure‑controlled parameters are not available.

What’s Included in the Standard Package

• GHM S6500 Anesthesia Machine (main unit)

• 7″ color TFT LCD display (non‑touch)

• Two vaporizers (sevoflurane, isoflurane, or as requested)

• Reusable CO₂ absorber canister (1.5L)

• Breathing circuit with Y‑piece

• Oxygen sensor

• 2 drawers

• Four swivel castors

• 5‑tube mechanical flow meter (O₂, N₂O, Air)

• Mechanical valve system

• User manual

• 1‑year warranty, lifetime maintenance

Note: ETCO₂ module and Y‑OKE connectors are optional.

Optional Accessories

Why Choose the GHM S6500?

• ✅ Lowest‑priced anesthesia machine with two vaporizers – EXW $6,799

• ✅ Simple mechanical design – easy to use, easy to maintain, low cost of ownership

• ✅ Three‑gas capability – O₂, N₂O, and Air for balanced anesthesia

• ✅ Core ventilation modes – covers 95% of routine adult surgeries

• ✅ Optional ETCO₂ – add monitoring via your existing patient monitor

• ✅ 5‑tube flow meter – precise, reliable gas flow indication

• ✅ Short lead time – 7‑20 working days

• ✅ MOQ 1 unit – perfect for small facilities and pilot purchases

• ✅ Lifetime maintenance – we support you long after the warranty

Who Is This Machine For?

• Small rural hospitals – where budget is tight but quality cannot be compromised

• Ambulatory surgery centers – performing low‑to‑moderate risk procedures

• Training institutions – easy for students to learn basic anesthesia principles

• Field hospitals – simple mechanics are more reliable in challenging environments

• Veterinary clinics (off‑label) – mechanical controls suit animal anesthesia

Pricing & Ordering Information
