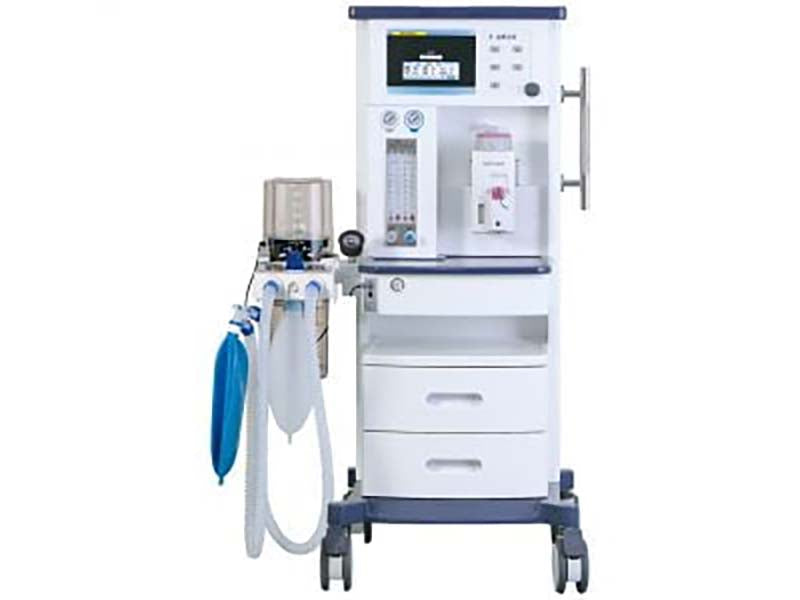

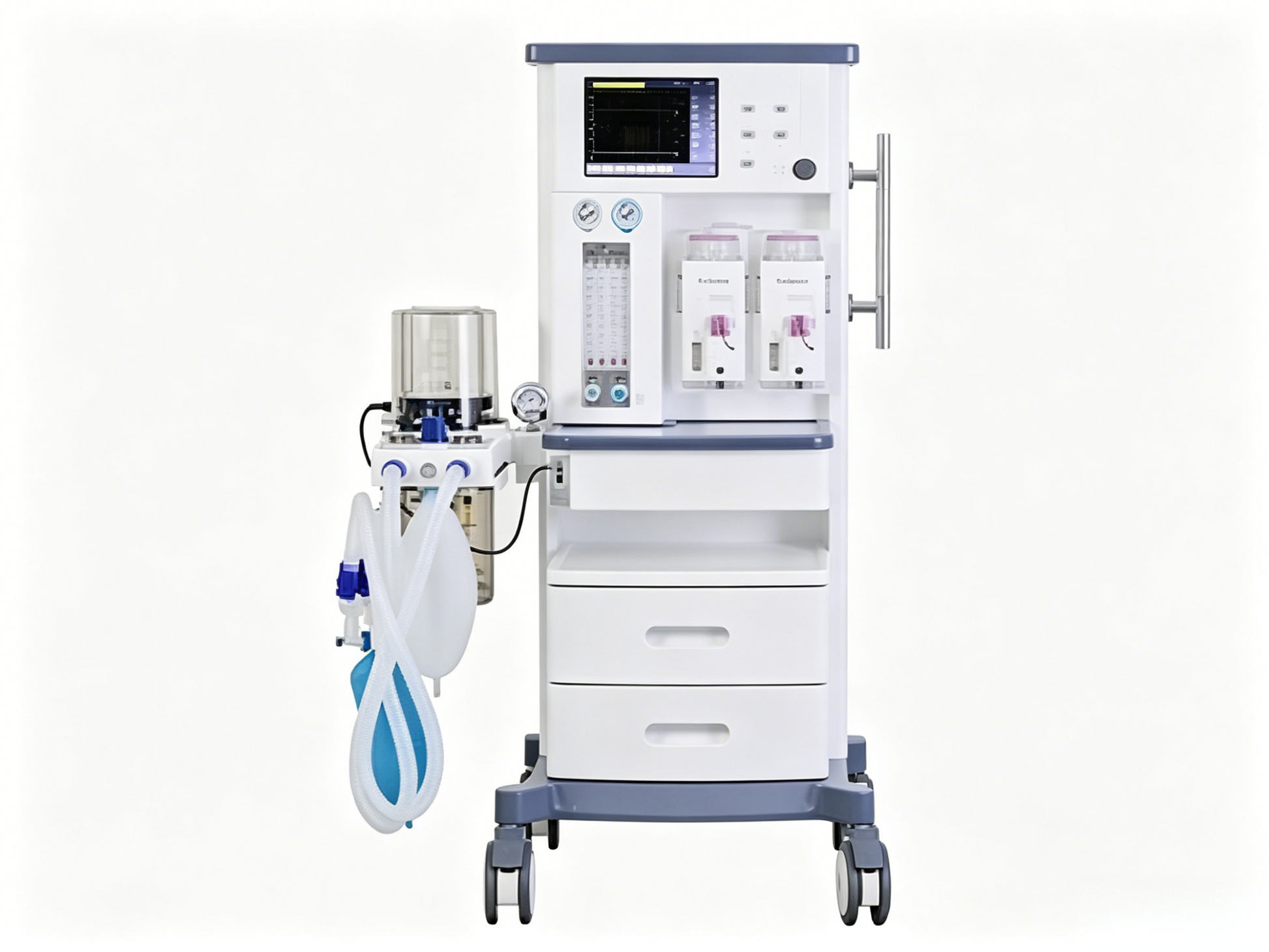

GHM S6500A Anesthesia Machine #

Product Description

The GHM S6500A is a value‑packed anesthesia workstation that combines proportional valve gas control, a 10.4‑inch touch screen, and a full set of ventilation modes (VCV, PCV, PSV, SIMV) at an accessible price. Designed to operate on O₂ and Air only (no N₂O), the S6500A simplifies gas supply while delivering lung‑protective ventilation for adult and pediatric patients. With a mechanical 4‑tube flow meter, integrated oxygen sensor, and optional on‑screen ETCO₂, this machine is ideal for operating rooms that want advanced features without the complexity of nitrous oxide.

Key Features

🖥 10.4″ Colorful TFT LCD Touch Screen

Interact directly with your ventilator settings on a bright, responsive 10.4‑inch touch display. Adjust parameters, view waveforms, and monitor loops with a simple tap. The intuitive interface reduces training time and keeps your focus on the patient.

🎛 Proportional Valve Technology

Enjoy electronic precision without the premium price tag. The S6500A uses a proportional valve to regulate O₂ and Air flow, delivering stable, accurate fresh gas delivery. This electronic control reduces gas waste, responds instantly to changes, and provides smoother ventilation than purely mechanical systems.

⚙️ Comprehensive Ventilation Modes

The S6500A supports a full spectrum of modes for routine and advanced ventilation:

• IPPV (VCV) – Volume‑controlled ventilation

• A/C (SIPPV) – Assist/Control ventilation

• PCV – Pressure‑controlled ventilation (lung‑protective)

• PSV – Pressure support ventilation for spontaneous breathing

• SIMV – Synchronized intermittent mandatory ventilation

• SIGH – Periodic sigh breath for alveolar recruitment

• MANUAL – Manual bag ventilation

Note: PCV‑VG and PRVC are not available – keeping the machine focused and affordable.

📊 Essential Graphical Display & Loops

Monitor patient‑ventilator interaction in real time. The S6500A displays:

• Pressure‑time (P‑T) curve

• Flow‑time (F‑T) curve

• Pressure‑volume (P‑V) loop – assess lung mechanics and optimize PEEP

• ETCO₂‑time curve (when optional ETCO₂ is installed)

These visual tools help you detect asynchrony, leaks, and compliance changes at a glance.

🧪 Optional On‑Screen ETCO₂ Monitoring

Add capnography when you need it. The S6500A supports an optional ETCO₂ module displayed directly on the touch screen for +$1,040. This gives you end‑tidal CO₂ waveform and numeric value – essential for verifying tube placement, monitoring metabolism, and detecting circuit disconnection.

🔋 Reliable Backup & Safety Features

• Internal battery – ≥2 hours backup for transport or power outage

• Oxygen sensor – continuous inspired O₂ monitoring

• Four swivel castors – easy mobility with manual brakes

• No Y‑OKE – simplifies gas connections (O₂ and Air have different fittings, no risk of mix‑up)

🧰 Practical OR Design

• 2 drawers – storage for airway accessories and medications

• 2‑position vaporizer mounting – comes standard with two vaporizers (subtract $500 if only one is needed)

• ACGO – Auxiliary Common Gas Outlet for external gas supply

• Absorber capacity – 1.5L canister for extended CO₂ absorption

• Mechanical flow meter – 4‑tube, reliable and easy to read

• No top light – keeps cost down

💨 Gas Source: O₂ + AIR Only (No N₂O)

The S6500A is configured for medical oxygen and medical air only. Nitrous oxide is not supported. This eliminates the need for N₂O pipeline, cylinders, and scavenging concerns – simplifying hospital gas logistics and reducing operating costs. Air‑O₂ mixtures are sufficient for the vast majority of surgical procedures.

🔌 Wide Power Compatibility

Operates on 100‑240V, 50/60Hz with only 85VA power consumption – fits any hospital electrical environment.

Ventilation Specifications (S6500A)

What’s Included in the Standard Package

• GHM S6500A Anesthesia Machine (main unit)

• 10.4″ color TFT LCD touch screen

• Two vaporizers (sevoflurane, isoflurane, or as requested)

• Reusable CO₂ absorber canister (1.5L)

• Breathing circuit with Y‑piece

• Oxygen sensor

• 2 drawers

• Four swivel castors

• 4‑tube mechanical flow meter (O₂ + Air)

• Proportional valve system

• User manual

• 1‑year warranty, lifetime maintenance

Note: ETCO₂ module is optional; Y‑OKE and N₂O not available.

Optional Accessories

Why Choose the GHM S6500A?

• ✅ Proportional valve precision – electronic gas control at a mechanical‑priced machine

• ✅ Touch screen interface – 10.4″ intuitive control

• ✅ Full ventilation modes – VCV, PCV, PSV, SIMV, and more

• ✅ O₂ + Air only – no N₂O complexity, lower operating costs

• ✅ Covers all routine patients – VT 15‑1500 mL, adult and pediatric

• ✅ Optional on‑screen ETCO₂ – add capnography only when needed

• ✅ Factory direct pricing – EXW $8,499 (with two vaporizers)

• ✅ Short lead time – 7‑20 working days

• ✅ MOQ 1 unit – perfect for any size facility

Pricing & Ordering Information
