TLC5000 12-Lead Holter ECG System | 24-Hour Ambulatory ECG Recorder with Advanced Analysis #
TLC5000 12-Lead Holter ECG System | 24-Hour Ambulatory ECG Recorder with Advanced Analysis #
Couldn't load pickup availability
12-lead Holter ECG system with 24-hour ambulatory recording, advanced arrhythmia & pacemaker analysis, HRV, and sleep apnea screening. Comprehensive PC-based ECG analysis software.

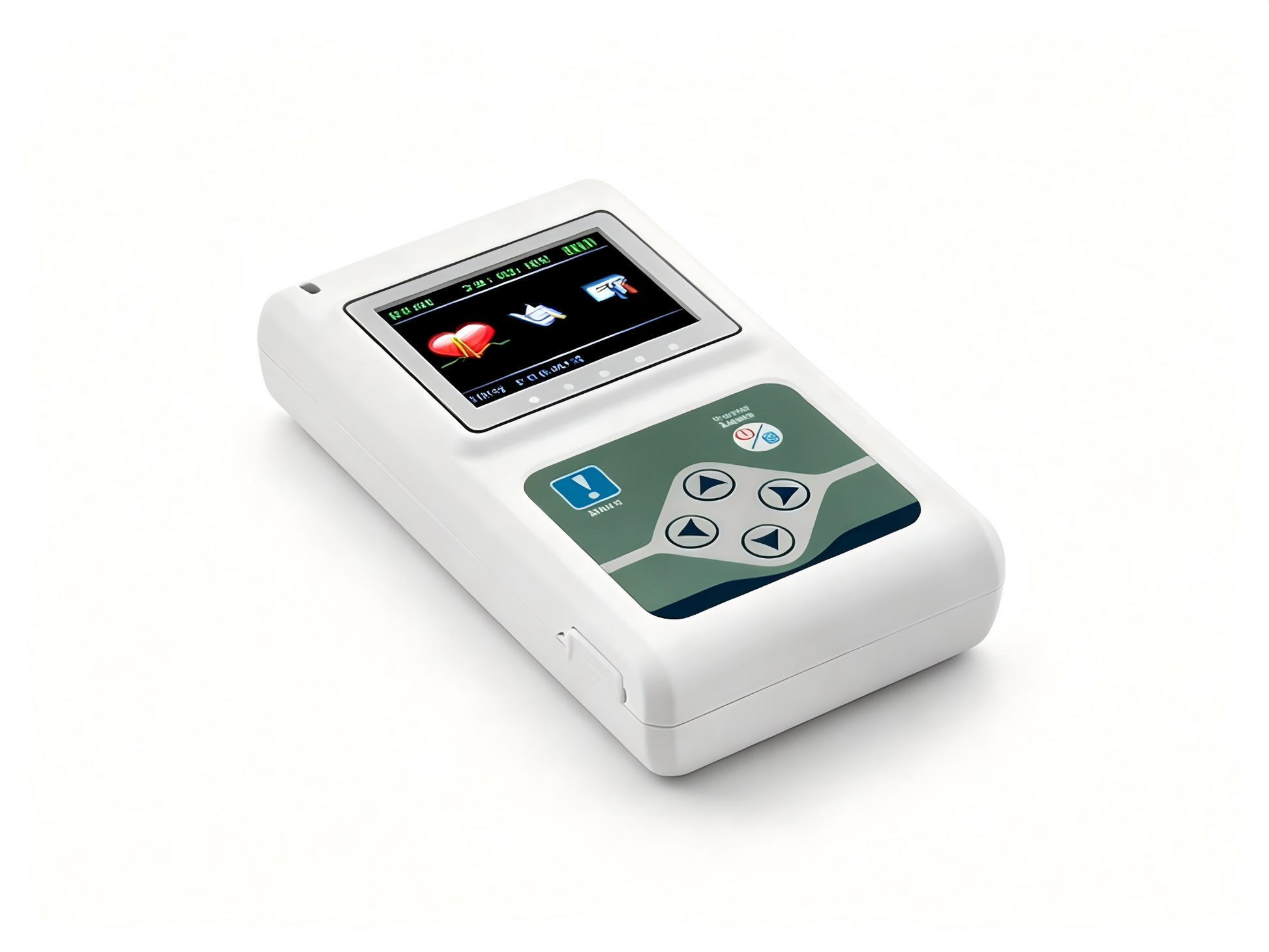

The CONTEC TLC5000 Dynamic ECG System is a professional 12-lead Holter monitoring solution designed for comprehensive cardiac assessment over a 24-hour period. Adopting an international standard 12-lead system, the TLC5000 continuously records ECG waveforms and provides powerful PC-based analysis software for detailed interpretation.
With advanced arrhythmia analysis, pacemaker detection, and a suite of predictive diagnostic tools including Heart Rate Turbulence (HRT) and T-Wave Alternation analysis, the TLC5000 helps clinicians identify cardiac risks, evaluate myocardial ischemia, and make more informed treatment decisions.
Ideal for hospitals, cardiology clinics, and community healthcare settings, the TLC5000 delivers the accuracy, flexibility, and comprehensive analysis capabilities required for modern cardiac diagnostics.
Key Features
📊 24-Hour Continuous 12-Lead ECG Recording
The TLC5000 recorder continuously stores real-time ECG data for a full 24-hour period. The system adopts a 12-lead system of international standard, ensuring comprehensive cardiac electrical activity capture throughout the monitoring period.
🔬 Advanced Arrhythmia Analysis with MCSSTM & TMCATM
The system features powerful arrhythmia analysis based on MCSSTM and TMCATM technology, which significantly reduces the doctor's workload by automating complex waveform classification. With more than 10 templates—including atrial premature beat, ventricular premature beat, long interval, atrial fibrillation, and others—the system can distinguish almost any kind of pathologic waveform. User-defined modules further extend the system's diagnostic capabilities.
🫀 Synchronous 12-Lead Analysis
The TLC5000 performs synchronous analysis for 12-lead, ensuring that QRS waveforms are found accurately without distortion. Flexible analysis channel selection allows any channel to be selected as the main analysis channel, providing physicians with complete control over the diagnostic process.
🔄 Comprehensive Pacemaker Analysis
The system offers powerful pacemaker analysis for all pacemaker types, including AAI, VVI, DDD, and others. Multiple pacing analysis templates are available, such as "Dual chamber pacing," "Atrial pacing," "Ventricular pacing," "Ventricular Pseudofusion," and "Ventricular asynchronous pacing".
🧠 Predictive Diagnostic Tools
The TLC5000 goes beyond basic ECG analysis with advanced predictive functions:
-
Sleep Breath Pause Syndrome Analysis – Predicts the risk of sleep-disordered breathing
-
Heart Rate Turbulence (HRT) Analysis – Predicts death risk in patients with myocardial infarction
-
T-Wave Alternation Analysis – An important index for predicting malignant arrhythmia and sudden cardiac death
-
ST Segment Analysis & Total Ischemic Load – Analyzes abnormal ST segments according to the whole and events, helping physicians comprehensively judge myocardial ischemia
🕒 Heart Rate Variability (HRV) Analysis
The system provides HRV analysis for 5-minute, 1-hour, and 24-hour periods, offering valuable insights into autonomic nervous system function.
📋 Advanced Analysis Modules
The TLC5000 includes additional analysis modules for more comprehensive reporting:
-
QTD (QT Dispersion) analysis
-
VCG (Vector Cardiogram) analysis
-
VLP (Ventricular Late Potential) analysis
🔍 Fast Review & Flexible Reporting
The fast review analysis function allows physicians to review single or full-lead ECG in any time bucket. One-key printing makes report generation convenient and fast.
💾 Perfect Case Management
The system features comprehensive case management functions for efficient storage, retrieval, and organization of patient records.
🖥️ PC-Based Analysis Software
Comprehensive PC software enables detailed waveform analysis, report generation, and data management, making the TLC5000 a complete Holter ECG solution for medical institutions.
Recorder Specifications
| Feature | Specification |
|---|---|
| Model | TLC5000 |
| Lead Configuration | 12-lead (international standard) |
| Recording Duration | 24 hours continuous |
| Display | 1.77" TFT color LCD |
| Memory | MicroSD (1GB) |
| Power Supply | Two "AA" batteries |
| Interface | USB 2.0 |
| Dimensions | 111mm(L) × 61mm(W) × 25mm(H) |
| Features | Waveform preview, record review, event marking |
Analysis Software Features
| Feature | Description |
|---|---|
| Arrhythmia Analysis | MCSSTM & TMCATM technology with 10+ templates |
| Pacemaker Analysis | Supports AAI, VVI, DDD and all pacemaker types |
| Heart Rate Variability | 5-min, 1-hour, 24-hour analysis |
| ST Segment Analysis | Full and event-based analysis with ischemic load |
| Sleep Apnea Screening | Predicts risk of sleep breath pause syndrome |
| HRT Analysis | Predicts death risk in post-MI patients |
| T-Wave Alternation | Predicts malignant arrhythmia and sudden cardiac death |
| Advanced Modules | QTD, VCG, VLP, TVCG analysis |
| Case Management | Comprehensive storage and retrieval |
Why Choose the TLC5000?
| Basic Holter Systems | CONTEC TLC5000 |
|---|---|
| Limited arrhythmia templates | 10+ templates + user-defined modules |
| No pacemaker analysis | Comprehensive pacemaker detection (AAI, VVI, DDD, etc.) |
| Basic ECG reporting | HRV, HRT, T-Wave Alternation, sleep apnea screening |
| Single-channel focus | Synchronous 12-lead analysis |
| Limited predictive tools | Advanced risk prediction for sudden cardiac death |
| Basic case management | Comprehensive case management system |
Whether you're a cardiologist, hospital department, or diagnostic center, the CONTEC TLC5000 12-Lead Holter ECG System delivers the advanced analysis, predictive capabilities, and diagnostic accuracy you need.
What's Included
-
TLC5000 12-Lead Holter Recorder
-
12-Lead ECG Patient Cable
-
PC Analysis Software
-
USB 2.0 Cable
-
Two "AA" Batteries
-
User Manual
-
Software Installation Guide
Applications
The TLC5000 Dynamic ECG System is applicable for:
-
Hospitals – Cardiology departments, ICUs, emergency rooms
-
Cardiology Clinics – Outpatient Holter monitoring
-
Community Health Centers – Remote cardiac screening
-
Physical Examination Centers – Preventive cardiac assessment
-
Sleep Clinics – Sleep apnea risk screening
FAQ
Q: What is the recording duration of the TLC5000?
A: The TLC5000 recorder continuously stores real-time ECG data for a full 24-hour period.
Q: What lead system does the TLC5000 use?
A: The system adopts an international standard 12-lead system.
Q: What types of arrhythmia can the system detect?
A: The TLC5000 features more than 10 templates including atrial premature beat, ventricular premature beat, long interval, atrial fibrillation, and others, with user-defined modules to distinguish almost any kind of pathologic waveform.
Q: Can the TLC5000 analyze pacemaker patients?
A: Yes. The system offers powerful pacemaker analysis for all pacemaker types, including AAI, VVI, DDD, and others.
Q: What predictive diagnostic tools are available?
A: The TLC5000 includes Sleep Breath Pause Syndrome analysis, Heart Rate Turbulence (HRT) analysis for post-MI risk prediction, T-Wave Alternation analysis for sudden cardiac death risk, and ST segment analysis for myocardial ischemia assessment.
Q: Does the system include Heart Rate Variability analysis?
A: Yes. The system provides HRV analysis for 5-minute, 1-hour, and 24-hour periods.
Q: What additional analysis modules are available?
A: The TLC5000 includes QTD (QT dispersion), VCG (vector cardiogram), VLP (ventricular late potential), and TVCG (time vector cardiogram) analysis modules.
Q: What type of memory does the recorder use?
A: The TLC5000 uses MicroSD (1GB) memory for data storage.
Q: How is the recorder powered?
A: The recorder is powered by two "AA" batteries.
Q: Can I preview waveforms during recording?
A: Yes. The TLC5000 features waveform preview, record review, and event marking functions.
