Vet1120 Veterinary Mobile Digital Radiography C-arm #

Professional Digital C-Arm Designed Exclusively for Veterinary Use

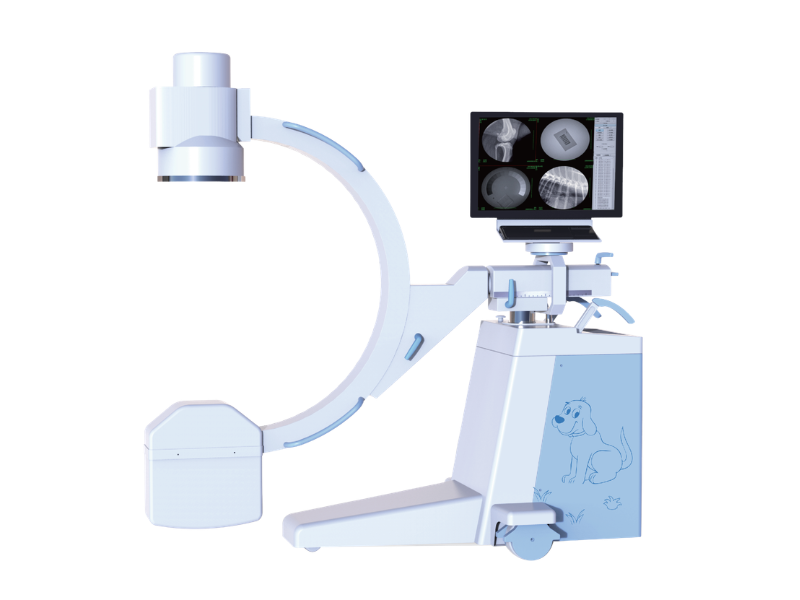

The VET1120 is a mobile digital C-arm system purpose-built for veterinary practice — designed for orthopedics, pain management, and general fluoroscopic procedures in companion animals. Specialized veterinary software and a compact design make it an ideal choice for animal hospitals and clinics.

High-Frequency Generator for Stable Performance
Powered by a 5kW high-frequency generator, the system delivers stable X-ray output and optimized patient dose for routine veterinary fluoroscopic procedures.

Comprehensive Fluoroscopy & Exposure Parameters

• Continuous Fluoroscopy: 40–110kV, 0.2–4mA

• Pulse Fluoroscopy: 40–110kV, 0.2–4mA

• Radiography: 40–110kV, 0–65mAs

Supports continuous fluoroscopy, pulsed fluoroscopy, and radiographic imaging in one portable system.

High-Quality Dual-Focus X-Ray Tube

• Dual focus: Small focus 0.6 / Large focus 1.8

• Automatic functionality for simplified operation

Dual focus design optimized for both fine-detail fluoroscopic imaging and higher-power radiographic applications.

Canon Image Intensifier for Superior Image Quality

• Image intensifier: 9" three visual fields (based on previous model specifications)

• Grid: Dense grid for enhanced image acquisition

Delivers bright, clear fluoroscopic images with enhanced contrast and detail for accurate diagnosis.

Veterinary-Specific Digital Workstation

• Software: Professional software specially designed for veterinary use

• Design: Smart and compact with integrated computer workstation

• Space-saving: Compact design saves valuable space in your exam room

User-friendly veterinary software streamlines workflow and improves diagnostic efficiency.

Hand Controller for Convenient Operation

• Controller type: Humanized miniature mobile operator panel

• Function: Free control independent from the host unit

Wireless-style hand controller allows convenient operation at patient-side without returning to the main unit.

Integrated Whole Machine Design

• Appearance: Compact and beautiful structure

• Mobility: Flexible movement for easy positioning

• Cable management: No cable design on X-ray tube assembly for easy maintenance

• Operating space: Provides wider operating space for veterinary procedures

Thoughtful integrated design enhances mobility and provides greater working space around the patient.

Technical Specifications Summary

• High-frequency inverter power supply: 5kW

• High-frequency inverter frequency: 40 kHz

• Power supply voltage: 110V
