Vortex Mixer Machine Laboratory 3000rpm Variable Speed Vortex Mixer #
Vortex Mixer Machine Laboratory 3000rpm Variable Speed Vortex Mixer #
Couldn't load pickup availability
Model:GHM060703-1S

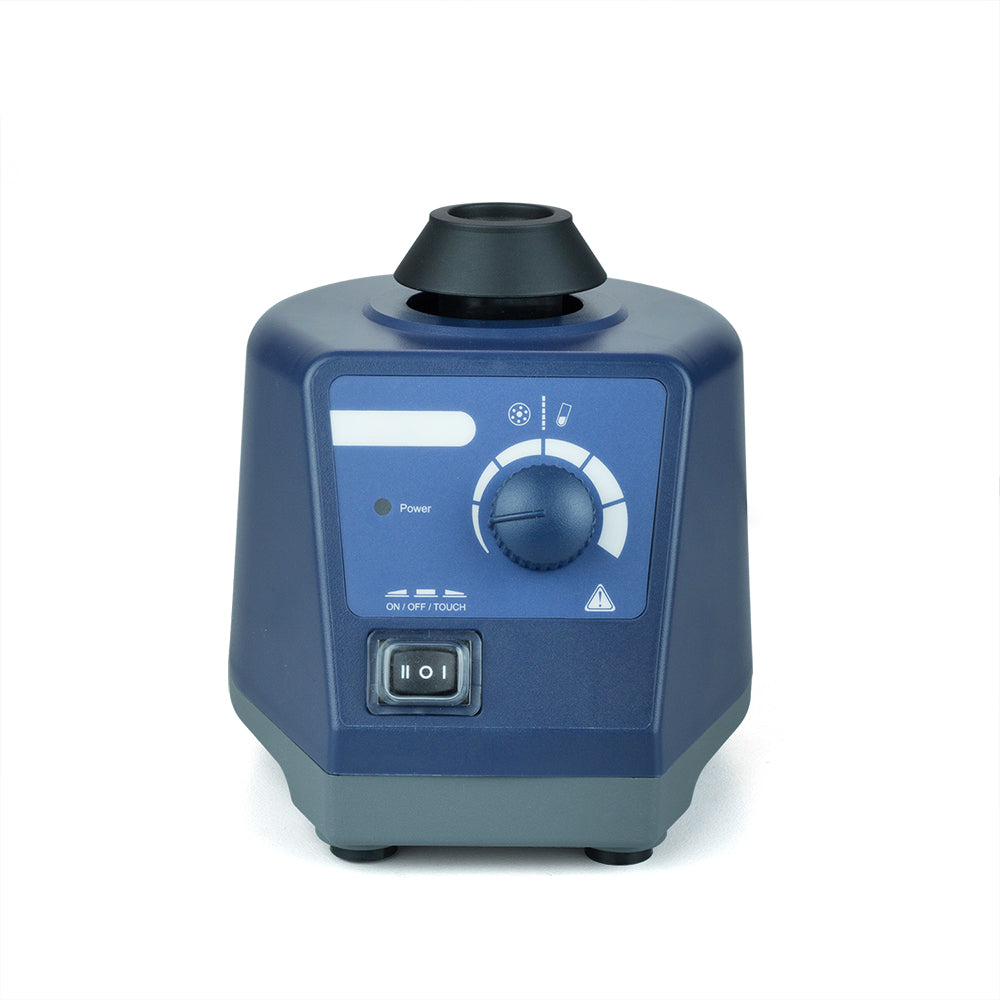

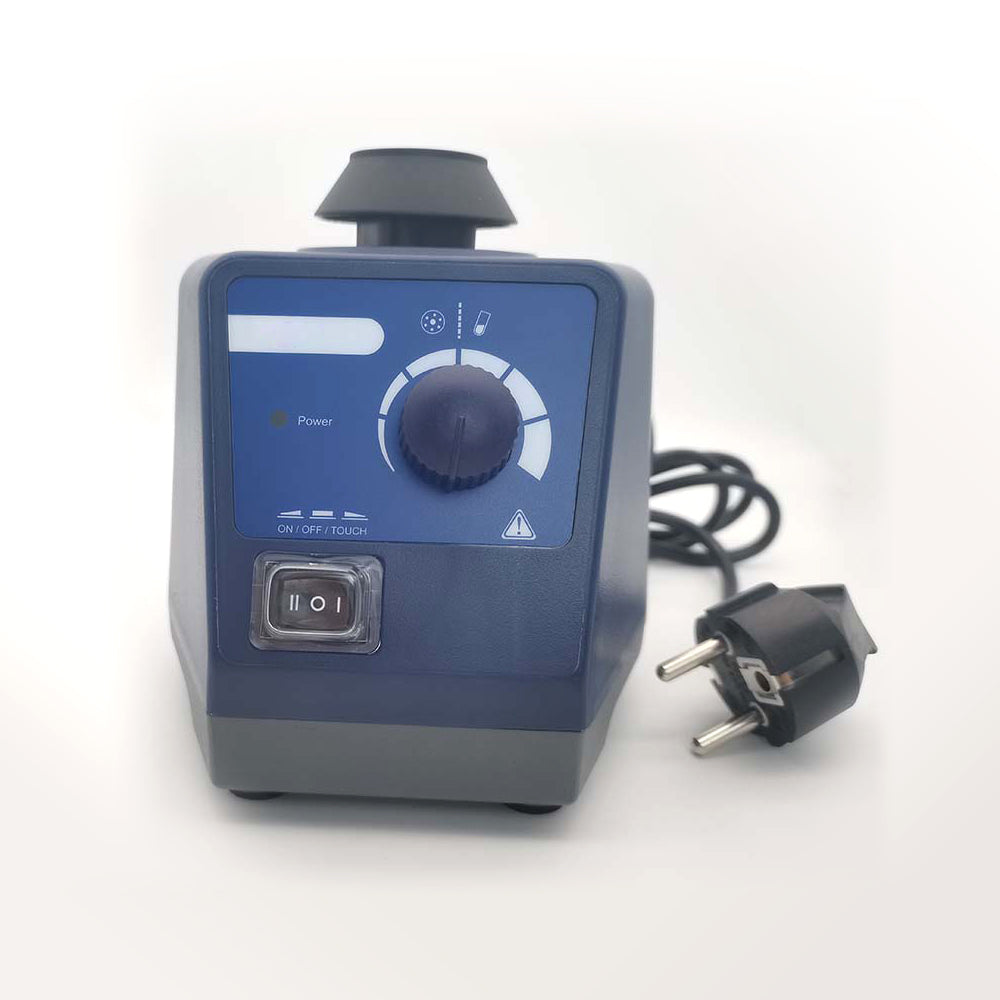

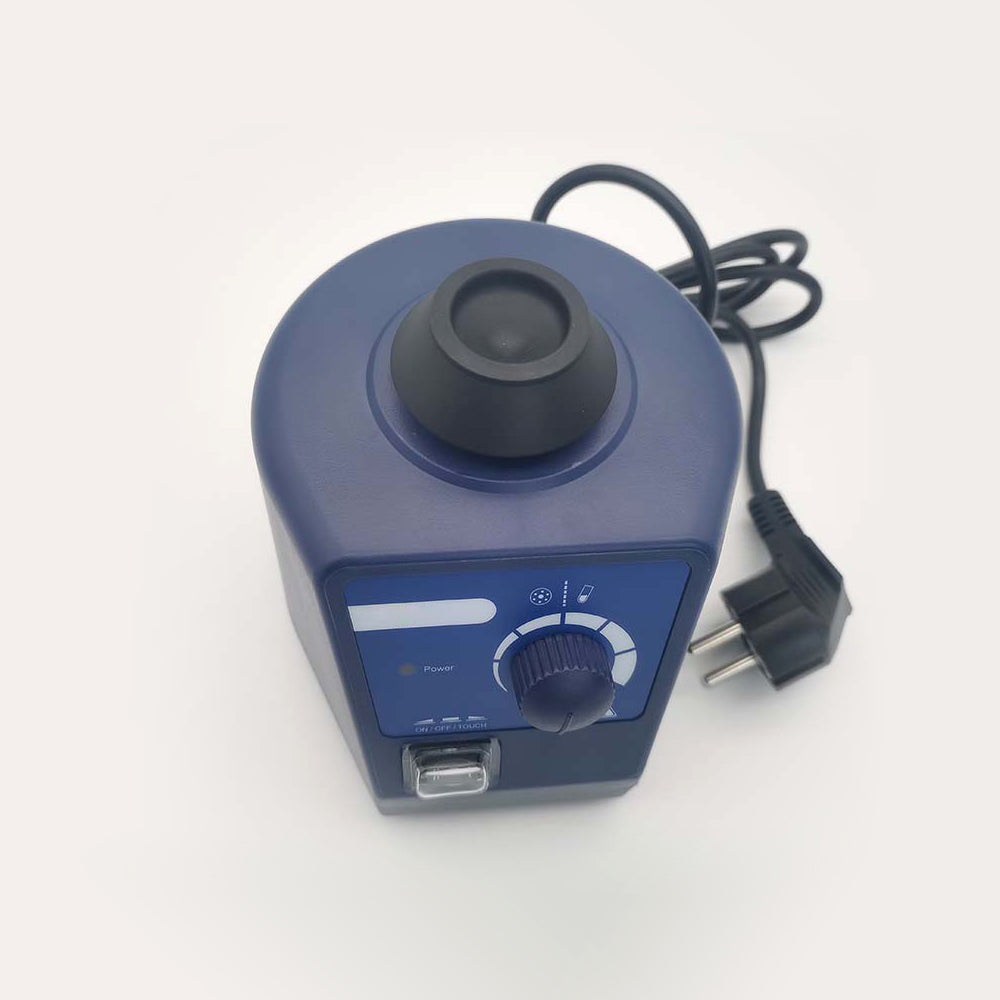

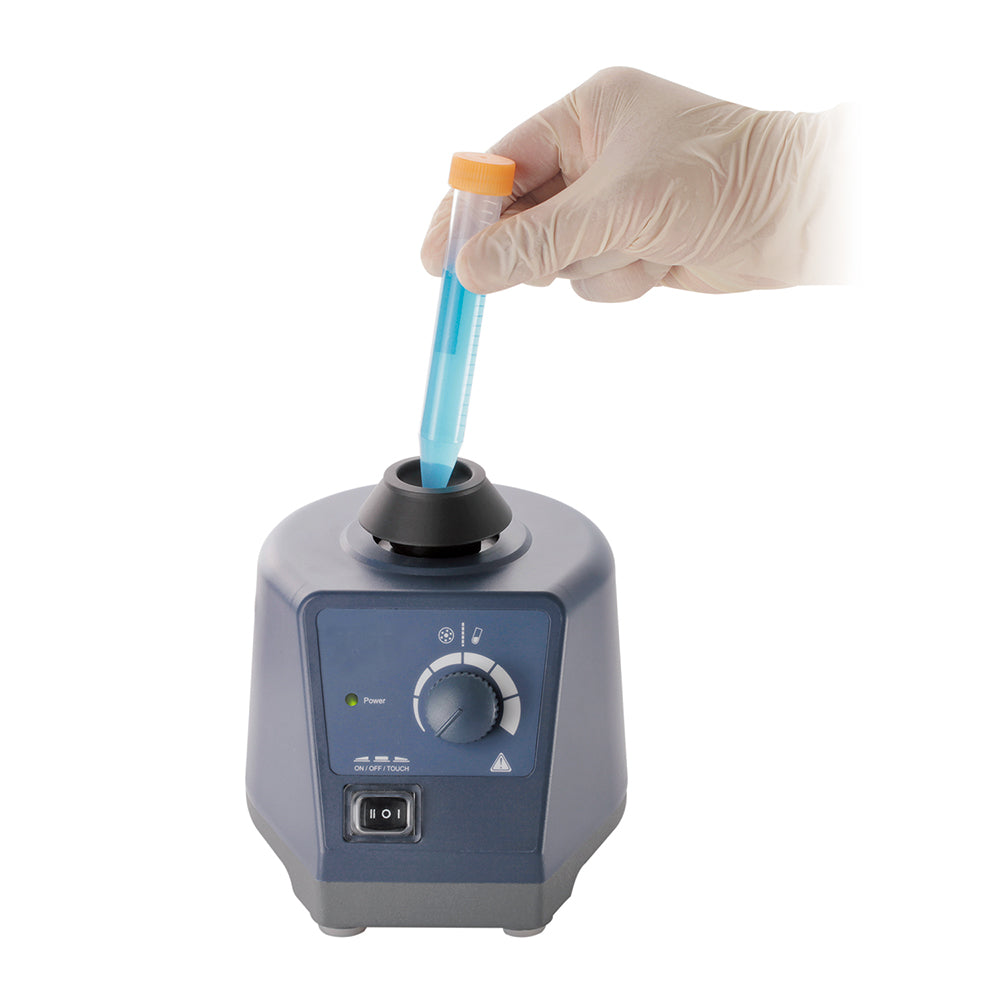

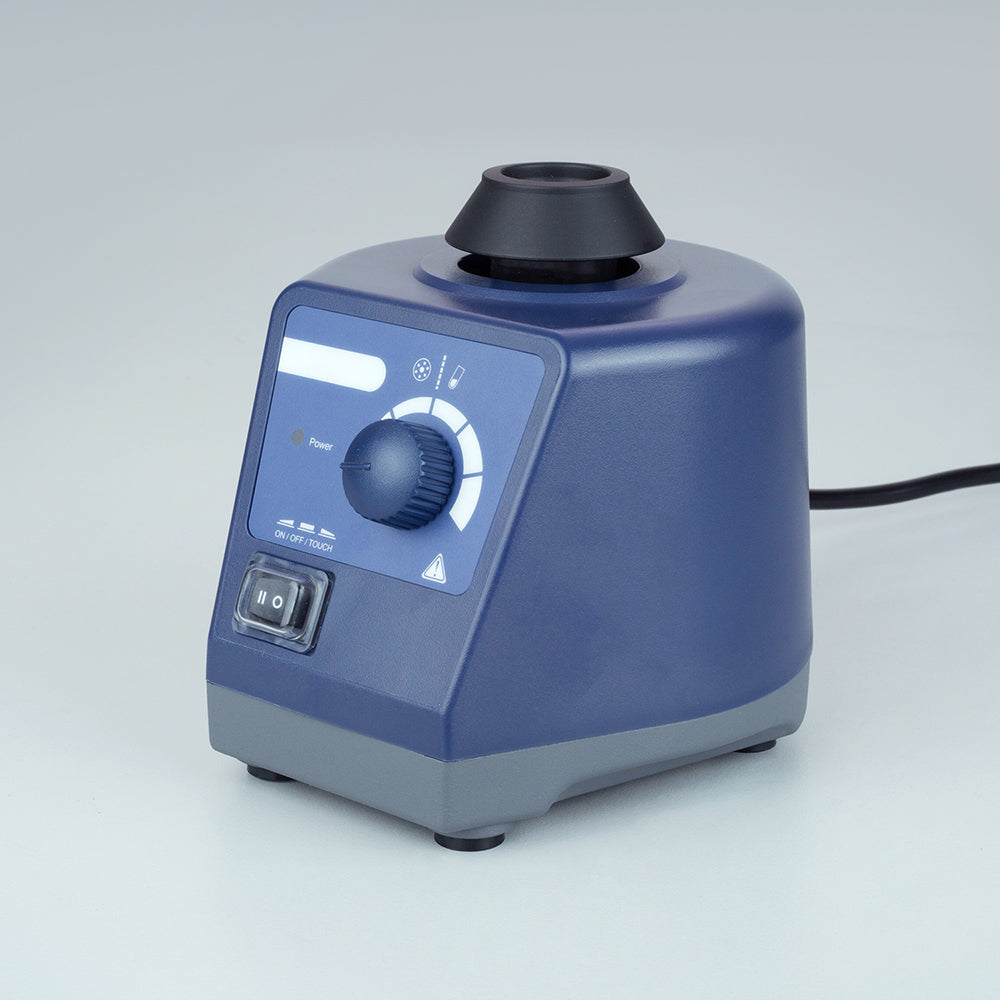

A vortex mixer is a compact device that uses a motor to rapidly oscillate a rubber cup or platform. When a test tube or other container is pressed into this cup, the motion creates a vortex (whirlpool effect) in the liquid, thoroughly mixing the contents in seconds.
*Variable speed of 0 to 3,000rpm for gentle shaking to rapid mixing of samples
*Touch or continuous operation mode
*Includes a standard top head for mixing a single test tube or other small vessel up to 30mm in diameter
*Electronic speed control maintains constant speed even during changes in load

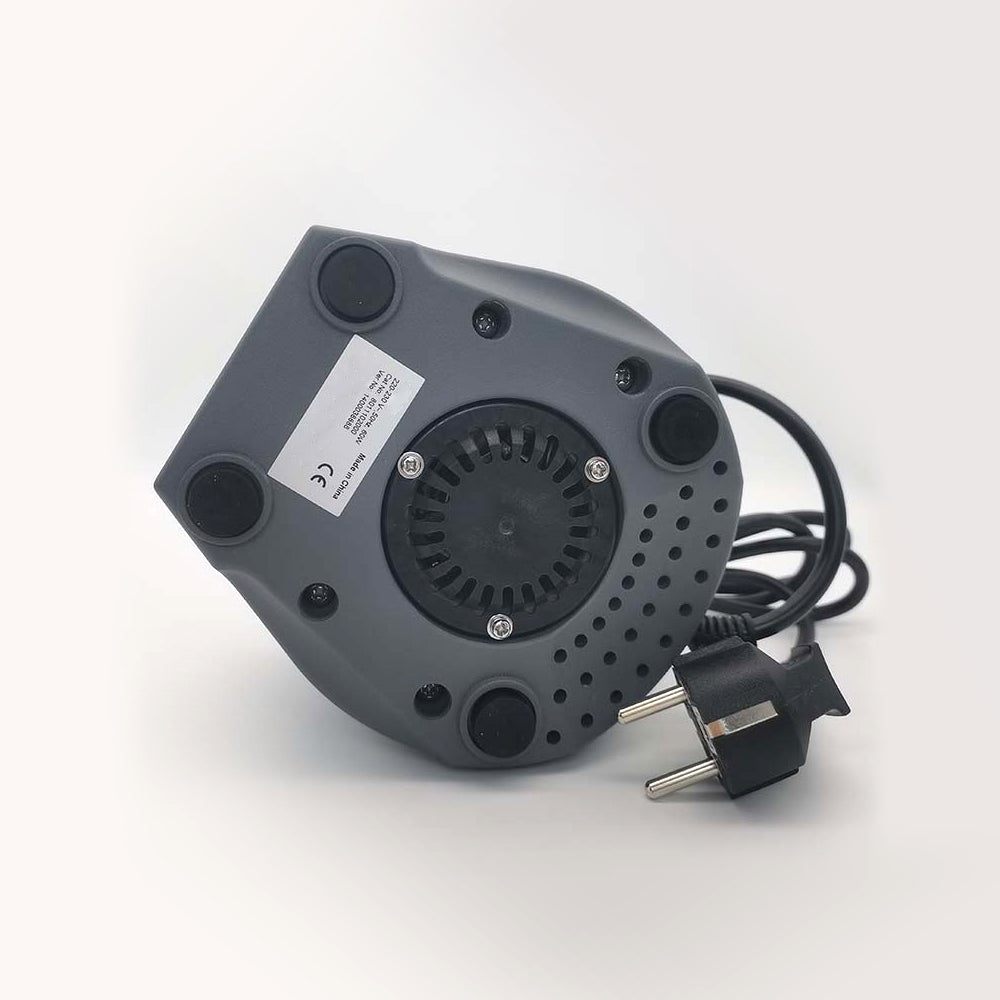

*Steel base with specially designed vacuum suction feet provides stability and dampens vibration
*Robust aluminum-cast construction
Specifications:
| Voltage | 100-120V/200-240V,50/60Hz |
| Power | 60W |
| Mixing motion | Orbital |
| Orbital diameter | 4mm |
| Motor type | Shaded pole motor |
| Motor rating input | 58W |
| Motor rating output | 10W |
| Speed range | 0~3000rpm |
| Speed display | Scale |
| Run type | Touch operation/Continuous |
| Dimension[W x H x D] | 127x130x160mm |
| Weight | 3.5kg |
| Permissible ambient temperature | 5-40°C |
| Permissible relative humidity | 80%RH |
| Protection class | IP21 |
