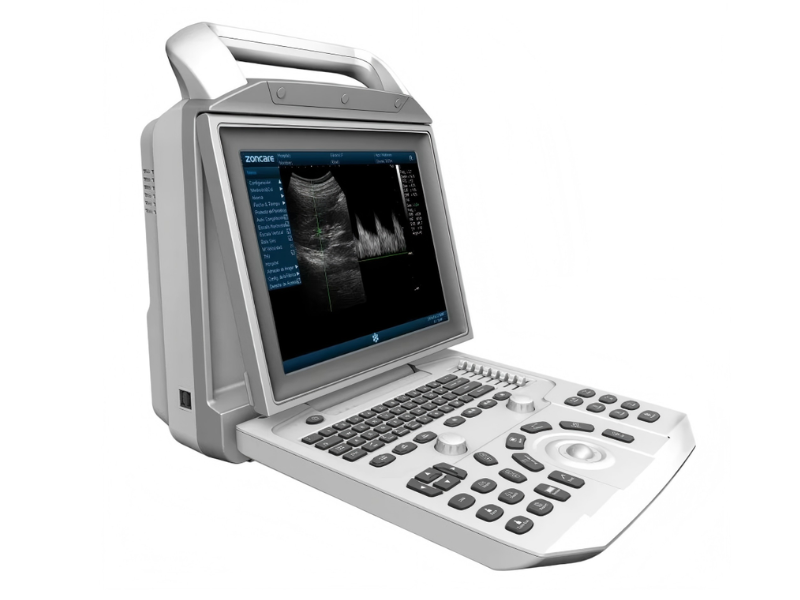

Zoncare VU1 Portable B&W Veterinary Ultrasound System

The Zoncare VU1 is a portable black-and-white veterinary ultrasound system engineered for field practice, farm calls, and clinic-based reproductive and abdominal imaging. It combines a 12-inch medical LCD monitor with 90° rotation, dual waveform imaging technology, and species-specific presets for feline, canine, ovine, equine, bovine, swine, and user-defined patients—bringing grayscale imaging capability into a compact, battery-powered enclosure designed for mobility.

The VU1 is positioned for veterinarians who need dependable B-mode and PW Doppler imaging outside a fixed ultrasound room. Its built-in battery supports on-farm and in-field examinations where mains power may be unavailable, and two active probe connectors allow convex, micro-convex, linear, and intraractal probes to be used across abdominal, reproductive, and small-parts applications. The transducer auto-freeze protection prevents probe damage during transport and storage, reducing service downtime.

The imaging chain incorporates double waveform imaging technology alongside THI (Tissue Harmonic Imaging) , SRI (Speckle Reduction Imaging) , TSI (Tissue Specific Imaging) , and Smooth processing—tools intended to enhance low-contrast structures and organ boundaries within the physical limits of the installed probe. PW mode with spectrum display supports flow assessment in cardiac and perfusion-related applications, and Auto Optimize and Q Guide support standardized image settings across users.

The VU1 supports B-mode and PW Doppler imaging, with biopsy function, image magnification, and full-screen display. Reports can be automatically generated in BMP format and exported via USB, and the system includes two USB ports for data transfer and peripheral connectivity. A backlit keyboard and two probe holders support low-light operation and organized probe management.

Regulatory status: The VU1 is a veterinary ultrasound system intended for animal imaging. No FDA 510(k) clearance, CE MDR certificate, or China NMPA registration specific to the VU1 model name was identified in the public databases during preparation of this page. Zoncare documentation does not list a specific regulatory clearance number for this model in the sources reviewed. No independent peer-reviewed clinical validation study specific to the VU1 was identified in the public literature during preparation of this page. Availability, labeling, and import requirements vary by market; confirm local veterinary device regulations and registration status before purchase.

Key Features & Benefits

Portable Battery-Powered Design for Field and Farm Use

The VU1 is built for mobility, with a compact, streamlined enclosure and a built-in battery that supports examinations on farms, in vehicles, and at remote locations where mains power may not be available. The 12-inch medical LCD monitor rotates 90°, supporting landscape and portrait viewing orientations, and the backlit keyboard supports operation in low-light environments such as barns and field stations. Two probe holders keep probes organized during transport.

Double Waveform Imaging with THI, SRI, TSI, and Smooth

The VU1 incorporates double waveform imaging technology designed to enhance low-contrast structures, alongside THI (Tissue Harmonic Imaging) , SRI (Speckle Reduction Imaging) , TSI (Tissue Specific Imaging) , and Smooth processing. These tools are intended to improve contrast resolution and reduce artifacts, supporting clearer organ boundaries and improved visualization of small focal changes in abdominal and reproductive examinations—within the physical limits of the probe and the clinician’s scanning technique.

Species-Specific Presets for Mixed and Large Animal Practice

The VU1 includes dedicated presets for feline, canine, ovine, equine, bovine, swine, and user-defined species, supporting parameter configurations that match different animal sizes and tissue characteristics. This allows a single system to serve small animal clinics, mixed practice, and livestock reproductive work without requiring separate ultrasound platforms for each species group.

Broad Probe Compatibility: Convex, Micro-Convex, Linear, and Intraractal

The VU1 supports two active probe connectors and a range of veterinary-dedicated probes:

The intraractal probe supports bovine and equine reproductive examinations, including invasive reproductive work where a dedicated rectal probe is required. Two probe holders support organized storage and transport.

PW Doppler with Spectrum Display for Flow Assessment

The VU1 supports PW (Pulsed Wave) Doppler mode with spectrum display, enabling flow assessment in cardiac evaluations and organ perfusion studies where grayscale imaging alone may not provide sufficient information. The spectrum display supports velocity waveform review within the clinician’s standard Doppler workflow.

Auto Optimize, Q Guide, and Biopsy Function for Workflow Efficiency

Auto Optimize supports automatic image parameter adjustment, and Q Guide provides in-system operational guidance for users who perform ultrasound examinations intermittently. The biopsy function supports ultrasound-guided procedures, and image magnification and full-screen display support detailed structure review. Automatic BMP report generation and USB export simplify documentation and record transfer in clinic and field settings.

Transducer Auto-Freeze Protection

The transducer auto-freeze protection mechanism is designed to protect probes from accidental damage during transport and storage, reducing service downtime and probe replacement costs. This is particularly relevant for mobile and field-based practices where equipment is frequently moved between locations.

Technical Specifications

Why Choose the Zoncare VU1?
