Global Healthcare Medical

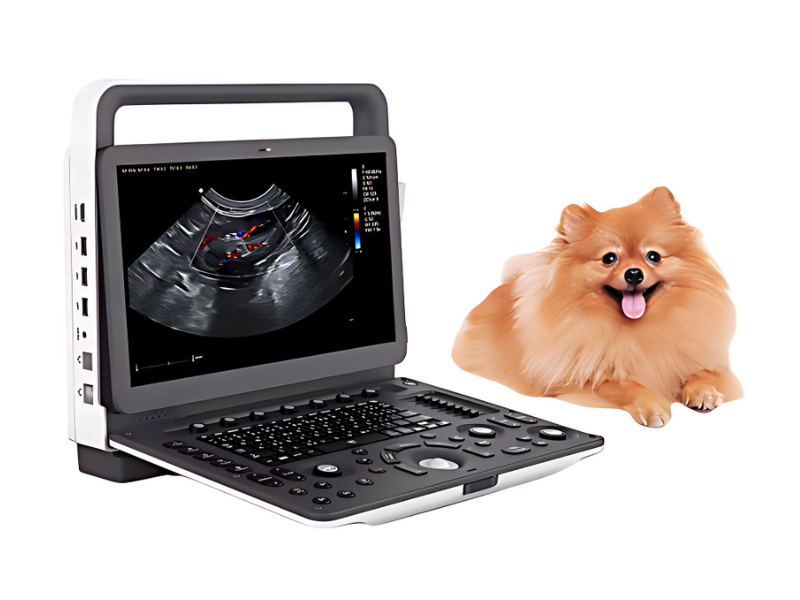

VU3 Veterinary Portable Classic Color Doppler Ultrasound System #

VU3 Veterinary Portable Classic Color Doppler Ultrasound System #

Compact. Dedicated. Professional Imaging for Daily Diagnostics.

1. Portable & Highly Versatile

  • Lightweight Design – Allows for versatility in various clinical scenarios.

  • Compact and Dedicated – Purpose-built for veterinary practice.

  • Exceptional Imaging Quality – In a portable, go-anywhere package.

  • Wide Range of Applications – From small to large companion animals.

2. High-Performance Transducers for Every Application

Probe Model Frequency Type Clinical Application
8P2MA 3.5-15.0 MHz Single crystal phased array Cardiology of felines
3P2PA 1.0-6.5 MHz Phased array Cardiology of big-sized canines
5P1PA 2.5-13.0 MHz Phased array Cardiology of small/medium canines
6C1PD 3.5-12.0 MHz Micro convex array Abdomen, Cardiology, Reproduction
3C5PD 1.0-7.5 MHz Convex array Abdomen, Reproduction
10L2PD 4.2-16.0 MHz High-frequency linear Abdomen, Small Parts
7L4PD 4.2-15.0 MHz Linear array Abdomen, Small Parts

3. Specialized Software & Measurement Suite

  • Comprehensive Measurement Suite – For precise daily diagnostics.

  • Professional Veterinary Measurement Formulas – Species-appropriate calculations.

  • Pre-set Inspection Conditions – For different animals and applications.

  • Powerful Data Management System – Organize and retrieve patient records efficiently.

  • Rich Reporting Information – Comprehensive exam documentation.

4. Powerful Intelligent Functions

  • One-Key Automatic Optimization – Enhances image clarity instantly.

  • Automatic Spectrum Envelope – Streamlines Doppler analysis.

  • Specialized Software Package – Tailored for veterinary workflow.

5. uSeed Platform for Accurate Diagnosis

  • uSeed Metadata Beamforming Imaging Technology – Built on CPU + GPU heterogeneous computing.

  • Metadata Image Storage – Images saved as metadata for powerful postprocessing.

  • Facilitates Accurate Diagnosis – High-end imaging technology for confident clinical decisions.

6. Advanced Imaging Technologies

Technology Clinical Benefit
Frequency Composite Imaging Combines fundamental penetration with harmonic resolution – improves detail and contrast in near & far fields
Pulse Inverse Harmonic Imaging (PIHI) Removes fundamental wave while maximizing second harmonic – increases signal intensity >30% vs. traditional processing, reduces noise/artifacts
ZClear Adaptive Spatial Filtering Real-time edge enhancement + pixel-level noise removal – delivers real, delicate, excellent contrast 2D images

7. Professional Vet-Specific Presets

  • Species-Specific Presets – Optimized settings for different animal types.

  • Application-Specific Presets – Abdomen, cardiology, reproduction, small parts.

  • Dedicated Veterinary Workflows – Tailored to how veterinarians practice daily.

8. Comprehensive Veterinary Applications

  • Cardiology – Feline and canine (all sizes) with dedicated phased array probes.

  • Abdomen – Liver, spleen, kidney, gastrointestinal imaging.

  • Reproduction – Pregnancy diagnosis, fetal counting, gestational aging.

  • Small Parts – Thyroid, lymph nodes, tendons, ocular structures.

  • Daily Clinical Diagnostics – Significantly enhances everyday practice.

9. Ideal for Multiple Settings

  • Veterinary Clinics & Hospitals – Compact footprint, professional performance.

  • Mobile & Ambulatory Practice – Lightweight for house calls.

  • Emergency & Critical Care – Bring imaging to the patient.

  • Shelter & Rescue Medicine – Cost-effective, portable.

  • Remote & Rural Practice – High-quality imaging where needed.


Section Recommendation
Hero Image Show the VU3 in a veterinary clinical setting – a veterinarian using the portable system to examine a dog or cat. Emphasize the compact, lightweight, dedicated design.
Video Demo Embed short clips showing:
• Portability in action – Carrying the system between exam rooms
• Veterinary-specific presets switching between feline/canine cardiology
• One-key automatic optimization improving image clarity
• Comprehensive measurement suite for precise diagnostics
Technical Specs Tab List: Dimensions, weight (critical for portable positioning), battery life, screen size, probe connectors, uSeed platform (CPU+GPU), imaging technologies (FCI, PIHI, ZClear), connectivity (DICOM, USB), data management specifications.
Veterinary Probe Selection Table Display the 7-probe table prominently – veterinarians need to see species-specific options (feline cardiology, canine cardiology by size, reproduction, small parts). Include probe images if available.
Key Selling Points Bullet list for quick scanning:
✓ Compact & lightweight – True portability for daily use
✓ 7 high-performance probes – Cardiology, abdomen, reproduction, small parts
✓ uSeed platform – CPU+GPU metadata beamforming
✓ Specialized software package – Comprehensive measurement suite
✓ Species-specific presets – Feline, canine (small/medium/large)
✓ PIHI technology – >30% signal intensity improvement
✓ One-key optimization – Instant image clarity enhancement
✓ Automatic spectrum envelope – Streamlined Doppler
✓ Powerful data management – Rich reporting, easy retrieval
✓ Enhances daily diagnostics – Highly effective professional system
Target Audience List ideal users:
✓ Small animal clinics – Compact, dedicated, daily use
✓ Mobile & ambulatory veterinarians – Lightweight for house calls
✓ Emergency & critical care vets – Bedside imaging
✓ Shelter & rescue medicine – Cost-effective, portable
✓ New or growing practices – Professional system without desktop footprint
✓ Remote & rural practice – High-quality imaging on the go
Positioning Statement Create a dedicated callout: "Compact and Dedicated – The VU3 is not a repurposed human ultrasound. It's purpose-built for veterinary daily diagnostics with specialized software, comprehensive measurements, and species-specific presets – all in a portable package."
Comparison Chart (VU3 vs VU3EXP vs VU40) Create a comparison to help buyers choose:
• VU3 (Classic Portable) – 7 probes, lightweight, specialized software, comprehensive measurements, daily diagnostic focus
• VU3EXP (Enhanced Portable) – 8 probes, additional high-frequency linear (8L4PF), extended capabilities
• VU40 (Desktop) – 21.5" screen, motorized panel, splash-resistant, routine exam focus
Position VU3 as the classic, trusted portable for everyday practice – balancing capability, portability, and value.
Daily Diagnostics Focus Emphasize the practical positioning: "Significantly Enhances Daily Clinical Diagnostics – The VU3 is designed for the exams you perform every day. Abdominal scans, cardiac evaluations, pregnancy checks, and small part imaging – all with exceptional quality and portable convenience. A highly effective professional system for busy veterinarians."
One-Key Optimization Emphasize the value: "One-Key Automatic Optimization – No time for complex adjustments in daily practice. One button instantly enhances image clarity so you can focus on the patient, not the settings."
Cardiology Capabilities List the three dedicated cardiac probes:
• 8P2MA (3.5-15.0 MHz) – Single crystal phased array for feline cardiology
• 3P2PA (1.0-6.5 MHz) – Phased array for big-sized canines
• 5P1PA (2.5-13.0 MHz) – Phased array for small/medium canines
Complete cardiac solutions for companion animals – now portable.
Data Management Highlight: "Powerful Data Management System – Rich reporting, easy retrieval, and DICOM connectivity. Seamlessly integrate with your practice management software."
What's in the Box? Suggest including: VU3 portable main unit, selected probes (specify which), probe carry case, battery & charger, power cord, user manual, quick start guide, portable carrying case, optional trolley/cart.
