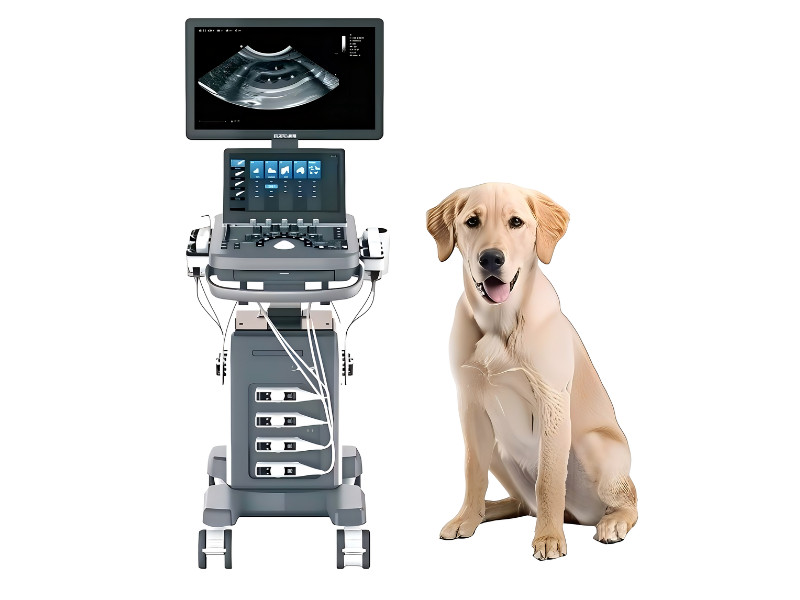

Zoncare VU40 Veterinary Color Doppler Ultrasound System
Zoncare VU40 Veterinary Color Doppler Ultrasound System
The Zoncare VU40 is a cart-based veterinary color Doppler ultrasound system built for small to medium-sized animal hospitals and specialized practices, combining AI-assisted cardiac measurement, a premium uSeed imaging platform, and a broad veterinary-specific probe and preset ecosystem in a single ergonomic cart format. It is positioned below the VU60/VU70 in Zoncare‘s VU series, while retaining the uSeed CPU+GPU heterogeneous computing architecture, Frequency Composite Imaging (FCI) , Pulse Inverse Harmonic Imaging (PIHI) , and ZClear Adaptive Spatial Filtering that define the platform’s image-processing approach.
The VU40‘s Zola AI Smart Assistant is designed for intelligent recognition and automatic measurement of key cardiac indicators, including LVSI, LA/Ao, EPSS, LV(M), Auto IVSd/LVPWd, and valve velocity. These tools are positioned as measurement aids—they support the veterinarian’s review and do not constitute a diagnosis on their own. The system is intended for abdomen, obstetrics, urology, cardiology, and superficial imaging across animals of different sizes, with professional veterinary presets that configure imaging parameters by species.
The hardware configuration includes a 21.5-inch medical LCD monitor (angle-adjustable, foldable), a 13.3-inch high-sensitivity touchscreen, a motorized height- and angle-adjustable control panel, a splash-resistant panel protection film, and 4 universal transducer connectors. DICOM 3.0 and USB 3.0 support data transmission, alongside a built-in DVD drive.
Regulatory status: The VU40 is a veterinary ultrasound system intended for animal imaging. No FDA 510(k) clearance, CE MDR certificate, or China NMPA registration specific to the VU40 model name was identified in the public databases during preparation of this page. Zoncare documentation does not list a specific regulatory clearance number for this model in the sources reviewed. No independent peer-reviewed clinical validation study specific to the VU40 was identified in the public literature during preparation of this page. Availability, labeling, and import requirements vary by market; confirm local veterinary device regulations and registration status before purchase.
Key Features & Benefits
Zola AI Smart Assistant for Cardiac Measurement
The Zola AI Smart Assistant supports intelligent recognition and automatic measurement of key cardiac indicators including LVSI, LA/Ao, EPSS, LV(M), Auto IVSd/LVPWd, and valve velocity. These automated measurements are intended to reduce manual measurement variability and support efficient cardiology workflows in small and medium-sized animal practice. The outputs are measurement aids—clinical interpretation remains with the veterinarian.
uSeed Platform with CPU+GPU Heterogeneous Computing
The uSeed platform uses CPU + GPU heterogeneous computing and stores images as metadata rather than fixed pixel data, enabling post-acquisition parameter adjustment and re-measurement without rescanning the patient. This architecture supports workflow efficiency in departments that review images across multiple sessions or require remote consultation and comparative studies.
FCI, PIHI, and ZClear Imaging Technologies
Frequency Composite Imaging (FCI) combines the penetration of fundamental frequency with the resolution of harmonic frequency to improve detail and contrast resolution in both near and far fields. PIHI removes fundamental wave signal while maximizing second harmonic retention, increasing signal intensity by more than 30% compared to traditional processing and reducing noise and artifacts. ZClear Adaptive Spatial Filtering tracks tissue edge signals in real time to enhance edges, remove noise, and retain valid signals for delicate and excellent contrast. These are image-processing technologies—clinical value depends on proper probe selection and clinician review.
Professional Veterinary Presets and Broad Probe Portfolio
The VU40 includes dedicated veterinary presets that configure imaging parameters by species, with measurement formulas, annotation libraries, body marks, and report templates. The transducer portfolio includes:
| Probe | Type | Frequency | Primary Application |
|---|---|---|---|
| 8P2MA | Single crystal phased array | 3.5–15.0 MHz | Feline cardiology |
| 3P2PA | Phased array | 1.0–6.5 MHz | Large canine cardiology |
| 5P1PA | Phased array | 2.5–13.0 MHz | Small/medium canine cardiology |
| 6C1PD | Micro-convex | 3.5–12.0 MHz | Abdomen, cardiology, reproduction |
| 3C5PD | Convex | 1.0–7.5 MHz | Abdomen and reproduction |
| 10L2PD | High-frequency linear | 4.2–16.0 MHz | Abdomen and small parts |
| 7L4PD | Linear | 4.2–15.0 MHz | Abdomen and small parts |
4 universal transducer connectors allow multiple probes to remain connected and switchable during mixed-specialty workflows.
21.5-Inch Foldable Monitor and Ergonomic Control Panel
The 21.5-inch medical LCD monitor is angle-adjustable and foldable, and the 13.3-inch high-sensitivity touchscreen adjusts for ergonomic viewing. The motorized height- and angle-adjustable control panel supports operation across different scanning positions, and the splash-resistant panel protection film supports reliable cleaning and disinfection.
DICOM 3.0, USB 3.0, and Workflow Tools
The VU40 supports DICOM 3.0 for PACS and hospital information system integration, alongside USB 3.0 ports and a built-in DVD drive. One-key Automatic Optimization and QSave preset management support quick parameter optimization and visualised user-defined presets, and the thumbnail clipboard supports efficient image and video review.
