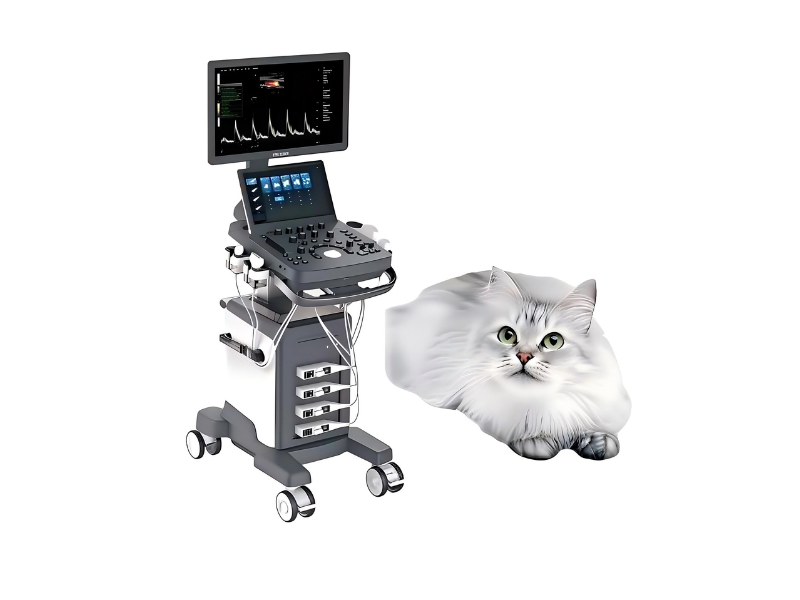

Zoncare VU60 Veterinary Color Doppler Ultrasound System

The Zoncare VU60 is a cart-based veterinary color Doppler ultrasound system engineered for companion animal, equine, and mixed-species practice, delivering species-specific imaging presets, dual cardiac probe configurations, and a broad transducer portfolio covering abdominal, reproductive, cardiac, and small-parts applications. It is built on Zoncare's uSeed metadata beamforming imaging platform, which uses CPU + GPU + FPGA heterogeneous computing to process and store image data as metadata for post-acquisition optimization.

The VU60 is positioned for veterinary clinics and hospitals that need diagnostic-depth ultrasound across different animal sizes and body conditions. The system supports customizable species presets for canines, felines, horses, cattle, sheep, and goats, with the ability to save and export user-defined presets. Dual cardiac probes are referenced in Zoncare's clinical communications, supporting cardiology workflows across feline and canine patients.

The imaging chain incorporates Frequency Composite Imaging (FCI) , Pulse Inverse Harmonic Imaging (PIHI) , and ZClear Adaptive Spatial Filtering to support near-field and far-field detail resolution, contrast resolution, and noise reduction. zMicroflow microvascular imaging is referenced in Zoncare documentation for enhanced color flow signal display in fine vessels within kidney, myocardium, and lymph nodes.

The system features a 21.5-inch medical LCD monitor (angle-adjustable, foldable) , a 13.3-inch high-sensitivity touchscreen (angle-adjustable to 50°) , a motorized height- and angle-adjustable control panel with a splash-resistant panel protection film, and 4 universal transducer connectors. DICOM 3.0, USB 3.0 ports, and a built-in DVD drive support data transmission, alongside thumbnail clipboard for image and video review.

Regulatory status: The VU60 is a veterinary ultrasound system intended for animal imaging. No FDA 510(k) clearance, CE MDR certificate, or China NMPA registration specific to the VU60 model name was identified in the public databases during preparation of this page. Zoncare documentation does not list a specific regulatory clearance number for this model in the sources reviewed. No independent peer-reviewed clinical validation study specific to the VU60 was identified in the public literature during preparation of this page. Availability, labeling, and import requirements vary by market; confirm local veterinary device regulations and registration status before purchase.

Key Features & Benefits

uSeed Metadata Platform with CPU+GPU+FPGA Heterogeneous Computing

The uSeed platform uses CPU + GPU + FPGA hardware architecture with multi-core parallel processing to support fast image processing and post-acquisition optimization. Images are stored as metadata rather than fixed pixel data, enabling parameter adjustment, body mark addition, measurement, and commenting after capture—without rescanning the patient. This is intended to support workflow efficiency in departments that review images across multiple sessions.

Professional Veterinary Presets and Measurement Packages

The VU60 includes dedicated veterinary presets that automatically configure image parameters based on animal species—including canines, felines, horses, cattle, sheep, and goats—with intelligent algorithm platform auto-optimization. User-defined species are supported, with presets that can be saved and exported. Professional veterinary toolkits include measurement formulas, annotation libraries, body marks, and report templates.

Dual Cardiac Probes and Broad Transducer Portfolio

The VU60 supports dual cardiac probes—positioned for feline cardiology and canine cardiology across different body sizes. The transducer portfolio includes:

4 universal transducer connectors allow multiple probes to remain connected and switchable during mixed-specialty workflows.

FCI, PIHI, and ZClear Imaging Technologies

Frequency Composite Imaging (FCI) combines the penetration of fundamental frequency with the resolution of harmonic frequency to improve detail and contrast resolution in both near and far fields. Pulse Inverse Harmonic Imaging (PIHI) removes fundamental wave signal while retaining the second harmonic, increasing signal intensity by more than 30% compared to traditional processing—reducing noise and artifacts and improving tissue contrast resolution. ZClear Adaptive Spatial Filtering tracks tissue edge signals in real time to enhance edges and remove noise, retaining valid signals for real, delicate, and excellent contrast.

zMicroflow Microvascular Imaging

zMicroflow is referenced in Zoncare documentation as enhancing color flow signal display in fine vessels within kidney, myocardium, and lymph node tissue—supporting real-time visualization of microvascular flow changes. This is positioned as an imaging capability—clinical interpretation remains with the veterinarian.

21.5-Inch Monitor, 13.3-Inch Touchscreen, and Ergonomic Design

The 21.5-inch medical LCD monitor is angle-adjustable and foldable, and the 13.3-inch high-sensitivity touchscreen adjusts to 50° for ergonomic viewing. The motorized height- and angle-adjustable control panel supports operation across different scanning positions, and the splash-resistant panel protection film supports reliable cleaning and disinfection. The removable hidden text keyboard and 10 customizable shortcut keys (8 referenced as Q-keys) support efficient workflow customization.

DICOM 3.0, USB 3.0, and Workflow Tools

The VU60 supports DICOM 3.0 for PACS and hospital information system integration, alongside USB 3.0 ports and a built-in DVD drive. One-key Automatic Optimization Technology provides quick parameter optimization, and the QSave preset function supports visualized user-defined presets. Metadata and image postprocessing and thumbnail clipboard support efficient image and video review.

Technical Specifications

Why Choose the Zoncare VU60?
