How a 5-Part Hematology Analyzer With Autoloader Streamlines High-Volume CBC Testing
High-volume clinical laboratories must process large CBC workloads while controlling sample identification, turnaround time, operator workload, repeat testing, and result traceability. Manual tube loading can become a bottleneck even when the analyzer itself has sufficient testing capacity.

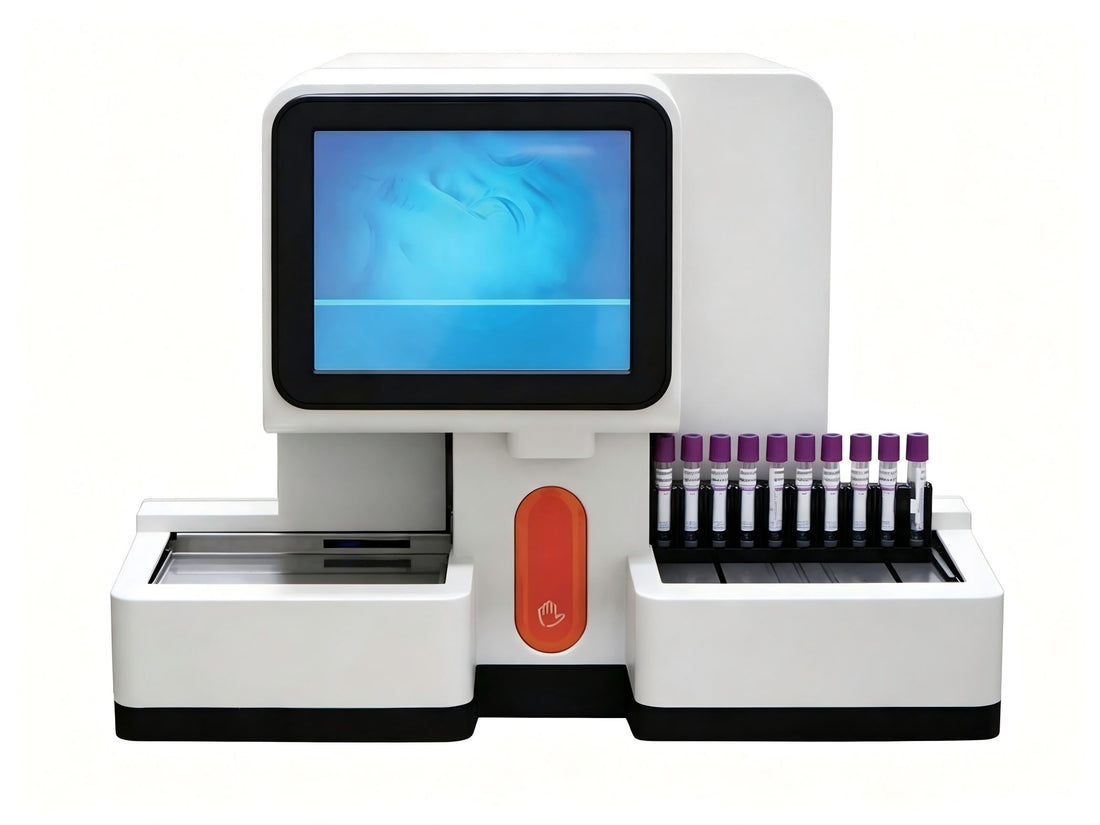

The GHM XN6500 automated 5-part hematology analyzer with autoloader addresses this challenge with a 50-position sample loader and throughput of up to 60 samples per hour. It combines five-part white blood cell differentiation, 25 reportable parameters, four research parameters, four scattergrams, and two histograms.
Designed for trained laboratory professionals, the system supports whole blood, capillary whole blood, and prediluted modes using a specified 20 μL sample volume. This guide explains its analytical principles, clinical applications, operational workflow, purchasing considerations, and supporting consumables.
What Is the GHM XN6500 5-Part Hematology Analyzer and How Does It Work?
A 5-part hematology analyzer is an automated in vitro diagnostic instrument that performs complete blood count testing and differentiates white blood cells into five populations:
- Neutrophils
- Lymphocytes
- Monocytes
- Eosinophils
- Basophils
Compared with a three-part system, a five-part analyzer provides more detailed leukocyte classification. This can reduce the number of routine samples requiring manual differentiation, although abnormal flags and unusual scattergrams may still require microscopy or additional testing.
Flow Cytometry and Laser Light Scatter
The GHM XN6500 uses flow cytometry, laser light scatter, and cytochemical staining for white blood cell differentiation. Cells move through a flow cell in a controlled stream and pass through a laser beam.
Optical detectors measure the resulting scatter signals. The characteristics of these signals help the analyzer distinguish cell populations according to properties such as size, internal complexity, and staining response.
The product uses tri-angle laser scattering and a dual-acceleration flow-cell system. The dual-acceleration design is intended to reduce velocity differences between the sheath flow and blood cells, supporting more stable signal collection.
Dual WBC Differential Channels
The 5-part hematology analyzer uses separate differential and basophil channels. The differential channel supports the classification of lymphocytes, monocytes, neutrophils, and eosinophils, while a dedicated channel measures basophils.
The system uses designated chemical dyes and compatible reagents as part of the analytical process. Reagents, controls, and calibrators must be treated as components of the complete testing system rather than interchangeable general supplies.
RBC and Platelet Measurement
Red blood cells and platelets are counted using electrical impedance. Cells suspended in a conductive diluent pass through a measuring aperture and generate changes in electrical resistance.
The analyzer evaluates the number and characteristics of the resulting electrical pulses. Aperture cleanliness, reagent condition, sample quality, background counts, and calibration can all affect performance.
Non-Cyanide Hemoglobin Measurement
Hemoglobin is measured using a non-cyanide colorimetric method. Red cells are lysed, the released hemoglobin reacts with the designated reagent, and the analyzer measures the optical response.
Non-cyanide chemistry can simplify chemical-safety management, but operators must still follow reagent safety data sheets, protective-equipment requirements, and regulated waste procedures.
Reportable and Research Parameters
The GHM XN6500 5-part hematology analyzer provides 25 reportable parameters:
- WBC
- NEU# and NEU%
- LYM# and LYM%
- MON# and MON%
- EOS# and EOS%
- BAS# and BAS%
- RBC
- HGB
- HCT
- MCV
- MCH
- MCHC
- RDW-CV and RDW-SD
- PLT
- MPV
- PDW
- PCT
- P-LCR
- P-LCC
The system also generates four research parameters: ALY#, ALY%, LIC#, and LIC%. Research parameters should not be treated as validated diagnostic results unless their use is permitted by the destination-market labeling and the laboratory has completed the required verification.
Key Clinical Application Scenarios for a 5-Part Hematology Analyzer
A 5-part hematology analyzer with autoloader is most relevant to laboratories that process enough CBC samples to benefit from continuous rack loading and detailed leukocyte differentiation.
High-Volume Hospital Laboratories
Hospital laboratories receive CBC requests from inpatient wards, outpatient clinics, emergency departments, surgical services, intensive care units, and specialist departments.
The 50-position autoloader allows multiple tubes to be prepared for sequential processing. At up to 60 samples per hour, the GHM XN6500 can support routine hospital workloads while reducing repetitive manual tube presentation.
Actual turnaround time still depends on accessioning, sample transport, quality-control status, autoloader organization, reruns, dilution, abnormal flags, microscopy review, and result authorization.
Hematology and Oncology Services
Patients managed by hematology and oncology departments may require repeated CBC and differential testing. A five-part differential provides separate neutrophil, lymphocyte, monocyte, eosinophil, and basophil results.
Automated counts support clinical monitoring workflows but do not replace morphological examination. Samples with abnormal cells, unexplained cytopenias, unusual scattergrams, or instrument flags may require a peripheral blood smear, manual differential, or specialist testing.
Independent and Reference Laboratories
Reference and commercial laboratories often receive batches of samples from multiple collection sites. A hematology analyzer with autoloader can reduce hands-on tube loading and support more consistent batch processing.
The analyzer stores up to 50,000 results with scattergrams and histograms. HL7-compatible connectivity can support result transfer, but the laboratory must validate patient identifiers, parameter codes, units, flags, reference intervals, and report formats.
Diagnostic Centers and Health Screening Programs
Diagnostic centers may process substantial routine CBC volumes during concentrated collection periods. A 50-position autoloader can help the laboratory organize tube batches and maintain a steadier workflow.
Screening results must be interpreted within the program’s clinical and regulatory framework. An automated blood count is not a standalone diagnosis, and abnormal findings require appropriate clinical follow-up.
Emergency and STAT Testing
Emergency departments frequently request CBC testing. Procurement teams should confirm how the 5-part hematology analyzer handles priority samples when routine tubes are already loaded.
A documented STAT procedure should define tube loading, sample identification, analyzer priority settings, critical-value communication, and return to the routine queue.
Teaching Hospitals
Teaching hospitals can use scattergrams, histograms, flags, and five-part differential data to support laboratory education. Training should connect automated findings with blood-film morphology, quality control, and clinical context.
Research parameters must be clearly separated from reportable clinical parameters to prevent unintended release into patient reports.
Core Technical Advantages of the GHM XN6500 5-Part Hematology Analyzer
The main purchasing question is not simply whether the analyzer reports five white-cell populations. Buyers should evaluate whether the autoloader, throughput, analytical range, sample volume, data management, and reagent system match the laboratory’s workload.
Fifty-Position Autoloader
The 50-position autoloader is the central workflow advantage of the GHM XN6500. It allows multiple sample tubes to be loaded for continuous processing rather than presented individually.
This can reduce hands-on loading during busy periods and allow technicians to focus on quality-control review, abnormal samples, specimen preparation, and result validation.
Autoloading does not eliminate identification risk. Barcode readability, rack position, tube type, cap compatibility, mixing, and patient-data matching must be validated during installation.
Throughput of Up to 60 Samples per Hour
The specified throughput is up to 60 samples per hour. This can provide meaningful capacity for medium- and high-volume laboratories.
Effective throughput may be lower when samples require repeat analysis, predilution, microscopy, maintenance, reruns, or manual verification. Buyers should calculate peak-hour demand and abnormal-sample rates rather than relying only on daily averages.
Low 20 μL Sample Volume
The analyzer requires a specified sample volume of 20 μL for whole blood, capillary whole blood, and prediluted modes.
Low analytical volume may be useful when specimen availability is limited. The total collection requirement will remain higher because the tube must provide sufficient volume for proper mixing, aspiration, repeat testing, and other requested assays.
Twenty-Five Reportable Parameters
The GHM XN6500 provides a comprehensive CBC profile with separate absolute and percentage values for five white-cell populations. Red-cell and platelet indices support evaluation of cell concentration and volume distribution.
Four WBC scattergrams and two RBC/PLT histograms provide graphical information for trained operators. Graphical patterns and flags should guide review rather than be interpreted as definitive diagnoses.
Analytical Performance Specifications
The product page lists the following linearity ranges:
- WBC: 0–100 × 10⁹/L
- RBC: 0–8 × 10¹²/L
- HGB: 0–250 g/L
- PLT: 0–1000 × 10⁹/L
Specified precision includes a CV of no more than 2.0% for WBC within 3.5–15 × 10⁹/L, no more than 1.5% for RBC within 3.5–6.0 × 10¹²/L, and no more than 1.5% for HGB within 110–180 g/L.
Platelet precision is listed as no more than 6.0% for 100–149 × 10⁹/L and no more than 4.0% for 150–500 × 10⁹/L.
These are analyzer-level specifications. Laboratories must verify performance under their own operating conditions and follow assay-specific quality requirements.
Carry-Over Specifications
The product page specifies carry-over of:
- WBC: no more than 0.5%
- RBC: no more than 0.5%
- HGB: no more than 0.6%
- PLT: no more than 1.0%
Carry-over risk should still be considered when a very high-concentration sample precedes a low-concentration sample. Laboratory procedures should define repeat or blanking rules for suspected carry-over.
Touchscreen and Data Management
A 10.4-inch color touchscreen supports analyzer operation and result review. The system stores up to 50,000 results with histograms and scattergrams.
Four USB ports and an Ethernet connection support peripheral devices and data transfer. Printer, keyboard, mouse, and barcode-scanner compatibility should be confirmed for the proposed configuration.
LIS and HL7 Connectivity
The 5-part hematology analyzer supports an HL7-compatible LAN connection. LIS integration can reduce transcription and improve result traceability when implemented correctly.
Before purchase, confirm whether the connection is bidirectional, which HL7 version is supported, whether middleware is required, and how patient demographics, orders, flags, comments, and graphical data are transmitted.
Installation Requirements
The analyzer measures 615 × 495 × 570 mm and weighs approximately 45 kg. Buyers should provide adequate bench strength, ventilation, service clearance, reagent placement, and waste-container access.
The specified operating environment is 10°C–30°C with relative humidity no higher than 70%. Room conditions should remain stable during operation, reagent storage, calibration, and quality-control testing.
Clinical Operation Standard Steps for a 5-Part Hematology Analyzer
The following workflow is a general professional overview. It does not replace the GHM XN6500 user manual, reagent instructions, laboratory procedures, or local regulatory requirements.
1. Perform Startup and Background Checks
Confirm that the 5-part hematology analyzer is within the required environmental conditions. Inspect the sample pathway, autoloader, tubing, waste container, reagent levels, and maintenance status.
Run the required background check and investigate results outside acceptable limits before processing controls or patient samples.
2. Verify Reagents and Supplies
Confirm the identity, lot number, expiration date, onboard stability, storage conditions, and available volume of each reagent.
The product page lists the following reagent configuration:
- Diluent: 20 L
- Lyse 60DIFF: 500 mL
- Lyse 60LH: 100 mL
- Probe cleanser: two 100 mL containers
Use only the compatible reagent system unless an alternative has been formally authorized and validated.
3. Run Calibration and Quality Control
Use the specified calibrator and appropriate levels of hematology control. Evaluate quality-control results according to the laboratory’s documented rules before releasing patient data.
Calibration should be performed at the required frequency and after events specified by the manufacturer, such as major maintenance or relevant component replacement.
The WHO Laboratory Quality Management System handbook emphasizes quality processes across pre-examination, examination, and post-examination activities.
4. Inspect and Mix Samples
Verify patient identifiers, tube type, collection time, sample volume, and specimen condition. Gently mix EDTA whole-blood samples according to the validated procedure before loading.
Clotted, leaking, mislabeled, inadequately filled, or excessively delayed samples should be managed under the laboratory’s rejection and escalation policy.
5. Load the Autoloader
Arrange tubes in the 50-position loader according to the validated rack procedure. Confirm that tube dimensions, caps, labels, and barcode placement are compatible with automated processing.
Ensure every physical tube matches the electronic order. Barcode automation reduces manual entry but does not replace positive specimen identification.
6. Process Routine and Priority Samples
Begin the automated run and monitor instrument status, reagent levels, autoloader movement, error messages, and sample flags.
Use the validated STAT workflow for urgent samples. Avoid manually interrupting the loader unless the procedure permits it.
7. Review Results and Graphical Data
Review CBC parameters, five-part differential results, scattergrams, histograms, flags, critical values, and consistency with previous results.
Samples with unexpected findings may require repeat analysis, dilution, specimen inspection, blood-film review, manual differential counting, or referral for specialized testing.
8. Separate Research Parameters
ALY#, ALY%, LIC#, and LIC% are listed as research parameters. Configure the LIS and reports so that these parameters are not released as routine clinical results unless their use is authorized and validated.
Reportable and research fields should be clearly distinguished during interface validation.
9. Authorize and Transmit Results
Qualified laboratory personnel should confirm acceptable quality control before authorizing results. Verify that LIS transmission preserves parameter names, units, flags, reference intervals, and patient identifiers.
Critical results should follow the institution’s notification and documentation procedure.
10. Complete Cleaning and Maintenance
Perform daily cleaning, probe maintenance, waste disposal, and shutdown procedures. Document preventive maintenance and corrective actions.
Persistent background errors, control failures, clogs, optical errors, or autoloader faults should be escalated to qualified technical support.
Who Should Purchase a 5-Part Hematology Analyzer?
A 5-part hematology analyzer with autoloader is intended for professional laboratories that need detailed WBC differentiation and sustained CBC processing capacity.
Medium and Large Hospital Laboratories
Hospitals with consistent CBC volume may benefit from the 50-position autoloader and detailed five-part differential. Buyers should compare the specified 60-sample-per-hour throughput with actual peak demand.
Independent and Reference Laboratories
Reference laboratories processing batches from multiple collection sites can use the autoloader to reduce repetitive handling. LIS and barcode integration are particularly important in these environments.
Hematology and Oncology Clinics
Specialist services that require separate neutrophil, lymphocyte, monocyte, eosinophil, and basophil values may prefer a five-part system over basic three-part differentiation.
Microscopy and specialist review remain necessary for flagged or morphologically abnormal specimens.
Diagnostic Centers
Diagnostic centers with concentrated morning collection periods may benefit from continuous rack loading. The analyzer’s 50,000-result storage can support local record access, although it should not replace the laboratory’s primary information-management and backup systems.
Medical Equipment Distributors
Distributors should verify market registration, documentation language, reagent import requirements, installation capability, operator training, after-sales support, and spare-parts availability.
The analyzer is not intended for home use or consumer self-testing.
Frequently Asked Clinical and Purchasing Questions About a 5-Part Hematology Analyzer
1. What Does the GHM XN6500 5-Part Hematology Analyzer Measure?
The system provides 25 reportable CBC parameters, including separate neutrophil, lymphocyte, monocyte, eosinophil, and basophil results. It also reports red-cell, hemoglobin, and platelet parameters.
Four additional ALY and LIC values are designated as research parameters.
2. What Is the Benefit of the 50-Position Autoloader?
The autoloader enables sequential processing of up to 50 loaded tube positions. This reduces repetitive manual tube presentation and can support more consistent batch processing.
Laboratories must still validate barcode recognition, tube compatibility, sample mixing, STAT access, and rack organization.
3. How Is a Five-Part Analyzer Different From a Three-Part Analyzer?
A three-part system groups WBCs into lymphocytes, mid-sized cells, and granulocytes. A five-part hematology analyzer separately reports neutrophils, lymphocytes, monocytes, eosinophils, and basophils.
Five-part differentiation is generally more suitable for laboratories managing complex patient populations or higher abnormal-sample volumes.
4. What Sample Types and Volumes Are Supported?
The GHM XN6500 supports whole blood, capillary whole blood, and prediluted modes. The specified analytical sample volume is 20 μL.
Confirm compatible collection tubes, anticoagulants, minimum tube volume, aspiration requirements, and pediatric procedures before installation.
5. What Is the CBC Testing Throughput?
The analyzer has a specified throughput of up to 60 samples per hour. The 50-position loader supports continuous tube processing.
Actual productivity depends on sample quality, repeats, STAT handling, maintenance, abnormal flags, and microscopy review.
6. Which Reagents Are Required?
The listed reagent system includes 20 L diluent, 500 mL Lyse 60DIFF, 100 mL Lyse 60LH, and probe cleanser.
Request reagent consumption per test, onboard stability, storage requirements, expiration dates, shipping classification, and local supply lead times.
7. Does the 5-Part Hematology Analyzer Support LIS Integration?
The product page lists an HL7-compatible LAN connection, four USB ports, and one Ethernet connection.
Confirm bidirectional communication, interface specifications, middleware, graphical-data transfer, barcode support, and validation services before purchase.
8. Is the GHM XN6500 FDA Cleared, CE Marked, or ISO Certified?
The reviewed product page does not list FDA clearance, CE marking, or a specific ISO certificate. A calibration certificate is included, but this does not establish market authorization.
Request the current declaration of conformity, registration documents, intended-use statement, labeling, and quality-system certificates. The FDA overview of IVD regulation explains that IVD requirements depend on device classification, intended use, and destination market.
9. What Is the GHM XN6500 Hematology Analyzer Price?
The product page currently lists the analyzer at US$9,600. Shipping, customs duties, taxes, installation, controls, calibrators, ongoing reagents, and optional peripherals may be additional.
Request a formal quotation because pricing and availability may change.
10. What Are the Delivery Time and Warranty?
The product page states an estimated lead time of approximately 7–30 days, depending on quantity and order requirements. It also lists a one-year warranty.
Confirm coverage, exclusions, installation responsibility, remote support, response time, spare parts, and international service arrangements in writing.
Supporting Consumables and Matching Devices for a 5-Part Hematology Analyzer
A complete procurement plan should include ongoing reagent supply, hematology controls, calibrators, cleaning materials, collection tubes, printer supplies, and technical support.
Analyzer-Specific Reagents
The GHM XN6500 uses diluent, differential lyse, hemoglobin-channel lyse, and probe cleanser. These components should be sourced as a compatible system.
The listed package includes a reagent starter kit, but purchasers should confirm pack sizes, included quantities, freight requirements, and estimated startup capacity.
Controls and Calibrators
Multi-level hematology controls are needed to monitor analytical stability. A compatible calibrator is required according to the manufacturer’s calibration schedule.
Controls and calibrators should be managed under documented receiving, storage, lot-verification, temperature-monitoring, and expiration procedures.
General Laboratory Consumables
Supporting supplies may include EDTA tubes, sample racks, barcode labels, pipette supplies for predilution, gloves, cleaning materials, waste containers, and printer supplies.
Buyers can review the laboratory consumables collection and diagnostic consumables collection. Compatibility must be confirmed before ordering.
Compact Five-Part Alternative
Laboratories that need five-part differentiation but not a 50-position autoloader can compare the GHM XN6500 with the GHM H5000 five-part hematology analyzer.
Compare autoloader requirements, footprint, storage, reagent consumption, LIS features, service coverage, and total cost per reportable result.
Lower-Volume Three-Part Alternative
Facilities with lower CBC volume and limited demand for separate eosinophil and basophil reporting may consider the GHM XN3000 three-part hematology analyzer.
The complete hematology analyzer collection provides additional options for different laboratory capacities.
For hospital laboratories, diagnostic centers, reference laboratories, and medical equipment distributors seeking automated batch processing, the GHM XN6500 5-part hematology analyzer with autoloader combines a 50-position loader, 29 parameters, 20 μL sample volume, and throughput of up to 60 samples per hour. Confirm regulatory documentation and reagent supply, then request a quote for the analyzer, consumables, shipping, installation, and support package.
