How the GHM RD-171 Semi-Auto Biochemistry Analyzer Supports Routine Testing in Small Laboratories
Small clinical laboratories need reliable chemistry testing without the footprint, workflow complexity, and acquisition cost of a high-throughput automated platform. For clinics, satellite laboratories, teaching facilities, and low-volume hospital departments, a semi-auto biochemistry analyzer can provide a practical balance between manual control and automated photometric measurement.

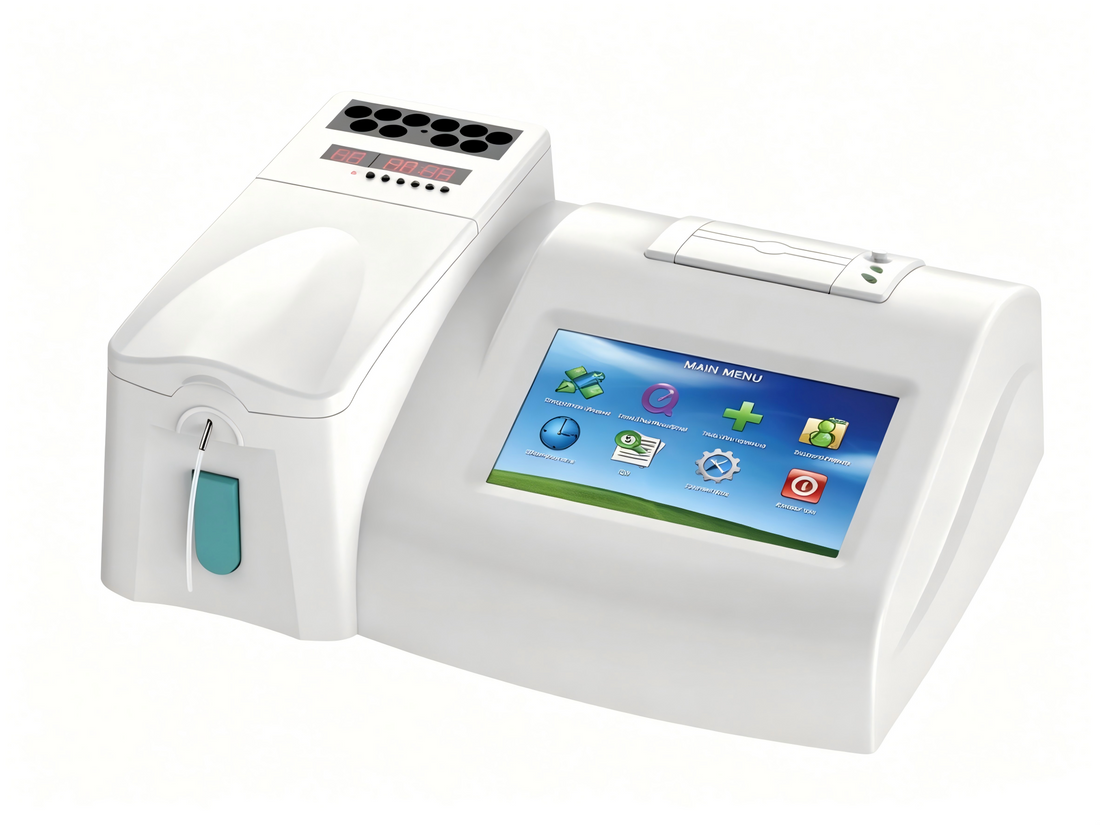

The GHM RD-171 semi-auto biochemistry analyzer is a compact clinical chemistry instrument designed for routine biochemical assays. It combines seven standard wavelengths, a 32 μL quartz flow cell, multiple temperature settings, a touchscreen interface, an integrated printer, and LIS-compatible communication ports.
This guide explains how the GHM RD-171 works, where it may fit within a laboratory, which technical specifications matter, and what procurement teams should verify before purchasing laboratory biochemistry equipment.
What Is the GHM RD-171 Semi-Auto Biochemistry Analyzer and How Does It Work?
A semi-auto biochemistry analyzer is an in vitro diagnostic laboratory instrument used to measure optical changes produced by biochemical reactions. Unlike a fully automated analyzer, it normally requires the operator to prepare specimens, add reagents, manage incubation steps, and introduce the reaction mixture into the measuring system.
Photometric Measurement Principle
Many routine clinical chemistry assays produce a color change proportional to the concentration or activity of a target analyte. The analyzer directs light at a selected wavelength through the prepared reaction mixture and measures how much light is absorbed.
The resulting absorbance value is interpreted using the programmed assay parameters, calibration data, reagent instructions, and calculation method. Depending on the reagent protocol, laboratories may perform endpoint, fixed-time, or kinetic measurements.
The GHM RD-171 semi-auto biochemistry analyzer includes seven standard wavelengths:
- 340 nm
- 405 nm
- 492 nm
- 510 nm
- 546 nm
- 578 nm
- 630 nm
An 800 nm wavelength is listed as optional. This optical range can support many routine clinical chemistry methods, provided the selected reagent, wavelength, calibration procedure, specimen type, and analyzer settings have been validated together.
Clinical Role and Limitations
A semi-auto biochemistry analyzer does not independently diagnose a patient or determine treatment. It produces analytical results that qualified laboratory professionals and clinicians interpret alongside clinical history, physical examination, reference intervals, and other diagnostic findings.
The analyzer should only be operated by trained personnel under an established laboratory quality management system. Assay-specific reagent instructions, calibration requirements, quality-control procedures, and local regulatory requirements remain authoritative.
Key Clinical Application Scenarios for a Semi-Auto Biochemistry Analyzer
The GHM RD-171 semi-auto biochemistry analyzer is positioned for small clinics, emergency departments, teaching laboratories, and other settings where moderate automation is needed without the cost or capacity of a large random-access system.
Small Clinics and Physician-Office Laboratories
A biochemistry analyzer for small clinics can support routine chemistry testing when the facility has qualified laboratory staff and an appropriate testing license. Common assay categories may include:
- Liver function testing
- Kidney function testing
- Blood glucose measurement
- Lipid profile testing
- Enzyme activity assays
- Total protein and albumin testing
- Other compatible colorimetric chemistry assays
The actual test menu is determined by locally available reagents, validated methods, specimen requirements, and regulatory authorization. Buyers should not assume that wavelength compatibility alone confirms assay compatibility.
Low-Volume Hospital and Satellite Laboratories
A semi-auto biochemistry analyzer may be suitable for hospital departments that process limited daily chemistry volumes or need decentralized testing support. Its compact design can be useful where bench space is restricted.
The RD-171 measures 358 × 282 × 141 mm and weighs approximately 4 kg. These dimensions make it easier to position in a smaller laboratory than a floor-standing or high-throughput chemistry system.
It may also serve as a backup platform for selected validated assays. However, laboratories should establish backup procedures, method-comparison requirements, result-reporting rules, and maintenance responsibilities before using any analyzer as a contingency system.
Emergency and Urgent-Care Laboratory Workflows
The product is promoted for emergency-room environments, but suitability depends on the institution’s test menu and turnaround-time requirements. Because sample preparation and reagent handling remain operator-dependent, a semi-auto biochemistry analyzer may not match the speed or walk-away automation of a dedicated emergency chemistry platform.
Facilities should evaluate staffing, assay preparation time, centrifugation requirements, calibration status, quality-control frequency, and result transmission before assigning the analyzer to urgent testing.
Teaching and Laboratory Training Facilities
The manual preparation and automated reading workflow can help trainees understand core concepts such as wavelength selection, absorbance, reaction timing, calibration, quality control, and carry-over prevention.
Teaching laboratories must still follow biosafety procedures. Human specimens, quality-control materials, and chemical reagents should be handled according to institutional policies and manufacturer instructions.
Veterinary Laboratories
Veterinary clinics may be interested in compact chemistry equipment, but the reviewed product page does not specify veterinary intended use. A veterinary laboratory should confirm that the instrument, reagents, calibration approach, reference intervals, and specimen types have been validated for the target animal species before purchase.
Core Technical Advantages of the GHM RD-171 Semi-Auto Biochemistry Analyzer
Selecting a semi-auto biochemistry analyzer requires more than comparing purchase prices. Procurement teams should review the optical system, reaction temperature, carry-over specification, interface options, maintenance needs, and compatibility with their intended assays.
Seven-Wavelength Optical System
The seven standard wavelengths cover a broad portion of routine photometric chemistry methods. This offers more flexibility than a basic single-purpose photometer and allows the laboratory to program different compatible assays on one platform.
The specified linear absorbance range is 0–3.5 Abs. Absorbance is displayed to 0.001 Abs, while calculation resolution is listed as 0.0001 Abs. These specifications describe the analyzer’s measurement and display capabilities; they do not replace assay-specific analytical performance studies.
Quartz Flow Cell and Flexible Sample Volume
The GHM RD-171 uses a 32 μL quartz flow cell. Quartz provides optical clarity across relevant wavelengths and can support repeated routine measurements when cleaned and maintained correctly.
The listed adjustable sample-volume range is 0–1000 μL. Actual sample and reagent volumes must follow the applicable reagent instructions and validated laboratory procedure. Operators should use calibrated pipettes because manual pipetting variation can directly affect results.
Carry-Over and Repeatability Specifications
The product page specifies carry-over of no more than 1% and repeatability of no more than 3%. These values can help procurement teams compare the RD-171 with other compact analyzers.
However, analyzer specifications should not be interpreted as guaranteed performance for every assay. Each laboratory should verify precision, reportable range, reference intervals, carry-over risk, and method comparison as required by its quality system and local regulations.
Multiple Temperature Settings
The semi-auto biochemistry analyzer supports 25°C, 30°C, and 37°C temperature settings. This flexibility can accommodate different endpoint and kinetic reagent protocols.
Temperature selection must match the assay instructions. Laboratories should also verify temperature stability during installation, preventive maintenance, and troubleshooting.
Touchscreen, Printer, and Connectivity
A 7-inch touchscreen provides access to assay parameters, results, and operating settings. The integrated thermal printer allows laboratories to produce result records without relying on a separate external printer.
USB, LAN, and RS-232 interfaces are available for connection to a computer, printer, or compatible laboratory information system. LIS integration should be confirmed before purchase because interface mapping, middleware, validation, and local cybersecurity policies can affect deployment.
Compact International Configuration
The RD-171 supports 100–240 V, 50/60 Hz power and has a listed consumption of 60 VA. Its compact 4 kg design can simplify installation in facilities with restricted bench space.
The lamp is specified for 2,000 operating hours or six months. Buyers should confirm replacement-lamp availability, maintenance intervals, spare-parts lead times, and local technical support.
Comparison With Manual and Fully Automated Systems
Compared with a basic manual spectrophotometer, the RD-171 provides an integrated touchscreen, programmed calculations, temperature control, printing, and communication interfaces.
Compared with a fully automatic clinical chemistry system, the semi-auto biochemistry analyzer requires more operator involvement in pipetting, reagent preparation, incubation, sample identification, and workflow control. It is generally better suited to lower-volume laboratories where acquisition cost, bench space, and assay flexibility are more important than walk-away throughput.
Clinical Operation Standard Steps for a Semi-Auto Biochemistry Analyzer
The following workflow is a general overview. It does not replace the GHM RD-171 user manual, reagent instructions, laboratory standard operating procedures, or local regulatory requirements.
1. Complete Pre-Run Checks
Confirm that the semi-auto biochemistry analyzer is clean, powered correctly, and within its required operating environment. Inspect the flow cell, tubing, waste container, printer paper, lamp status, and communication connections.
Review maintenance records and verify that required startup procedures have been completed.
2. Select and Verify the Assay Program
Choose the correct assay and confirm the wavelength, reaction mode, temperature, blanking method, calibration data, units, and reference interval.
Do not reuse parameters from another reagent brand without documented validation.
3. Prepare Reagents, Controls, and Specimens
Bring reagents and controls to the temperature specified in their instructions. Inspect expiration dates, lot numbers, storage conditions, and reagent appearance.
Prepare serum, plasma, urine, or other permitted specimens according to the assay instructions. Hemolysis, lipemia, icterus, incorrect anticoagulants, contamination, and delayed separation may affect results.
4. Run the Reagent Blank and Calibration
Perform blanking and calibration at the required frequency. Use compatible calibrators and enter or verify assigned values carefully.
Calibration should be repeated when required by the reagent manufacturer, after relevant maintenance, when reagent lots change, or when quality-control results indicate a possible shift.
5. Run Internal Quality Controls
Test appropriate quality-control levels before reporting patient results. Review results against the laboratory’s acceptable ranges and investigate failures before continuing.
The WHO Laboratory Quality Management System handbook emphasizes that quality processes should cover the pre-examination, examination, and post-examination phases—not only the analyzer reading.
6. Measure Patient Samples
Pipette the required sample and reagent volumes accurately. Observe the specified incubation and reaction times before transferring the reaction mixture into the measuring system.
Prevent bubbles, clots, fibrin, and external contamination from entering the flow cell. Follow the validated sequence for samples with unusually high concentrations to reduce carry-over risk.
7. Review and Release Results
Evaluate quality-control status, reaction flags, absorbance limits, sample integrity, and consistency with previous results. Dilute, repeat, or confirm samples only according to the validated procedure.
Qualified personnel should review results before they enter the patient record.
8. Perform Shutdown and Cleaning
Flush and clean the flow cell using the recommended solution and procedure. Remove waste safely, document maintenance, protect reagents, and shut down the analyzer as instructed.
Incorrect cleaning can cause residue buildup, carry-over, unstable absorbance, or premature flow-cell damage.
Who Should Purchase a Semi-Auto Biochemistry Analyzer?
A semi-auto biochemistry analyzer is most appropriate for facilities that have trained operators but do not require continuous high-volume automation.
Private Clinics and Diagnostic Centers
Private clinics with licensed laboratories may use the RD-171 for a defined routine chemistry menu. Before buying, they should calculate expected daily volume, operator availability, reagent consumption, quality-control cost, and required turnaround time.
Small and Rural Hospital Laboratories
Hospitals with limited test volumes or restricted space may consider the analyzer as a primary low-volume system or a validated backup platform. Service access and spare-parts availability are particularly important for remote facilities.
Medical Schools and Training Laboratories
Teaching institutions can use a semi-auto biochemistry analyzer to demonstrate photometric chemistry principles and quality-control workflows. Specimen safety and instrument maintenance must remain part of the curriculum.
Medical Equipment Distributors
Overseas distributors may purchase the RD-171 for regional laboratory customers. Distributor evaluation should include local registration requirements, documentation language, reagent availability, after-sales support, warranty terms, and replacement-part inventory.
Who Should Not Use It?
The RD-171 is professional laboratory equipment, not a home-use testing device. Consumers should not operate the analyzer for self-diagnosis.
High-volume hospital and commercial laboratories may obtain better productivity from an automated random-access chemistry system.
Frequently Asked Clinical and Purchasing Questions About the Semi-Auto Biochemistry Analyzer
1. What Tests Can the GHM RD-171 Semi-Auto Biochemistry Analyzer Perform?
The seven-wavelength system can support many compatible routine photometric assays, including selected liver, kidney, glucose, lipid, protein, and enzyme tests. The final menu depends on the reagent protocol, required wavelength, sample type, calibration, regulatory status, and local validation.
Request an assay compatibility list before ordering.
2. What Specimen Types Can Be Tested?
Clinical chemistry assays commonly use serum, plasma, urine, or other body-fluid specimens. However, the GHM RD-171 product page does not define one universal specimen list.
Use only the specimen type specified by the selected reagent instructions and validated laboratory procedure.
3. Is a Semi-Auto Biochemistry Analyzer Accurate Enough for Clinical Testing?
Analyzer specifications alone cannot establish clinical accuracy. The RD-171 lists a 0–3.5 Abs linearity range, carry-over of no more than 1%, and repeatability of no more than 3%.
The laboratory must evaluate assay-specific precision, calibration, bias, interference, reference intervals, and reportable range before patient testing.
4. Is the GHM RD-171 FDA Cleared, CE Marked, or ISO Certified?
The reviewed product page does not list FDA clearance, CE marking, or a specific ISO certificate. Buyers should not advertise or register the device as FDA-cleared or CE-marked without current supporting documentation.
Ask Global Healthcare Medical for the declaration of conformity, certificates, intended-use statement, manufacturer information, and destination-market registration documents. FDA requirements for IVD instruments and labeling vary by intended use and market authorization pathway, as explained in the FDA overview of IVD regulation.
5. Does the Semi-Auto Biochemistry Analyzer Connect to an LIS?
The product page lists USB, LAN, and RS-232 connectivity and indicates potential connection to an LIS, PC, or printer.
Before ordering, confirm the communication protocol, data format, interface documentation, middleware requirements, result fields, bidirectional capabilities, and validation support.
6. What Is the GHM RD-171 Semi-Auto Chemistry Analyzer Price?
At the time this guide was prepared, the product page displayed a price of US$1,099, excluding shipping. Product pricing, availability, taxes, import duties, and freight charges may change.
Hospitals and distributors should request a formal quotation based on quantity, destination, accessories, documentation, and support requirements.
7. Which Reagents Can Be Used With the RD-171?
Reagent selection depends on the assay wavelength, reaction mode, temperature, sample volume, calibration method, and local regulatory status. Do not assume that every open-system clinical chemistry reagent is automatically compatible.
Request validated application parameters and confirm whether the quotation includes starter reagents, calibrators, controls, or cleaning solutions.
8. What Consumables Are Required?
Typical operating supplies may include compatible clinical chemistry reagents, calibrators, quality controls, sample tubes, sample cups, pipette tips, wash solution, cleaning materials, and thermal printer paper.
Exact part numbers and replacement schedules should be confirmed with the supplier.
9. How Much Training and Maintenance Are Required?
Operators need training in specimen preparation, pipetting, reagent handling, calibration, internal quality control, flow-cell cleaning, result review, and troubleshooting.
Procurement teams should request the user manual, installation guidance, preventive-maintenance schedule, warranty terms, remote-support process, and replacement-part list.
10. Are Bulk Orders and International Shipping Available?
Global Healthcare Medical serves international medical-equipment buyers and provides quotation support. Freight is not included in the displayed product price.
For bulk purchasing, provide the destination country, required quantity, voltage, preferred Incoterm, registration-document needs, and requested accessories through the medical equipment quotation page.
Supporting Consumables and Matching Devices for a Semi-Auto Biochemistry Analyzer
A complete procurement plan should include the analyzer, validated reagents, quality materials, routine consumables, replacement parts, and a documented support pathway.
Clinical Chemistry Reagents and Quality Materials
The semi-auto biochemistry analyzer requires assay-specific reagents, calibrators, and internal quality controls. Buyers can review the site’s diagnostic consumables, but compatibility must be confirmed before ordering.
Control materials should cover clinically relevant concentration levels. Laboratories should document lot numbers, storage conditions, opening dates, acceptable ranges, corrective actions, and inventory status.
General Laboratory Consumables
Supporting supplies may include specimen tubes, sample cups, calibrated pipettes, pipette tips, cleaning materials, gloves, and printer paper. The laboratory consumables collection provides related products for laboratory workflows.
Consumables that directly contact the analytical pathway should be selected according to the analyzer manual and reagent instructions.
Comparable Semi-Automatic Equipment
Buyers comparing compact systems can also review this semi-automatic chemistry analyzer. Compare wavelengths, photometric range, data capacity, flow-cell configuration, connectivity, dimensions, warranty, and consumable availability rather than relying only on purchase price.
The broader clinical chemistry analyzer collection includes additional systems for different laboratory volumes.
Full-Automation Upgrade Options
Laboratories expecting substantial growth may need automated sampling, reagent refrigeration, random access, higher throughput, and reduced manual pipetting. The GHM-BC3000 full-auto clinical chemistry system is an example of a higher-throughput alternative.
The decision between semi-automatic and fully automatic equipment should be based on workload, staffing, STAT demand, assay mix, cost per reportable result, and service infrastructure.
For clinics, hospital laboratories, teaching facilities, and medical equipment distributors seeking a compact clinical chemistry platform, the GHM RD-171 semi-auto biochemistry analyzer provides seven standard wavelengths, a 32 μL quartz flow cell, multiple temperature settings, integrated printing, and flexible communication interfaces. Review assay compatibility and destination-market documentation, then request a quote for the required quantity, shipping destination, accessories, and support package.
