Clinical Chemistry Analyzers: Fully Automatic, Semi-Auto & POCT Buyer Guide
Why Clinical Chemistry Analyzers Matter
Clinical chemistry analyzers are the backbone of diagnostic laboratories. They measure biochemical indicators in blood, urine, and other body fluids — including liver function, kidney function, blood glucose, lipid profiles, electrolytes, cardiac markers, and enzymes — to help physicians diagnose diseases, evaluate organ function, and monitor treatment effectiveness.
Choosing the right analyzer depends on your laboratory's throughput requirements, testing menu complexity, budget, and space constraints. A small clinic may need a compact semi-automatic analyzer processing 120 tests/hour, while a large reference laboratory may require a modular system capable of 6,400 tests/hour. Global Healthcare Medical's Clinical Chemistry collection spans this entire range with 16 distinct models.
Four Categories of Chemistry Analyzers
| Category | Throughput Range | Models | Typical Setting |
|---|---|---|---|
| Fully Automatic Analyzers | 120 - 6,400 T/H | Biossays C8, GHM-BC3000, Chemray 800/420/380/330/240/120 | Hospitals, reference labs, high-volume clinics |
| Semi-Automatic Analyzers | Manual photometric | RT-1904C, RT-9200, RT-9600, RT-9700 | Small to medium labs, veterinary clinics |
| Coagulation Analyzer | 320 T/H | RAC-1800 | Hematology labs, thrombosis centers |
| POCT & Specialty Devices | 2-minute tests | GHM Lipid US, GHM-100, Handheld Dry Chemistry | Point-of-care, bedside, field testing |
Fully Automatic Biochemistry Analyzers
Fully automatic analyzers handle the entire workflow — sample aspiration, reagent dispensing, mixing, incubation, photometric measurement, and cuvette washing — without operator intervention. They support random access testing, STAT sample priority, and bi-directional LIS connectivity for seamless hospital information system integration.

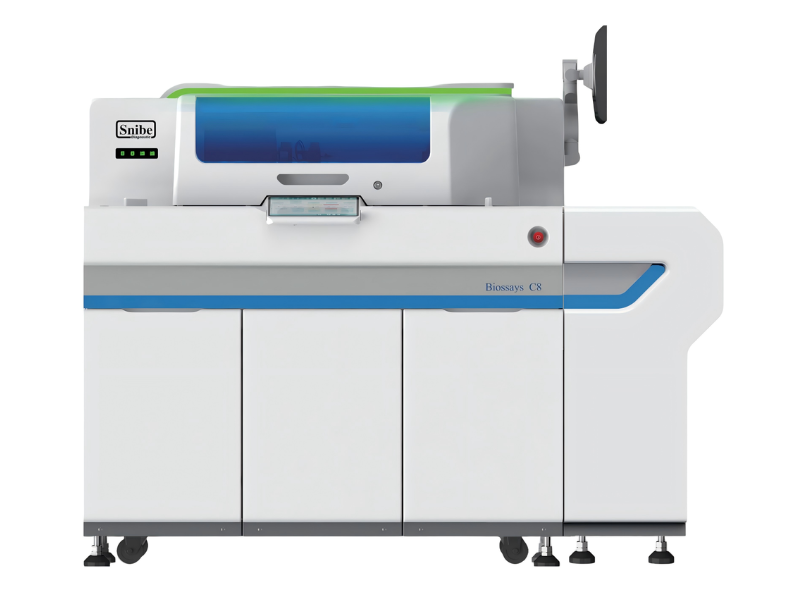

1. Biossays C8 Fully Automatic Biochemistry Analyzer
Price: Request a Quote
Manufacturer: SNIBE • Style: Modular, High-Throughput
| Specification | Details |
|---|---|
| Throughput | 1,600 T/H single module; up to 6,400 T/H with 4 modules |
| ISE Module | Optional, +300 T/H (K+, Na+, Cl-, iCa2+, pH) |
| Sample Capacity | 300 positions |
| Reagent Capacity | R1 + R2, 72 positions each (144 total) |
| Reaction Cuvettes | 362 permanent quartz cuvettes |
| Sample Volume | 1.5-25 µL (0.1 µL steps) |
| Wavelengths | 13 fixed wavelengths (340-800 nm) |
| Reaction Temperature | 37.0°C ± 0.2°C |
| Sample Types | Serum, plasma, urine, CSF |
| Cap Removal Module | Optional (500 tubes/hour decap, 400/hour recap) |
| TLA/LAS Integration | Yes — connects to total lab automation systems |
| MAGLUMI X8 Integration | Yes — combines chemistry + immunoassay (Biolumi CX8) |
| Dimensions | 133 x 118 x 135 cm (biochemistry module), 560 kg |
- Ultra-high throughput: single module 1,600 T/H, expandable to 6,400 T/H with 4 modules
- Modular design: up to 4 modules + optional ISE + optional cap removal module
- Integrates with MAGLUMI X8 immunoassay analyzer for combined chemistry + immuno testing
- Permanent quartz cuvettes — no replacement needed, reduced consumable costs
- 10-step washing technology with independent stirring minimizes cross-contamination
- Advanced aspiration: 1.5 µL micro-sampling with liquid level, clot, and collision detection
- Dual-temperature refrigerated reagent storage (working: 8-12°C, storage: 2-8°C)
- Comprehensive test menu: liver, kidney, lipid, cardiac, diabetes, electrolyte, anemia, immune panels
- Connects to TLA/LAS systems for end-to-end laboratory automation
2. GHM-BC3000 Automatic Biochemistry Analyzer | 300 Tests/Hour
Price: Request a Quote
Style: Fully Automatic, Random Access
| Specification | Details |
|---|---|
| Throughput | Up to 300 T/H (without ISE) |
| Access Mode | Random/continuous, STAT priority |
| Reaction Disc | 81 cuvettes, 5mm optical length |
| Wavelengths | 8 standard (340-670 nm), customizable |
| Cuvette Type | Semi-permanent plastic, auto-cleaning, recyclable |
| Temperature Control | 37°C ± 0.1°C |
| Sample Carry-over Rate | ≤0.5% |
| Cooling System | Semiconductor refrigeration (continuous) |
| Test Methods | End-point, Fixed-time, Kinetic, Dual-reagent, Dual-wavelength |
| LIS Connectivity | Yes — seamless integration |
| QC Charts | Multiple-rule, Cumulative, Twin plot |
- 300 tests/hour throughput with random/continuous testing modes
- STAT emergency sample priority for urgent testing
- 5 test methods: end-point, fixed-time, kinetic, dual-reagent, dual-wavelength
- Semiconductor cooling system for uninterrupted temperature control
- Liquid level detection and full collision protection for probes
- 3 types of QC charts for comprehensive quality assurance
- 81-cuvette reaction disc with automatic cleaning and recycling
- External barcode scanner support for efficient sample identification
3. Chemray 800 Chemistry Analyzer | 800 T/H with ISE
Price: Request a Quote
Manufacturer: Rayto • Style: Fully Automatic, Random Access
| Specification | Details |
|---|---|
| Throughput | 800 T/H (1,200 T/H with ISE) |
| Sample Capacity | 140 positions (inner 25 with 24h cooling) |
| Reagent Capacity | 128 positions, dual reagent tray |
| Reaction Cuvettes | 165 positions, water bath temperature control |
| Wavelengths | 12 wavelengths (340, 405, 450, 505, 540, 570, 600, 635, 670, 700, 760, 795 nm) |
| Sample Volume | 2-45 µL (0.1 µL adjustable) |
| Reagent Volume | 20-350 µL (0.5 µL adjustable) |
| Carryover | ≤0.1% (8-step automatic washing) |
| Reaction Temperature | 37°C ± 0.2°C |
| Refrigeration | 24-hour non-stop cooling at 2-10°C |
| LIS Connectivity | Bi-directional (HL7) |
| Probes | 2 reagent probes + 1 sample probe with collision protection |
| Dimensions | 1150 x 850 x 1250 mm |
- Constant 800 T/H throughput, expandable to 1,200 T/H with ISE module
- 12-wavelength grating photometer system for broad assay coverage
- 140 sample positions with 24-hour non-stop cooling on inner tray
- 128 reagent positions with dual tray design
- 8-step automatic washing with carryover ≤0.1%
- 2 reagent probes + 1 sample probe for efficient workflow
- 4 independent mixing stirrers for thorough homogenization
- Supports up to quadruple reagent chemistries (R3, R4)
- Bi-directional LIS interface (HL7) for seamless data exchange
- Optional built-in barcode scanners for samples and reagents
4. Chemray 420 Chemistry Analyzer | 560 T/H with ISE
Price: Request a Quote
Manufacturer: Rayto • Style: Fully Automatic, Floor-Standing
| Specification | Details |
|---|---|
| Throughput | 360 T/H (560 T/H with ISE) |
| Methodologies | Colorimetric, Turbidimetric |
| Method Types | End-point, Two-point, Kinetic |
| Wavelengths | 12 wavelengths, inverted grating system (340-800 nm) |
| Reagent Storage | 24-hour non-stop refrigerated |
| Washing System | Automatic 10-step, low carryover |
| Probes | 2 reagent probes + 1 sample probe |
| Stirrers | 2 independent mixing stirrers |
| Access Mode | Random access, STAT priority |
| Sample Handling | Pre-dilution and post-dilution support |
| Optional Features | ISE module (K+, Na+, Cl-), internal barcode scanner |
| Configuration | Floor-standing |
| Software | Chinese/English graphical interface |
- 360 T/H constant throughput, 560 T/H with ISE module
- 12-wavelength inverted grating optical system for precise measurement
- 10-step automatic washing system with low carryover
- 24-hour non-stop refrigerated reagent storage
- 2 reagent probes + 1 sample probe + 2 independent stirrers
- Pre-dilution and post-dilution functions for flexible sample handling
- Random access with STAT priority for urgent testing
- Optional ISE module for electrolyte analysis and internal barcode scanner
- Open reagent system for flexible reagent brand selection
5. Chemray 380 Chemistry Analyzer | 560 T/H with ISE
Price: Request a Quote
Manufacturer: Rayto • Style: Fully Automatic, Random Access
| Specification | Details |
|---|---|
| Throughput | 560 T/H (800 T/H with ISE) |
| Methodologies | End-point, Two-point, Kinetic |
| Wavelengths | 12 wavelengths (340-800 nm), grating system |
| Reagent Storage | Onboard refrigerated storage |
| Washing System | 8-step automatic wash |
| Sample Handling | Auto-dilution, liquid level detection |
| Safety Features | Clot detection, collision detection |
| Access Mode | Random access, STAT priority |
| Light Source | Tungsten-halogen lamp |
| LIS Connectivity | Bi-directional |
| Reagent System | Open system design |
- 560 T/H constant throughput, 800 T/H with ISE module
- 12-wavelength grating photometer system (340-800 nm)
- Onboard refrigerated reagent storage for reagent stability
- 8-step automatic washing system minimizes cross-contamination
- Auto-dilution and liquid level detection for reliable sample handling
- Clot and collision detection protect probes and ensure reliable operation
- Random access with STAT priority for flexible workflow management
- Open reagent system supports user-defined profiles and calculation assays
- Bi-directional LIS interface for seamless hospital data exchange
6. Chemray 330 Chemistry Analyzer | 360 T/H
Price: Request a Quote
Manufacturer: Rayto • Style: Fully Automatic, Bench-Top
| Specification | Details |
|---|---|
| Throughput | Up to 360 T/H (200 T/H base model) |
| Optical System | Fully enclosed static fiber-optic spectrophotometry |
| Reagent Storage | 24-hour non-stop refrigerated |
| Washing System | Automatic, low carryover (8-step or 10-step) |
| Access Mode | Random access, STAT priority |
| Reagent System | Open system (closed on request) |
| Optional Features | Internal barcode reader, multi-language software |
| Safety Features | Liquid level detection, anti-collision function |
| Design | Compact bench-top |
- Up to 360 T/H throughput in a compact bench-top design
- Fully enclosed static fiber-optic spectrophotometry for high-precision measurement
- 24-hour non-stop refrigerated reagent storage for continuous operation
- Automatic washing system with low carryover for result integrity
- Random access with STAT sample priority for flexible workflow
- Open reagent system with optional closed system
- Optional internal barcode reader and multi-language software
- Liquid level detection and anti-collision function for reliable operation
7. Chemray 240 Chemistry Analyzer | 240 T/H
Price: Request a Quote
Manufacturer: Rayto • Style: Fully Automatic, Random Access
| Specification | Details |
|---|---|
| Throughput | 240 T/H |
| Sample Positions | 40 |
| Reagent Positions | 40 (refrigerated) |
| Reaction Positions | 81 |
| Wavelength Range | 340-800 nm, up to 12 wavelengths |
| Sample Volume | 3-100 µL (0.5 µL adjustable) |
| Reagent Volume | 20-350 µL (0.5 µL adjustable) |
| Reagent Storage | 24-hour non-stop refrigerated cooling |
| Washing System | Automatic 8-step, low carryover |
| Optical Technology | Holographic concave grating + photodiode array |
| Calibration | One-point, two-point, multi-point linear, non-linear |
| QC | Westgard multi-rules, cumulative sum |
| LIS Connectivity | Bi-directional |
| Optional Features | Barcode scanner, ISE module |
| Certifications | CE, SFDA |
- 240 T/H throughput with 81 reaction positions for walk-away capability
- 24-hour non-stop refrigerated reagent cooling compartment
- Random access with STAT sample priority and auto-repeated test function
- Automatic 8-step washing system with low carryover
- Up to 12 wavelengths (340-800 nm) with holographic concave grating
- 4 calibration methods: one-point, two-point, multi-point linear, non-linear
- Westgard multi-rules QC with cumulative sum support
- Bi-directional LIS communication for hospital system integration
- Open reagent system — compatible with domestic and third-party reagents
- Teflon-coated probe needles for corrosion resistance and low carryover
8. Chemray 120 Chemistry Analyzer | 120 T/H Compact Bench-Top
Price: Request a Quote
Manufacturer: Rayto • Style: Fully Automatic, Compact Bench-Top
| Specification | Details |
|---|---|
| Throughput | Up to 120 T/H |
| Access Mode | Automatic, Random Access |
| Analytical Modes | End-point, Two-point, Kinetic |
| Programming | Open system with user-defined programs |
| Wavelength Range | 320-850 nm |
| Reagent Features | Pre-heating, liquid level detection |
| Operation | True walk-away, labor-saving |
| Software | User-friendly, multi-language support |
| Design | Compact, bench-top |
| Sample Types | Serum, plasma, urine, CSF, other body fluids |
| Sample Volume | Micro-volume (ideal for pediatric/geriatric) |
| Veterinary Version | Available (Chemray-120Vet with 8 preset animal settings) |
- 120 T/H throughput in a compact bench-top footprint
- True walk-away operation — minimizes operator intervention
- Open reagent system with user-defined programs for maximum flexibility
- Reagent pre-heating ensures optimal reaction conditions
- Micro-volume sampling reduces reagent and sample consumption
- Ideal for pediatric and geriatric patients with limited sample volumes
- Multi-language software for international laboratory use
- Dedicated veterinary version (Chemray-120Vet) with 8 preset animal settings
- 3 analytical modes: end-point, two-point, kinetic
Semi-Automatic Chemistry Analyzers
Semi-automatic analyzers require manual sample and reagent handling but offer significant cost savings, compact footprints, and flexible open reagent systems. They are ideal for small to medium-sized clinical laboratories, veterinary clinics, and research institutions that need reliable photometric testing without the investment in fully automated systems.
9. RT-1904C Chemistry Analyzer | Semi-Auto with 160-Test Menu
Price: Request a Quote
Style: Semi-Automatic • Light Source: 6V/10W halogen lamp
| Specification | Details |
|---|---|
| Test Menu | Up to 160 test items |
| Analytical Modes | Kinetic, Fixed Time, Bichromatic End-Point, End-Point (with/without blank) |
| Calibration | Linear, Non-linear |
| Photometric Range | -0.500 to 3.500 Abs |
| Resolution | 0.001 Abs (display), 0.0001 Abs (calculated) |
| Wavelength Accuracy | ±2 nm |
| Temperature Control | 25°C, 30°C, 37°C (±0.5°C) |
| Cross-Contamination | ≤1% |
| Reagent System | Open (flow cell & cuvette modes); closed on request |
| Display | Large color LCD with adjustable angle |
| Operating System | Windows-based with mouse control |
| LIS Connectivity | Bi-directional |
| Veterinary Version | Available (RT-1904CV with 12 animal types) |
| Dimensions | 460 x 330 x 190 mm, 8 kg |
- 160-test menu covering electrolytes, substrates, enzymes, proteins, hormones, and TDA
- 5 analytical modes including bichromatic end-point and dual blank options
- Windows-based operation with mouse control and large color LCD
- Open reagent system supporting both flow cell and cuvette modes
- Comprehensive QC with dual QC and alarm functions
- Built-in self-checking function for system integrity verification
- Optional built-in thermal printer for immediate results
- Veterinary version (RT-1904CV) with 12 animal types and 34 preset tests
- Bi-directional LIS communication for hospital system integration
- Energy-saving automatic lamp switch design
10. RT-9200 Chemistry Analyzer | Semi-Auto with Real-Time Curve Monitoring
Price: Request a Quote
Style: Semi-Automatic • Light Source: Quartz halogen lamp (12V/20W)
| Specification | Details |
|---|---|
| Wavelength Range | 330-800 nm |
| Standard Filters | 340, 405, 492, 510, 546, 578, 630 nm (1 spare slot) |
| Optional Filters | 3 additional filters |
| Bandwidth | ≤8 nm |
| Absorbance Range | -0.500 to 3.500 Abs |
| Resolution | 0.001 Abs (display), 0.0001 Abs (calculated) |
| Wavelength Accuracy | ±2 nm |
| Cross-Contamination | ≤1% |
| Measurement Modes | Single-wavelength, dual-wavelength |
| Reagent System | Open (flow cell & cuvette); closed on request |
| Special Features | Real-time curve monitoring, power-off protection, auto data saving |
| Display | Large LCD with Windows interface |
| Connectivity | RS-232, optional built-in printer |
| Certifications | CE, SFDA |
- Real-time reaction curve monitoring during each test for full visibility
- Power-off protection with automatic data saving — results never lost
- Large LCD display with Windows interface and mouse or keypad control
- 7 standard filters + 3 optional filters (330-800 nm wavelength range)
- Single-wavelength and dual-wavelength measurement modes
- Open reagent system with flow cell and cuvette modes
- RS-232 connectivity and optional built-in thermal printer
- Suitable for clinical and veterinary laboratory applications
11. RT-9600 Chemistry Analyzer | Semi-Auto with Touch Screen & Grating
Price: Request a Quote
Style: Semi-Automatic • Light Source: Halogen lamp (12V/20W)
| Specification | Details |
|---|---|
| Optical System | Fully enclosed grating, continuously adjustable |
| Wavelength Range | 330-800 nm (1nm step resolution) |
| Measurement Range | -0.500 to 3.500 Abs |
| Resolution | 0.001 Abs (display), 0.0001 Abs (calculated) |
| Analytical Methods | End-point, Two-point, Rate, Single-wavelength, Dual-wavelength, Reagent blank, Sample blank, Immunoturbidimetric |
| Display | Large color LCD with touch screen |
| Data Storage | Large-capacity memory |
| Data Transfer | USB port |
| QC | Westgard multi-rules, 3 QC levels |
| Dimensions | 37 x 28.4 x 31.8 cm |
| Weight | 11 kg |
| Certifications | CE, SFDA |
- Continuously adjustable grating (330-800 nm, 1nm steps) for maximum wavelength flexibility
- Large color LCD touch screen for intuitive operation
- Real-time reaction curve monitoring during each test
- 8 analytical methods including immunoturbidimetric for immunoassay applications
- Westgard multi-rule QC with 3 quality control levels
- USB port for data transfer and large-capacity data storage
- Built-in self-checking function for system integrity
- Suitable for veterinary applications
12. RT-9700 Chemistry Analyzer | Semi-Auto High-Precision Grating
Price: Request a Quote
Style: Semi-Automatic • Light Source: Halogen lamp
| Specification | Details |
|---|---|
| Optical System | Fully enclosed grating, continuously adjustable |
| Wavelength Range | 330-800 nm (1nm step resolution) |
| Measurement Range | -0.500 to 3.500 Abs |
| Resolution | 0.001 Abs (display), 0.0001 Abs (calculated) |
| Analytical Methods | End-point, Two-point, Rate, Single-wavelength, Dual-wavelength, Reagent blank, Sample blank, Immunoturbidimetric |
| Data Storage | Large-capacity memory |
| Data Transfer | USB port |
| QC | Comprehensive QC features |
| Dimensions | 42.5 x 38 x 18 cm |
| Weight | 8 kg |
| Certifications | CE, SFDA |
- High-precision continuously adjustable grating (330-800 nm, 1nm steps)
- 0.0001 Abs calculated resolution for precise quantification at low concentrations
- 8 analytical methods including immunoturbidimetric
- Real-time reaction curve monitoring
- USB port for data transfer and large-capacity data storage
- Built-in self-checking function
- Comprehensive QC features for result accuracy
- Suitable for veterinary applications
- Lightweight 8 kg design for portable use
Specialty Analyzers: Coagulation & Lipid Testing
Beyond standard chemistry analyzers, this collection includes specialized instruments for coagulation testing and rapid lipid profiling. These devices serve dedicated diagnostic niches — thrombosis and hemostasis centers, cardiovascular risk assessment, and point-of-care lipid monitoring.
13. RAC-1800 Coagulation Analyzer | 320 T/H Automated
Price: Request a Quote
Style: Fully Automated Coagulation Analyzer
| Specification | Details |
|---|---|
| Comprehensive Throughput | 320 T/H |
| PT Throughput | 188 T/H |
| D-Dimer Throughput | 86 T/H |
| Detection Methods | Clotting, Chromogenic, Immunologic (triple detection) |
| Sample Tray | 55 positions (user-configurable) |
| Reagent Tray | 24 cooling positions + 5 non-cooling positions |
| Cuvette Capacity | 300 cuvettes (auto-loader) |
| Reagent Cooling | <16°C |
| Incubator Positions | 18 |
| Min Reaction Volume | 150 µL |
| Access Mode | Automatic, Random Access, STAT priority |
| LIS Connectivity | Bi-directional |
| Reagent System | Open (closed on request) |
| Optional | Barcode reading for sample and reagent |
| Certifications | CE, SFDA |
- Triple detection technology: clotting, chromogenic, and immunologic methods
- 320 T/H comprehensive throughput with STAT priority for urgent samples
- 300-cuvette auto-loader for extended walk-away operation
- 24-position refrigerated reagent tray (<16°C) with probe pre-heating
- 55-position sample tray with random access and STAT priority
- Comprehensive test menu: PT, APTT, TT, FIB, D-Dimer, FDP, AT-III, PLG, α2-AP, PC, Heparin,凝血因子
- Bi-directional LIS connectivity for seamless data exchange
- Open reagent system for flexible reagent brand selection
14. GHM Lipid US Lipid Testing System | 2-Minute Quantitative Results
Price: Request a Quote
Style: Portable Point-of-Care Lipid Analyzer • SKU: GHM Lipid US
| Specification | Details |
|---|---|
| Methodology | Reflectance photometer |
| Test Time | 2 minutes per test |
| Sample Types | Whole blood (capillary, venous), serum, plasma |
| Sample Volume | 25 µL (lipid panel), 10 µL (individual tests) |
| Test Items | TC, TG, HDL, LDL (calculated), TC/HDL ratio (calculated) |
| TC Range | 100-500 mg/dL (2.59-12.93 mmol/L) |
| HDL Range | 15-120 mg/dL (0.39-3.10 mmol/L) |
| TG Range | 45-650 mg/dL (0.51-7.34 mmol/L) |
| Units | mg/dL, mmol/L |
| Memory | 200 records with date/time |
| Connectivity | Mini USB |
| Test Device Storage | 2-30°C (no cold chain required) |
| Test Device Shelf Life | 18 months |
| Intended Use | In vitro diagnostic, professional use only |
- Quantitative lipid panel results in just 2 minutes
- Portable handheld design for point-of-care testing
- Small blood volume: 25 µL for panel, 10 µL for individual tests
- Comprehensive lipid panel: TC, TG, HDL, LDL, TC/HDL ratio
- Flexible testing: individual tests or 3-1 lipid panel configuration
- Accepts whole blood (capillary and venous), serum, and plasma
- No cold chain required — test device storage at 2-30°C
- 200-record memory with date/time and Mini USB connectivity
- Simple 3-step operation: collect, apply, insert
Handheld POCT Dry Chemistry Analyzers
Handheld dry chemistry analyzers bring laboratory-grade testing to the point of care. These portable devices use dry reagent strips or slides to analyze blood chemistry without liquid reagents, centrifugation, or complex equipment. They deliver rapid, quantitative results with minimal sample volume — ideal for bedside testing, community clinics, and field diagnostics.
15. GHM-100 Handheld Dry Chemistry Analyzer
Price: $260.00
Style: Handheld POCT • Model: GHM-100
| Specification | Details |
|---|---|
| Price | $260.00 |
| Type | Handheld dry chemistry analyzer |
| Reagent Format | Dry reagent strips/slides |
| Sample Type | Fingernail blood (capillary) |
| Detection Capability | Diabetes, nephropathy, liver disease, coronary heart disease, etc. |
| Shipping | Free worldwide shipping included |
- Most affordable analyzer in the collection at $260.00
- Handheld portable design for point-of-care and bedside testing
- Dry reagent technology — no liquid reagents or centrifugation needed
- Rapid quantitative results with minimal sample volume
- Suitable for diabetes, nephropathy, liver disease, and cardiac screening
- Free worldwide shipping included in price
16. Handheld Dry Chemistry Analyzer (GHM030436)
Price: $404.25 $481.95 (Sale)
Model: GHM030436 • Style: Handheld POCT
| Specification | Details |
|---|---|
| Price | $404.25 (Sale, was $481.95) |
| Model | GHM030436 |
| Sample Volume | 20-40 µL fingernail blood |
| Result Time | 2-4 minutes |
| Accuracy | Relative Deviation (RD) ≤10% |
| Precision | Coefficient of Variance (CV) ≤5.0% |
| Linearity | Correlation coefficient (r²) ≥0.980 |
| Connectivity | Bluetooth enabled |
| Detection Capability | Diabetes, nephropathy, liver disease, coronary heart disease, etc. |
- Bluetooth-enabled for wireless data transfer
- 20-40 µL sample volume from fingernail blood
- Rapid results within 2-4 minutes
- High accuracy: RD ≤10%, CV ≤5.0%, r² ≥0.980
- Detects diabetes, nephropathy, liver disease, coronary heart disease
- Sale price of $404.25 (regular $481.95)
- Portable handheld format for on-site and bedside testing
Buying Guide: How to Choose the Right Chemistry Analyzer
By Laboratory Throughput & Size
| Lab Type | Daily Test Volume | Recommended Throughput | Recommended Models |
|---|---|---|---|
| Small Clinic / POCT | <50 tests/day | Manual / 2-min POCT | GHM-100 ($260), Handheld Dry Chemistry ($404), GHM Lipid US |
| Small Laboratory | 50-200 tests/day | 120-240 T/H | Chemray 120 (120 T/H), Chemray 240 (240 T/H), RT-1904C (semi-auto) |
| Medium Hospital Lab | 200-500 tests/day | 300-560 T/H | GHM-BC3000 (300 T/H), Chemray 330 (360 T/H), Chemray 380/420 (560 T/H) |
| Large Hospital / Reference Lab | 500-2000 tests/day | 800+ T/H | Chemray 800 (800-1200 T/H), Biossays C8 (1600-6400 T/H) |
| Coagulation / Hemostasis Center | Specialized | 320 T/H coagulation | RAC-1800 (triple detection: clotting, chromogenic, immunologic) |
| Cardiac Risk Assessment | Lipid panel focus | 2-minute POCT | GHM Lipid US (TC, TG, HDL, LDL, TC/HDL ratio) |
By Key Features Needed
| Feature Needed | Recommended Models | Why |
|---|---|---|
| ISE Module (Electrolytes) | Biossays C8, Chemray 800/420/380/240/120 | K+, Na+, Cl- analysis; adds 300-400 T/H |
| LIS Connectivity | All fully auto + RT-1904C, RT-9200 | Bi-directional HL7 data exchange |
| STAT Emergency Testing | All fully auto, RAC-1800, RT-1904C, RT-9600 | STAT priority with random access |
| 24-Hour Refrigerated Storage | Chemray 800/420/380/330/240 | Non-stop reagent cooling for continuous operation |
| Veterinary Application | Chemray 120 (Vet version), RT-1904CV, RT-9600, RT-9700, RT-9200 | Animal-specific settings and test parameters |
| Modular Scalability | Biossays C8 | 1-4 modules, 1,600-6,400 T/H, MAGLUMI X8 integration |
| TLA/LAS Integration | Biossays C8 | Connects to total laboratory automation systems |
| Immunoturbidimetric Testing | RT-9600, RT-9700 | Immunoassay applications on semi-auto platform |
| Coagulation Testing | RAC-1800 | PT, APTT, TT, FIB, D-Dimer, FDP,凝血因子 |
| Portable POCT | GHM-100, Handheld Dry Chemistry, GHM Lipid US | Bedside testing, no lab equipment needed |
By Budget & Price Range
| Price Range | Category | Recommended Models |
|---|---|---|
| $260 | Handheld POCT | GHM-100 Handheld Dry Chemistry Analyzer |
| $404 (Sale) | Handheld POCT with Bluetooth | Handheld Dry Chemistry Analyzer (GHM030436) |
| Request a Quote | Semi-Automatic | RT-1904C, RT-9200, RT-9600, RT-9700 |
| Request a Quote | Fully Automatic (Compact) | Chemray 120 (120 T/H), Chemray 240 (240 T/H) |
| Request a Quote | Fully Automatic (Mid-Range) | GHM-BC3000 (300 T/H), Chemray 330 (360 T/H), Chemray 380/420 (560 T/H) |
| Request a Quote | Fully Automatic (High-Throughput) | Chemray 800 (800-1200 T/H), Biossays C8 (1600-6400 T/H) |
| Request a Quote | Specialty | RAC-1800 Coagulation, GHM Lipid US |
Frequently Asked Questions
What is a clinical chemistry analyzer?
A clinical chemistry analyzer is a laboratory instrument that measures biochemical indicators in blood, urine, and other body fluids to help diagnose diseases, evaluate organ function, and monitor treatment. Analyzers range from compact semi-automatic models to fully automated high-throughput systems processing thousands of tests per hour.
What is the difference between fully automatic and semi-automatic chemistry analyzers?
Fully automatic analyzers handle sample aspiration, reagent dispensing, mixing, incubation, measurement, and washing without operator intervention. They support random access, STAT priority, and high throughput (120-6,400 tests/hour). Semi-automatic analyzers require manual sample and reagent handling but offer lower cost, compact size, and flexible open reagent systems — ideal for small to medium labs.
What throughput range is available in this clinical chemistry collection?
Throughput ranges from 120 tests/hour (Chemray 120 compact bench-top) to 6,400 tests/hour (Biossays C8 with 4 modules). Mid-range options include 240 T/H (Chemray 240), 300 T/H (GHM-BC3000), 360 T/H (Chemray 330), 560 T/H (Chemray 380 and 420), and 800 T/H (Chemray 800). ISE modules can add 300-400 T/H for electrolyte analysis.
Do these chemistry analyzers support LIS connectivity?
Yes. All fully automatic models (Biossays C8, GHM-BC3000, Chemray 800/420/380/330/240/120) and semi-automatic models (RT-1904C, RT-9200) support bi-directional LIS communication for seamless data exchange with hospital information systems. Semi-auto models RT-9600 and RT-9700 feature USB data transfer.
What is an ISE module and which analyzers support it?
An ISE (Ion-Selective Electrode) module measures electrolytes including potassium (K+), sodium (Na+), and chloride (Cl-). It is optional on the Chemray 120, 240, 330, 380, 420, 800, and Biossays C8. Adding an ISE module increases throughput by 300-400 tests/hour for electrolyte analysis.
Are these chemistry analyzers suitable for veterinary use?
Yes. The Chemray 120 has a dedicated veterinary version (Chemray-120Vet) with 8 preset animal settings and unlimited user-defined settings. The RT-1904C has a veterinary version (RT-1904CV) supporting 12 animal types. The RT-9600, RT-9700, and RT-9200 are also suitable for veterinary applications.
What is the price range of these clinical chemistry analyzers?
Handheld POCT devices start at $260 (GHM-100) and $404.25 (Handheld Dry Chemistry Analyzer). Most fully automatic and semi-automatic systems require a custom quote based on configuration, modules, and institutional needs. Contact Global Healthcare Medical for detailed pricing.
What sample types do these analyzers support?
All analyzers support serum, plasma, urine, and cerebrospinal fluid samples. The Biossays C8 also supports additional body fluids. The GHM Lipid US accepts whole blood (capillary and venous), serum, and plasma. Handheld dry chemistry analyzers use finger-prick blood samples of 20-40 microliters.
Ready to Equip Your Laboratory?
Explore all 16 clinical chemistry analyzers with full specifications, real product images, and current pricing at the Global Healthcare Medical Clinical Chemistry collection.
