Complete Guide to Veterinary Anesthesia Machines: Choosing the Right System for Your Animal Practice
Understanding Veterinary Anesthesia Machines
A veterinary anesthesia machine is a life-support system that delivers controlled amounts of anesthetic agents and oxygen to animal patients during surgical procedures. Unlike human anesthesia equipment, veterinary systems must accommodate an extraordinary range of patient sizes — from 200-gram kittens to 1,800-kilogram horses — requiring flexible tidal volume delivery, adaptable breathing circuits, and versatile ventilation modes.
Key Components of a Veterinary Anesthesia System
- Vaporizer: Delivers precise concentrations of volatile anesthetic agents (isoflurane, sevoflurane, or halothane) into the breathing circuit.
- Flowmeter: Controls and displays the flow rate of carrier gases (oxygen, nitrous oxide, or medical air).
- Breathing Circuit: The closed or semi-closed system that transports anesthetic gases between the machine and the patient. Includes CO₂ absorbent canister to remove exhaled carbon dioxide.
- Ventilator: Provides mechanical ventilation when the patient cannot breathe independently, with adjustable tidal volume, respiratory rate, and pressure limits.
- APL Valve (Adjustable Pressure Limiting): Prevents excessive airway pressure during manual ventilation.
- Scavenging System: Removes waste anesthetic gases from the operating area to protect veterinary staff.
- Monitoring Display: Shows real-time ventilation parameters, waveforms, and alarm status.
Types of Anesthesia Systems
Veterinary anesthesia machines fall into several categories based on their driving mechanism and complexity:
- Electric Turbine-Driven: Uses a built-in electric turbine to drive ventilation — no external driving gas required. Reduces operating costs and increases placement flexibility.
- Pneumatically Driven, Electronically Controlled: Uses compressed gas to drive the bellows while electronic controls manage ventilation parameters. Offers precise control with proven reliability.
- Traditional Mechanical: Simpler systems with mechanical flowmeters and basic ventilation modes. Cost-effective for routine procedures.
Global Healthcare Medical Veterinary Anesthesia Machine Lineup
Global Healthcare Medical offers 13 products in its veterinary anesthesia and ventilator collection. Below is a detailed examination of six core models, ordered by price from entry-level to large-animal systems.

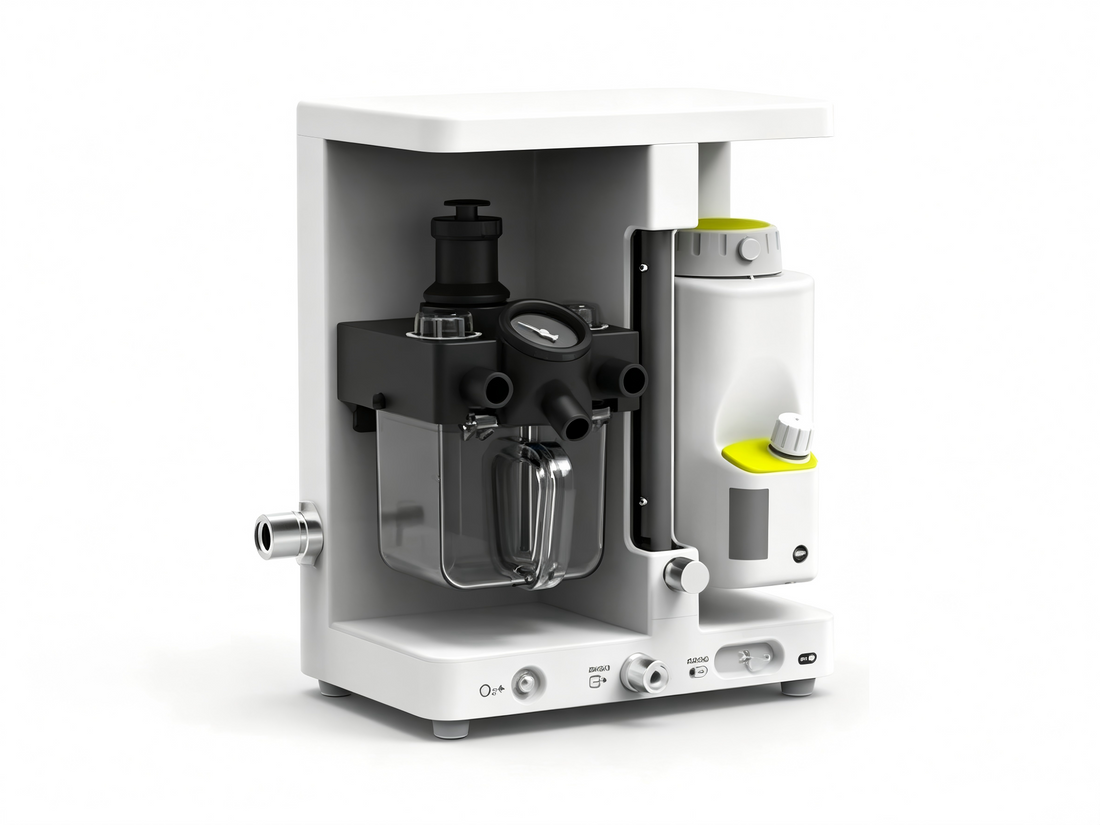

1. GHM V3 Veterinary Anesthesia Machine
Price: $2,600.00
The GHM V3 is a next-generation, electric-driven veterinary anesthesia workstation designed for modern clinics — from small exotics to large patients. Its built-in turbine eliminates the need for costly driving gas, while the Veterinary Autopilot (AVS) mode automatically adjusts ventilation parameters based on real-time feedback, reducing workflow complexity by up to 28%. With an ultra-low tidal volume of 2 ml, it safely anesthetizes neonates, exotic species, and birds.
Key Specifications:
- Working Principle: Electric driven & turbine
- Animal Weight Range: 0.2 – 150 kg
- Tidal Volume: 2 – 1600 ml
- Frequency: 2 – 100 bpm
- Ventilation Modes: AVS, VS, VCV, PCV, PRVC
- PEEP: OFF / 3 – 30 cmH₂O
- Display: 10.1" LCD touchscreen (1024×600)
- Dimensions: 287 × 271 × 235 mm, 11 kg
- Key Feature: No external driving gas required
- Monitoring: Plug-in modules for anesthetic gases, EtCO₂, SpO₂
- Special: Remote inspiratory hold for CT/MRI procedures
2. GHM V5 Veterinary Anesthesia System
Price: $5,600.00
The GHM V5 is a streamlined, touchscreen-driven anesthesia workstation designed for daily clinical use. With a foldable 10.2" color display, one-touch ventilation mode switching, and an integrated circuit design that reduces leak risks, it delivers safe, precise anesthesia for patients from small exotics to large dogs. The integrated oxygen generator interface allows use without piped gas or frequent cylinder refills.
Key Specifications:
- Animal Weight Range: Small exotics to large dogs
- Minimum Tidal Volume: 2 ml
- Display: 10.2" foldable color touchscreen
- Flowmeter: Oxygen, 0–4 L
- CO₂ Absorbent Canister: 800 ml (1500 ml optional)
- APL Valve: 0 – 70 cm H₂O, one-touch closure
- Vaporizer: Isoflurane, Sevoflurane, Halothane
- ACGO Mode: Integrated (reduces cross-infection)
- Circuit Heating: Yes (prevents condensation)
- Weight (main unit): 9 kg
- Installation: Tabletop, wall-mount, or trolley
- Optional Modules: Anesthetic gases, EtCO₂, SpO₂
3. GHM DM6B Veterinary Anesthesia Machine
Price: $7,199.00
The GHM DM6B is a practical, no-compromise veterinary anesthesia workstation designed for small to medium-sized animal clinics. With a clear 7" LCD screen, mechanical flow meter, and built-in backup battery, it delivers dependable anesthesia for routine surgeries without unnecessary complexity. The mechanical flow meter means lower maintenance and fewer repairs — ideal for busy clinics that value reliability.
Key Specifications:
- Animal Suitability: Small cats to large dogs
- Tidal Volume: 20 – 1500 ml (with 0 ml standby)
- Display: 7" colorful LCD
- Flow Meter: Mechanical (rugged, classic design)
- Gas Source: Single (O₂)
- Ventilation Modes: IPPV, A/C, SIMV, MANUAL
- PEEP: 0 – 30 cmH₂O
- Frequency: 1 – 100 bpm
- I:E Ratio: 2:1 – 1:6
- Alarms: 12 kinds (pressure, apnea, disconnection, power failure)
- Backup Battery: Built-in
- Graphical Display: P-T and F-T waveforms
4. GHM X35Vet Veterinary Anesthesia Machine
Price: $13,599.00
The GHM X35Vet combines electronically controlled precision with pneumatically driven durability, delivering stable ventilation across a wide range of veterinary cases. With tidal volume from 10 to 1600 mL, it accommodates everything from feline patients to large canine and equine procedures. The automatic fresh gas compensation continuously adjusts flow to match patient demand, while the 10.2" touchscreen displays real-time lung mechanics and pressure-volume loops.
Key Specifications:
- Control Type: Electronically controlled, pneumatically driven
- Tidal Volume: 10 – 1600 mL
- Display: 10.2" color TFT touchscreen
- Ventilation Modes: VCV, PCV, SIMV-V, SIMV-P, SPONT/PSV (optional: PRVC, SIMV-PRVC)
- PEEP: Electronic, adjustable
- Fresh Gas Compensation: Automatic
- Gas Supply: O₂ + N₂O or O₂ + Air
- Flowmeter: 4 tubes with hypoxic guard
- Vaporizer Positions: 2 (with interlock mechanism)
- Circuit: Integrated with CO₂ bypass
- Non-Rebreathing: Independent ACGO outlet (for patients under 7 kg)
- Trend Display: 24-hour
5. GHM DM6A Veterinary Anesthesia Machine
Price: $15,600.00
The GHM DM6A is a premium veterinary anesthesia workstation featuring integrated capnography (EtCO₂) as standard — no costly add-on module required. With a 10.4" touchscreen, electronic flow meter, and 14 kinds of alarms and protections, it delivers precise, safe anesthesia for dogs, cats, and other medium-sized animals. The comprehensive graphical display shows pressure-volume loops and EtCO₂-time curves for advanced respiratory mechanics analysis.
Key Specifications:
- Animal Suitability: Small to large dogs and cats
- Tidal Volume: 20 – 1500 ml (with 0 ml standby)
- Display: 10.4" colorful LCD touchscreen
- EtCO₂: Built-in (standard, no add-on needed)
- Flow Meter: Electronic (digital accuracy)
- Gas Source: Dual (O₂ & N₂O)
- Vaporizer: One standard (additional optional)
- Ventilation Modes: IPPV, A/C, PCV, SIMV, SIGH, MANUAL
- PEEP: 0 – 30 cmH₂O
- Frequency: 1 – 100 bpm
- Graphical Display: P-T, F-T, V-T, P-V loops, EtCO₂ curves
- Alarms: 14 kinds (pressure, apnea, disconnection, O₂ failure, more)
- Backup Battery: Built-in
6. GHM M800 Equine Anesthesia Machine
Price: $53,000.00
The GHM M800 is a large-animal anesthesia system designed for equine and mixed-animal practices. Its electrically driven ventilator eliminates the need for separate driving gas, while the 15.6-inch HD touchscreen displays all critical parameters and waveforms at a glance. With a tidal volume range of 50 mL to 19 L and patient weight capacity from 5 to 1,800 kg, this single machine handles everything from foals to full-grown horses.
Key Specifications:
- Animal Weight Range: 5 – 1,800 kg (foal to full-grown horse)
- Tidal Volume: 50 mL – 19 L
- Max Inspiratory Flow: 1,000 L/min
- Display: 15.6" HD touchscreen (1920×1080)
- Driving Mechanism: Electrically driven (no driving gas required)
- Ventilation Modes: VCV, PCV, VS, AVS, PRVC, SIMV options (10 total)
- Gas Options: O₂/Air or O₂/N₂O flowmeters
- Vaporizer Positions: 2 (simultaneous mounting)
- Cylinder Yokes: 2 standard
- Oxygen Sensor: Included
- Optional Monitoring: Mainstream EtCO₂, anesthetic gas, sidestream EtCO₂
- Work Surface: Anesthetic-resistant
How to Choose the Right Veterinary Anesthesia Machine
Match Patient Size Range to Your Caseload
The most critical factor in selecting an anesthesia machine is matching the tidal volume range to your typical patient sizes. A clinic treating only cats and small dogs (under 10 kg) needs a machine capable of delivering 2-5 ml tidal volumes with precision. A mixed-animal practice treating everything from kittens to large dogs requires a wider range (2-1600 ml). An equine practice needs a machine designed for tidal volumes of 50 ml to 19 L.
|
Practice Type |
Patient Weight Range |
Required Tidal Volume |
Recommended Model |
|
Exotic / Small Animal Only |
0.2 – 20 kg |
2 – 300 ml |
GHM V3 or GHM V5 |
|
Small Animal General Practice |
2 – 50 kg |
20 – 1500 ml |
GHM DM6B or GHM V5 Plus |
|
Referral / Specialty Hospital |
0.2 – 150 kg |
2 – 1600 ml |
GHM V3 or GHM X35Vet |
|
Emergency / Critical Care |
0.2 – 150 kg |
2 – 1600 ml + EtCO₂ |
GHM DM6A or GHM X55Vet |
|
Equine / Large Animal |
5 – 1,800 kg |
50 ml – 19 L |
GHM M800 |
Ventilation Modes: What You Need vs. What You Want
Basic practices typically need IPPV (Intermittent Positive Pressure Ventilation) and MANUAL modes. Specialty and emergency practices benefit from PCV (Pressure Control Ventilation), VCV (Volume Control Ventilation), and PRVC (Pressure Regulated Volume Control). The GHM V3's AVS (Veterinary Autopilot) mode is particularly valuable for practices that want automated ventilation parameter adjustment based on patient weight and real-time feedback.
Monitoring Capabilities
Built-in monitoring reduces cost and complexity compared to add-on modules. The GHM DM6A includes EtCO₂ (capnography) as standard — a critical safety feature for prolonged procedures. The GHM X35Vet and X55Vet offer optional modules for anesthetic gas monitoring, SpO₂, and paramagnetic O₂. Consider whether your practice requires real-time agent concentration monitoring or whether basic pressure and flow waveforms suffice.
Budget and Total Cost of Ownership
Look beyond the purchase price. Electric turbine-driven machines like the GHM V3 eliminate ongoing driving gas costs. Machines with mechanical flow meters (GHM DM6B) have lower maintenance costs than electronic flow meters. Consider warranty coverage — Global Healthcare Medical offers one-year warranties with lifetime maintenance on DM6-series machines. All products include free worldwide shipping.
Additional Equipment: Ventilators & Oxygen Concentrators
Beyond the six core models above, the Global Healthcare Medical collection includes several complementary products:
- GHM V5 Plus Veterinary Anesthesia System — $6,600 — Upgraded V5 with adjustable PEEP (3–30 cmH₂O), dual inspiratory/expiratory flow sensors, and automatic weight-based parameter setting. Animal weight range: 0.2–150 kg. Tidal volume: 2–1600 ml.
- GHM X55Vet Veterinary Anesthesia Machine — $19,000 — Hospital-grade workstation with 18.5" HD touchscreen, electronic flow mixer for low-flow anesthesia, PRVC and SIMV-PRVC modes, autoclavable circuit absorber, 72-hour trend storage, and optional HFNC support. Tidal volume: 5–1600 ml.
- GHM DH6B Veterinary Ventilator Machine — $4,400 — Dedicated ventilator for practices needing standalone respiratory support.
- GHM X8 Veterinary Anesthesia Ventilator — $2,800 — Compact, affordable ventilator for basic mechanical ventilation needs.
- GHM DM6C Veterinary Anesthesia Machine — $4,400 — Entry-level DM6 series with essential features for routine procedures.
- GHM-21VET Veterinary Oxygen Concentrator — Contact for Price — 5L/min medical oxygen device for animal care. Pairs with GHM V5/V5 Plus oxygen generator interface for clinics without piped gas.
Maintenance & Safety Best Practices
- Daily checks: Verify circuit integrity, test alarms, and confirm oxygen supply pressure before each procedure.
- CO₂ absorbent: Replace soda lime when color change indicates exhaustion. The GHM V5 and V5 Plus feature one-touch canister installation. The GHM X35Vet's CO₂ bypass allows canister changes without disconnecting the patient.
- Vaporizer calibration: Have vaporizers professionally calibrated annually to ensure accurate agent delivery.
- Leak testing: Perform circuit leak tests before each anesthetic episode. The GHM V5's integrated circuit design minimizes leak points.
- Scavenging system: Replace scavenging canisters per the replacement reminder (available on GHM V5 and V5 Plus) to protect staff from waste anesthetic gases.
- Backup power: Test backup batteries regularly. The GHM DM6A, DM6B, and X55Vet include built-in batteries for uninterrupted operation during power outages.
- Cleaning: Autoclavable components (available on GHM X55Vet) support rigorous infection control in high-volume practices.
Frequently Asked Questions
What is the difference between electric turbine-driven and pneumatically driven anesthesia machines?
Electric turbine-driven machines (like the GHM V3) use a built-in electric turbine to power ventilation, eliminating the need for external compressed driving gas. This reduces operating costs and allows placement flexibility. Pneumatically driven machines (like the GHM X35Vet) use compressed gas to drive the bellows while electronic controls manage parameters — offering proven reliability with precise control. Turbine-driven systems are newer technology with lower long-term consumable costs.
What tidal volume range do I need for my veterinary practice?
Tidal volume requirements depend on your patient size range. For exotic animals and neonates (under 1 kg), you need a minimum tidal volume of 2 ml. For small animal general practice (cats and dogs 2–50 kg), a range of 20–1500 ml is sufficient. For equine practice (horses 50–1800 kg), you need 50 ml to 19 L. The GHM V3 offers the widest range (2–1600 ml) for its price point, while the GHM M800 covers the equine range (50 ml – 19 L).
Do Global Healthcare Medical anesthesia machines include vaporizers?
The GHM DM6A includes one high-quality vaporizer as standard. The GHM V5, V5 Plus, and M5 support isoflurane, sevoflurane, and halothane vaporizers (sold separately or as part of configured packages). The GHM X35Vet offers dual vaporizer positions with an interlock mechanism, allowing rapid switching between agents. Contact Global Healthcare Medical for specific vaporizer inclusion details per model.
Which anesthesia machine is suitable for equine surgery?
The GHM M800 Equine Anesthesia Machine is specifically designed for large animal practice, with a patient weight range of 5–1,800 kg, tidal volume of 50 mL to 19 L, and maximum inspiratory flow of 1,000 L/min. Its electrically driven ventilator eliminates the need for separate driving gas — a significant advantage over traditional equine machines. The 15.6" HD touchscreen provides clear visibility of all parameters during long equine procedures.
What is the AVS (Veterinary Autopilot) mode on the GHM V3?
AVS (Automatic Ventilation System) is an intelligent mode available on the GHM V3 that automatically adjusts ventilation parameters based on real-time feedback from the patient. With one-touch activation, it reduces workflow complexity by up to 28%. Simply enter the animal's weight (0.2–150 kg), and the system recommends optimal ventilation settings, then continuously adjusts them during the procedure.
Do these anesthesia machines come with a warranty?
Global Healthcare Medical provides a one-year warranty with lifetime maintenance on DM6-series machines (DM6A, DM6B, DM6C). All products include free worldwide shipping with shipping included in the displayed price. Contact Global Healthcare Medical directly for specific warranty terms on other models.
Can I use an oxygen concentrator instead of piped gas or cylinders?
Yes. The GHM V5 and V5 Plus feature an integrated oxygen generator interface, allowing connection to an external oxygen concentrator like the GHM-21VET (5L/min). This is particularly valuable for clinics without piped gas infrastructure or those seeking to reduce cylinder refill frequency and costs.
Equip Your Practice with the Right Anesthesia System
From the $2,600 GHM V3 with its electric turbine and Veterinary Autopilot mode, to the $53,000 GHM M800 designed for equine surgery, Global Healthcare Medical offers a veterinary anesthesia machine for every practice type and budget. With 13 products in the collection — including dedicated ventilators and oxygen concentrators — you can build a complete anesthesia infrastructure tailored to your clinical needs. Explore the full collection today and find the system that matches your patients, your workflow, and your budget.
All prices include free worldwide shipping. Products are manufactured to medical-grade quality standards. Contact Global Healthcare Medical for configuration details, accessory inclusion, and current availability before ordering.
